AMF AMF extension nut no. 6334 M12 width across flats 19 mm ( 4000833425 )
Sat, 09/20/2025
Scope of Delivery: - Extension nut no. 6334 M12 width across flats 19 mm Product Description: hardened and tempered - strength class 10 - Application: The extension nut serves as any connecting element between DIN 787 (screw for T-slot) and DIN 6379 (stud bolt) and cannot be screwed through. For functional and safety reasons, both screws should be screwed in at half the height of the nut. Minimum screw-in length = 1x diameter For this article, the spanner width is according to the old DIN standard Technical Data: - Width across flats: 19mmFor commercial use, please observe the building regulations!
€10,87
-
AMF AMF extension nut no. 6334 M16 spanner width 24 mm ( 4000833428 )
Sat, 09/20/2025
Scope of Delivery: - Extension nut no. 6334 M16 Width across flats 24 mm Product Description: hardened and tempered - strength class 10 - Application: The extension nut serves as any connecting element between DIN 787 (screw for T-slot) and DIN 6379 (stud bolt) and cannot be screwed through. For functional and safety reasons, both screws should be screwed in at half the height of the nut. Minimum screw-in length = 1x diameter Technical Data: - Width across flats: 24mmFor commercial use, please observe the building regulations!
€12,83
-
AMF AMF extension nut no. 6334 M20 width across flats 30 mm ( 4000833430 )
Sat, 09/20/2025
Scope of Delivery: - Extension nut no. 6334 M20 Width across flats 30 mm Product Description: hardened and tempered - strength class 10 - Application: The extension nut serves as any connecting element between DIN 787 (screw for T-slot) and DIN 6379 (stud bolt) and cannot be screwed through. For functional and safety reasons, both screws should be screwed in at half the height of the nut. Minimum screw-in length = 1x diameter Technical Data: - Width across flats: 30mmFor commercial use, please observe the building regulations!
€16,74
-
AMF AMF extension nut no. 6334 M24 spanner width 36 mm ( 4000833433 )
Sat, 09/20/2025
Scope of Delivery: - Extension nut no. 6334 M24 Width across flats 36 mm Product Description: hardened and tempered - strength class 10 - Application: The extension nut serves as any connecting element between DIN 787 (screw for T-slot) and DIN 6379 (stud bolt) and cannot be screwed through. For functional and safety reasons, both screws should be screwed in at half the height of the nut. Minimum screw-in length = 1x diameter Technical Data: - Width across flats: 36mmFor commercial use, please observe the building regulations!
€22,31
-
AMF AMF Locking clamp no. 6847 ( 4000833522 ) size 5
Scope of Delivery: - 1x AMF Locking clamp size 5 Product Description: galvanised - passivated Technical Data: - S: 147mm - B1: 26-40mm - C: 29mm - B2: 57-71mm - E2: 58-73mm - D: 10,75mm - E1: 27-42mm - G: 11.2mm - L1: 189.5mm - H1: 69mm - H2: 282mm - Arm length: 189.5mm - L: 55mm - Bore Ø: 11.2mm - K: 13mm - R: 8mm - M: 55.5-63mm - H: 49mm - N: 85mm - Size: 5 - Tensile force: 5 kN - Adjustment range: 14 mm - Bore distance inside: 27-42 / 58-73 mm - Height clamped: 69 mm - Height open: 282 mm - Counterholder height: 49 mm - Brand: AMF - Material: galvanised - Design: horizontal - Span: 26-40 / 57-71 mmFor commercial use, please observe the building regulations!For commercial use, please observe the building regulations!
-

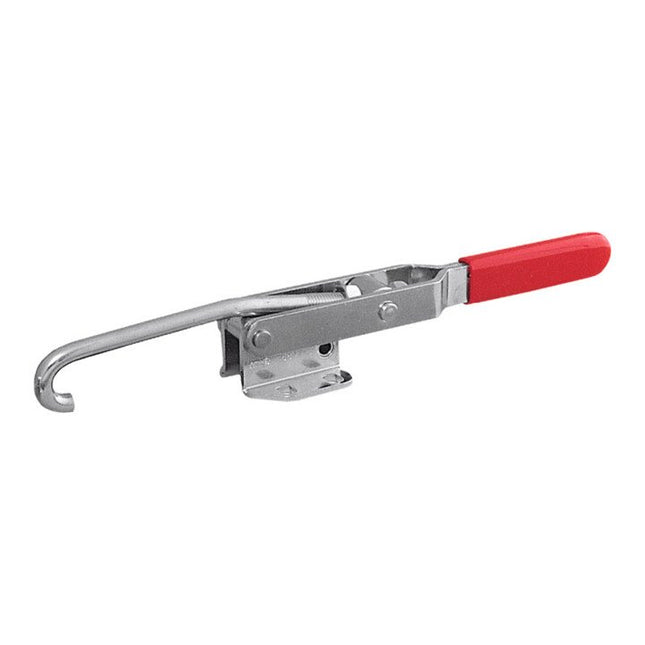

AMF AMF Locking clamp no. 6847 size 3 ( 4000833521 )
Sat, 09/20/2025
Scope of Delivery: - Locking clamp no. 6847 size 3 Product Description: galvanised - passivated Technical Data: - S: 98mm - B1: 32-44mm - C: 19mm - B2: 65-77mm - E2: 72-84mm - D: 7.1mm - E1: 39-51mm - G: 5.5mm - L1: 123.5mm - H1: 36mm - H2: 181mm - Arm length: 123.5mm - L: 40mm - Bore Ø: 5.5mm - K: 13mm - R: 5.5mm - M: 31.5-35.5mm - H: 22.7mm - N: 45mmFor commercial use, please observe the building regulations!
€48,30
-
AMF AMF Locking clamp no. 6848H size 2 ( 4123682200 )
Sat, 09/20/2025
Scope of Delivery: - Locking clamp no. 6848H size 2 - Delivery incl. counterholder Product Description: horizontal Technical Data: - L5: 69mm - C: 13mm - D: 5.2mm - E max: 72mm - L1: 125-159mm - E min: 38mm - H1: 47mm - H2: 99mm - Arm length: 69mm - B max.: 76mm - Bore Ø: 5.2mm - F: 11mm - B min.: 42mm - P: 26mm - K: 6.4mm - M: 19.5-23.5mm - H: 12mm - N: 38mm - D1: 4mmFor commercial use, please observe the building regulations!
€37,25
-
AMF AMF Locking clamp no. 6848H size 3 ( 4123682300 )
Sat, 09/20/2025
Scope of Delivery: - Locking clamp no. 6848H size 3 - Delivery incl. counterholder Product Description: horizontal Technical Data: - L5: 93mm - C: 19mm - D: 6.5mm - E max: 96mm - L1: 169-216mm - E min: 48.6mm - H1: 70mm - H2: 135.5mm - Arm length: 93mm - B max.: 101mm - Bore Ø: 6.5mm - F: 14mm - B min.: 53.5mm - P: 35mm - K: 8.0mm - M: 24.5-32.0mm - H: 19mm - N: 48mm - D1: 6mmFor commercial use, please observe the building regulations!
€52,07
-
AMF AMF Locking clamp no. 6848H size 4 ( 4123682400 )
Sat, 09/20/2025
Scope of Delivery: - Locking clamp no. 6848H size 4 - Delivery incl. counterholder Product Description: horizontal Technical Data: - L5: 111mm - C: 32mm - D: 8.5mm - E max: 123mm - L1: 209-273mm - E min: 59mm - H1: 94.5mm - H2: 171.5mm - Arm length: 111mm - B max.: 130mm - Bore Ø: 8.5mm - F: 19mm - B min: 66mm - P: 53.5mm - K: 9.5mm - M: 35.0-46.0mm - H: 26mm - N: 64.3mm - D1: 8mmFor commercial use, please observe the building regulations!
€85,28
-
AMF AMF Locking clamp no. 6848V size 2 ( 4123683200 )
Sat, 09/20/2025
Scope of Delivery: - Locking clamp no. 6848V size 2 - Delivery incl. counterholder Product Description: Vertical Technical Data: - C: 13mm - D: 5.2mm - E max: 30mm - G: 19mm - L1: 91mm - E min: 5mm - H1: 47mm - H2: 99mm - Arm length: 91 mm - B max.: 49mm - Bore Ø: 5.2mm - F: 11mm - B min.: 24mm - P: 26mm - K: 6.4mm - M: 19.5-23.5mm - H: 4.5mm - N: 38mm - D1: 4mmFor commercial use, please observe the building regulations!
€37,25
-
AMF AMF Locking clamp no. 6848V size 3 ( 4123683300 )
Scope of Delivery: - Locking clamp no. 6848V size 3 - Delivery incl. counterholder Product Description: Vertical Technical Data: - C: 19mm - D: 6.5mm - E max: 36mm - G: 25mm - L1: 125mm - E min: 7mm - H1: 70mm - H2: 136mm - Arm length: 125 mm - B max.: 64mm - Bore Ø: 6.5mm - F: 14mm - B min.: 34.5mm - P: 35mm - K: 8mm - M: 24.5-32.0mm - H: 6mm - N: 48mm - D1: 6mmFor commercial use, please observe the building regulations!
-
AMF AMF Verschlussspanner Nr. 6848V Größe 4 ( 4123683400 )
Lieferumfang:Verschlussspanner Nr. 6848V Größe 4Lieferung inkl. GegenhalterProduktbeschreibung:vertikal Technische Daten: C: 32mm D: 8,5mm E max.: 47mm G: 36mm L1: 151mm E min.: 9mm H1: 94,5mm H2: 168mm Armlänge: 151 mm B max.: 81mm Bohrungs-Ø: 8,5mm F: 19mm B min.: 43mm P: 53,5mm K: 9,5mm M: 35,0-46,0mm H: 8mm N: 64,5mm D1: 8mm
