AMF AMF extension nut no. 6334 M10 width across flats 16 mm ( 4000833422 )
Fri, 08/29/2025
Scope of Delivery: - Extension nut no. 6334 M10 width across flats 16 mm Product Description: hardened and tempered - strength class 10 - Application: The extension nut serves as any connecting element between DIN 787 (screw for T-slot) and DIN 6379 (stud bolt) and cannot be screwed through. For functional and safety reasons, both screws should be screwed in at half the height of the nut. Minimum screw-in length = 1x diameter Technical Data: - Width across flats: 16mmFor commercial use, please observe the building regulations!
€10,66
-
AMF AMF tapered socket DIN 6319G for screws M16 ( 4000833450 )
Fri, 08/29/2025
Scope of Delivery: - Tapered socket DIN 6319G for screws M16 Product Description: punched, pressed and tempered - the large diameter makes this tapered socket particularly suitable for clamping via the slot in clamping chucks - Application: Spherical discs and tapered sockets are used to transmit clamping forces in cases where clamping elements need to adapt to uneven clamping surfaces. The pairing of spherical discs or DIN 6330 nuts with tapered sockets enables the associated clamping bolt to be swivelled out by 3° Technical Data: - D4: 44mm - D2: 19mm - Taper angle: 120° - H3: 7mmFor commercial use, please observe the building regulations!
€11,37
-
AMF AMF tapered socket DIN 6319G for screws M12 ( 4000833448 )
Fri, 08/29/2025
Scope of Delivery: - Tapered socket DIN 6319G for screws M12 Product Description: punched, pressed and tempered - the large diameter makes this tapered socket particularly suitable for clamping via the slot in clamping chucks - Application: Spherical discs and tapered sockets are used to transmit clamping forces in cases where clamping elements need to adapt to uneven clamping surfaces. The pairing of spherical discs or DIN 6330 nuts with tapered sockets enables the associated clamping bolt to be swivelled out by 3° Technical Data: - D4: 36mm - D2: 14,2mm - Taper angle: 120° - H3: 6mmFor commercial use, please observe the building regulations!
€10,25
-
AMF AMF tapered socket DIN 6319D for screws M12 ( 4000833468 )
Fri, 08/29/2025
Scope of Delivery: - Tapered socket DIN 6319D for screws M12 Product Description: Form D - case-hardened and phosphatised - suitable for screw strength according to 8.8 - use only for flat, closed ring surfaces (not permitted for slotted holes, DIN 6319G is recommended for this) Technical Data: - D4: 24mm - D2: 14.2mm - Taper angle: 120° - Max. screw force: 38kN - H3: 5mmFor commercial use, please observe the building regulations!
€9,24
-

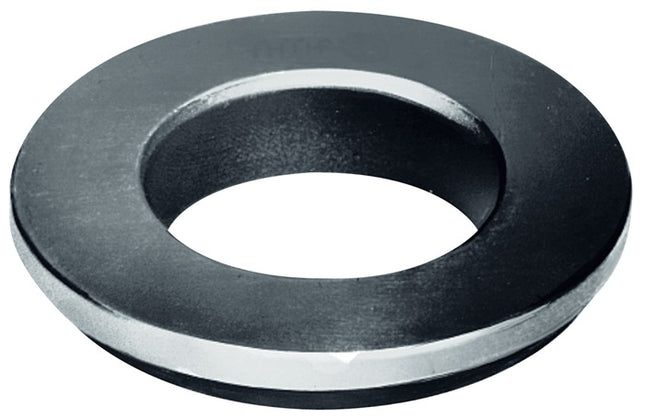

AMF AMF spherical washer DIN 6319C for screws M16 ( 4000833460 )
Fri, 08/29/2025
Scope of Delivery: - Spherical washer DIN 6319C for screws M16 Product Description: Form C - case-hardened and phosphatised Technical Data: - H2: 5.3mm - R: 22mm - D3: 30mm - D1: 17mmFor commercial use, please observe the building regulations!
€10,07
-
AMF AMF spherical washer DIN 6319C for screws M12 ( 4000833458 )
Fri, 08/29/2025
Scope of Delivery: - Spherical washer DIN 6319C for screws M12 Product Description: Form C - case-hardened and phosphatised Technical Data: - H2: 4.6mm - R: 17mm - D3: 24mm - D1: 13mmFor commercial use, please observe the building regulations!
€9,24
-
AMF AMF collet spanner ER no. 250 size ER 40 ( 4000832446 )
Fri, 08/29/2025
Scope of Delivery: - Collet spanner ER No. 250 Size ER 40 Product Description: For secure clamping of ER / ESX system clamping nuts to DIN 6499 made of special steel, hardened and galvanised - with suspension hole Technical Data: - nanFor commercial use, please observe the building regulations!
€45,70
-
AMF AMF collet spanner ER no. 250 size ER 32 ( 4000832445 )
Fri, 08/29/2025
Scope of Delivery: - Collet spanner ER No. 250 Size ER 32 Product Description: For secure clamping of ER / ESX system clamping nuts to DIN 6499 made of special steel, hardened and galvanised - with suspension hole Technical Data: - nanFor commercial use, please observe the building regulations!
€36,37
-
AMF AMF collet spanner ER no. 250 size ER 25 ( 4000832444 )
Fri, 08/29/2025
Scope of Delivery: - Collet spanner ER No. 250 Size ER 25 Product Description: For secure clamping of ER / ESX system clamping nuts to DIN 6499 made of special steel, hardened and galvanised - with suspension hole Technical Data: - nanFor commercial use, please observe the building regulations!
€28,33
-

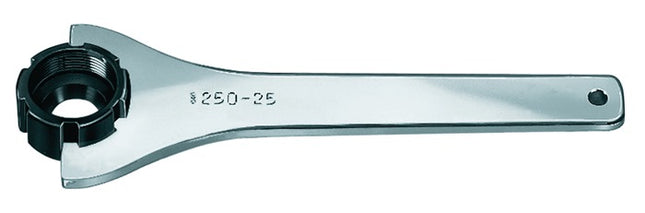

AMF AMF collet spanner ER no. 250 size ER 16 ( 4000832443 )
Fri, 08/29/2025
Scope of Delivery: - Collet spanner ER No. 250 Size ER 16 Product Description: For secure clamping of ER / ESX system clamping nuts to DIN 6499 made of special steel, hardened and galvanised - with suspension hole Technical Data: - nanFor commercial use, please observe the building regulations!
€25,70
-
STAHLWILLE STAHLWILLE Extension 509 1/2 ″ Length 75 mm ( 4000826422 )
Fri, 08/29/2025
Scope of Delivery: - Extension 509 1/2 ″ Length 75 mm Product Description: 12.5 mm (1/2") square drive - chrome-alloy steel - chrome-plated - DIN 3123/ISO 3316 Technical Data: - Surface: chrome-plated - Material: chrome-alloy steelFor commercial use, please observe the building regulations!
€23,26
-
STAHLWILLE STAHLWILLE Extension 509 1/2 ″ Length 250 mm ( 4000826424 )
Fri, 08/29/2025
Scope of Delivery: - Extension 509 1/2 ″ Length 250 mm Product Description: 12.5 mm (1/2") square drive - chrome-alloy steel - chrome-plated - DIN 3123/ISO 3316 Technical Data: - Surface: chrome-plated - Material: chrome-alloy steelFor commercial use, please observe the building regulations!
€29,03
