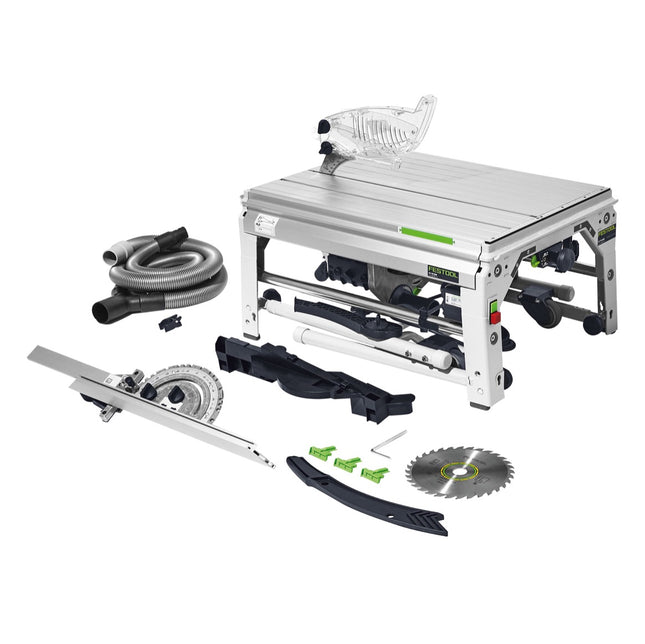

Contents of the package:
- 1x Trimming saw CS 70 EG PRECISIO 2100 W 225 mm

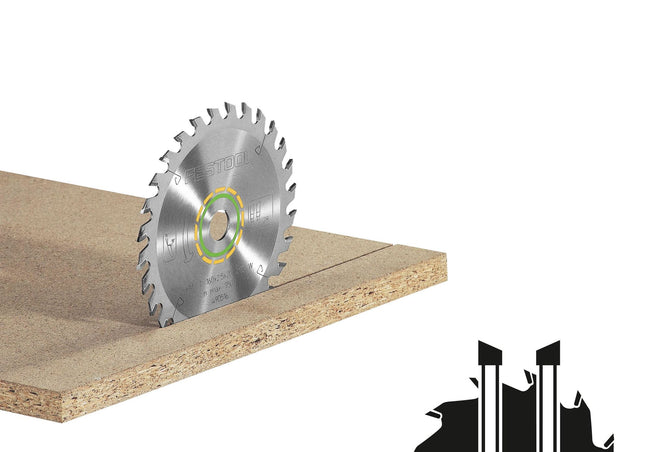

- 1x Universal saw blade W32 190 x 2,6 mm FF ( 492048 )
- 1x Extraction set ( 488292 )
- 3x Splinter guard

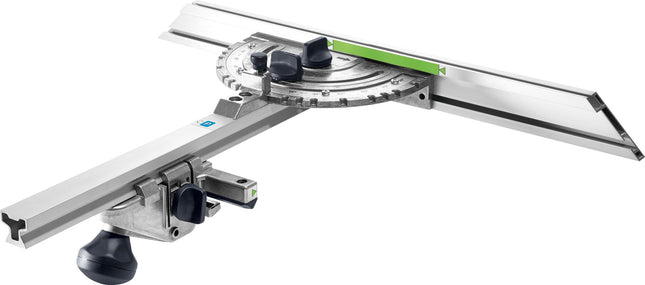

- 1x Angle stop
- 1x Support with transport roller
- 1x Push stick
- 1x Garage accessories
- 1x Allen key SW 6
- 1x instruction manual
Description of the product:
The CS 70 EG PRECISIO trimming saw from Festool is a true all-rounder for interior fittings, furniture construction and trade fair construction. The cutting height is 70 mm and thus ensures even more application versatility. Cross-cuts up to 320 mm wide and rip cuts up to a cutting height of 70 mm succeed perfectly. Thanks to the tiltable saw blade, angle cuts from -2° to +45° are possible. With its 2200 watts, the circular saw achieves cutting performance at the highest level, even with harder materials. The dust-enclosed motor prevents the machine from being destroyed by aluminium chips, for example. In addition, the splinter protection provides even more safety. The low weight and the clever functions make the saw an assembly miracle. The PRECISIO has a multifunction handle with controls for switching on and off, the speed setting, short actuation, quick stop and the pull mechanism. The handle is ergonomically designed so that longer work is user-friendly and easy on the joints. Quick changeover from longitudinal to cross cuts is no problem thanks to the angle stop. The CLEANTEC connection system provides a secure hold for the suction hose from the extraction set and is compatible with all Sandard extraction mobiles from Festool, ensuring dust-free working. The sophisticated MMC ( Multi-Material-Control) Electronic guarantees safe and material-appropriate working due to the adjustable and constant speed as well as temperature monitoring. The groove in the saw table offers secure fixing of the workpieces, so slipping is no longer possible. The FastFix function enables the saw blade to be changed quickly and easily. The quick brake ensures safe working when planing, sawing and routing. The attachment system offers increased width and length for processing large workpieces. Thanks to the transport rollers with anti-kink protection, the PRECISIO is mobile and flexible in use. In the integrated accessory garage, the protective bonnet, angular stop and push stick are always within reach.
Technical specifications:
Power input: 2100 W
Idle speed: 2000 - 4200 min
Saw blade - Ø: 225.00 mm
Cutting height 90°/45°: 0 - 70 / 0 - 48 mm
Inclination: 0 ( -2 )° - 45 ( +47 )°
Draw path: 320.00 mm
Table dimensions: 690 x 500 mm
Table height folded in: 375.00 mm
Table height folded out: 900,00 mm
Dust extraction connection Ø: 27 / 36 mm
Weight: 37,00 Kg
Idling A-weighted sound power level Lw: 91.00 dB (A)
Idling Normal series EN 60745: 61029-2-1
Idling Uncertainty ( vibration ) K: 1,50 m/s²
Idling A-weighted sound pressure level Lp: 78.00 dB (A)
Idling Total average vibration ah: 2.50 m/s²
No-load uncertainty ( noise ) K: 3.00 dB
Saws Total average vibration value ah: 2.50 m/s²
Saws standard series EN 60745: 61029-2-1
Sawing Uncertainty (noise) K: 3.00 dB
Sawing A-weighted sound power level Lw: 103.00 dB(A)
Sawing A-weighted sound pressure level Lp: 90.00 dB(A)
Sawing uncertainty ( vibration ) K: 1.50 m/s²
For commercial use, please observe the building regulations!
