Scope of Delivery:
- 1x Makita DHP 484 Z cordless impact drill
- 1x Makita DHR 171 Z cordless hammer drill
- 1x Makita BL 1815 N rechargeable battery 18 V 1.5 Ah
- 1x Makita Makpac case
- 1x universal insert
- without charger
Product Description:

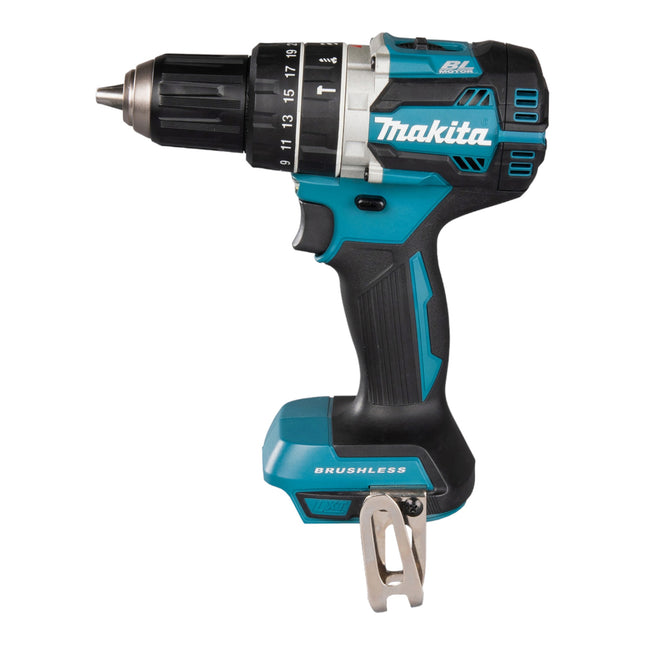

The Makita DHP 484 is a high-performance cordless impact drill driver that is ideal for versatile screwdriving and drilling tasks. Equipped with a brushless 18 V motor and a robust 2-speed full metal planetary gearbox, this tool offers impressive flexibility for different applications. The tool has an impact mechanism that can be switched off as required and achieves a maximum torque of 54 Nm, which can be set in 21 stages plus a drilling stage. The compact design with a housing length of just 182 mm and the maintenance-free, durable brushless motor design are particularly practical. For working in poorly lit areas, the impact drill driver is equipped with a bright LED light that even has an afterglow function. Safety is enhanced by deep discharge protection, which automatically switches the tool off when the battery is almost empty. The quick-release drill chuck enables quick changes between screwdriving and drilling, while the simple one-handed changeover of the right/left rotation increases ease of use. The Makita DHR 171 cordless rotary hammer is characterised by its compact design thanks to the brushless motor, which is suitable for both drilling and hammer drilling. This tool is particularly practical as it is equipped with a low-vibration housing and handle design as well as an SDS-PLUS chuck. With a single impact force of up to 1.2 joules, the rotary hammer enables effective drilling in concrete up to a diameter of 17 mm. The compact and short design makes the rotary hammer particularly easy to handle. The constant electronics ensure continuous performance, while a bright LED with afterglow function ensures optimum visibility when working. Safety features such as integrated temperature monitoring, overload protection and deep discharge protection ensure a long service life for the device and protect against damage caused by overloading or over-discharging the battery. In addition, the device has an electronically adjustable speed and switches off automatically as soon as the battery is almost empty to prevent deep discharge.
Technical Data:
- Manufacturer: Makita
- Manufacturer's description: DLX 2278
- DHP484:
- Voltage: 18 V
- Torque soft: 30 Nm
- Torque hard: 54 Nm
- Idle speed 1st gear: 0-500 min-1
- Idle speed 2nd gear: 0-2000 min-1
- Idle speed 1st gear: 0-7500 min-1
- Idle speed 2nd gear: 0-30000 min-1
- Drilling capacity in wood: 38 mm
- Drilling capacity in steel: 13 mm
- Drilling capacity in masonry: 13 mm
- Drill chuck clamping width: 1.5 - 13 mm
- Dimensions (LxWxH): 189x79x244 mm
- Weight without battery: 1.6 kg
- Sound pressure level (Lpa): 88 dB(A)
- Sound power level (Lwa): 99 dB(A)
- K-value noise: 3 dB(A)
- Vibration drilling metal: 2.5 m/s^2
- K-value vibration: 1.5 m/s^2
- DHR171:
- Voltage: 18 V
- Impact energy: 1.20 joules
- Tool holder: SDS plus
- Motor type: brushless
- Max. No-load speed: 0-680 rpm
- Max. Impact speed: 4,800 rpm
- Drill diameter concrete: Ø 17 mm
- Drill diameter wood: Ø 13 mm
- Drill diameter steel: Ø 10 mm
- Weight without battery: 1700 g
- Sound pressure level: 86 dB(A)
- Sound power level: 97 dB(A)
- Measurement uncertainty (K): 3 dB (A)
- For commercial use, please observe the building regulations!For commercial use, please observe the building regulations!
Scope of Delivery:
- 1x Makita DHP 484 Z cordless impact drill
- 1x Makita DHR 171 Z cordless hammer drill
- 1x Makita Makpac case
- 1x universal insert
- without battery, without charger
Product Description:
The Makita DHP 484 is a high-performance cordless impact drill driver that is ideal for versatile screwdriving and drilling tasks. Equipped with a brushless 18 V motor and a robust 2-speed full metal planetary gearbox, this tool offers impressive flexibility for different applications. The tool has an impact mechanism that can be switched off as required and achieves a maximum torque of 54 Nm, which can be set in 21 stages plus a drilling stage. The compact design with a housing length of just 182 mm and the maintenance-free, durable brushless motor design are particularly practical. For working in poorly lit areas, the impact drill driver is equipped with a bright LED light that even has an afterglow function. Safety is enhanced by deep discharge protection, which automatically switches the tool off when the battery is almost empty. The quick-release drill chuck enables quick changes between screwdriving and drilling, while the simple one-handed changeover of the right/left rotation increases ease of use. The Makita DHR 171 cordless rotary hammer is characterised by its compact design thanks to the brushless motor, which is suitable for both drilling and hammer drilling. This tool is particularly practical as it is equipped with a low-vibration housing and handle design as well as an SDS-PLUS chuck. With a single impact force of up to 1.2 joules, the rotary hammer enables effective drilling in concrete up to a diameter of 17 mm. The compact and short design makes the rotary hammer particularly easy to handle. The constant electronics ensure continuous performance, while a bright LED with afterglow function ensures optimum visibility when working. Safety features such as integrated temperature monitoring, overload protection and deep discharge protection ensure a long service life for the device and protect against damage caused by overloading or over-discharging the battery. In addition, the device has an electronically adjustable speed and switches off automatically as soon as the battery is almost empty to prevent deep discharge.
Technical Data:
- Manufacturer: Makita
- Manufacturer's description: DLX 2278
- DHP484:
- Voltage: 18 V
- Torque soft: 30 Nm
- Torque hard: 54 Nm
- Idle speed 1st gear: 0-500 min-1
- Idle speed 2nd gear: 0-2000 min-1
- Idle speed 1st gear: 0-7500 min-1
- Idle speed 2nd gear: 0-30000 min-1
- Drilling capacity in wood: 38 mm
- Drilling capacity in steel: 13 mm
- Drilling capacity in masonry: 13 mm
- Drill chuck clamping width: 1.5 - 13 mm
- Dimensions (LxWxH): 189x79x244 mm
- Weight without battery: 1.6 kg
- Sound pressure level (Lpa): 88 dB(A)
- Sound power level (Lwa): 99 dB(A)
- K-value noise: 3 dB(A)
- Vibration drilling metal: 2.5 m/s^2
- K-value vibration: 1.5 m/s^2
- DHR171:
- Voltage: 18 V
- Impact energy: 1.20 joules
- Tool holder: SDS plus
- Motor type: brushless
- Max. No-load speed: 0-680 rpm
- Max. Impact speed: 4,800 rpm
- Drill diameter concrete: Ø 17 mm
- Drill diameter wood: Ø 13 mm
- Drill diameter steel: Ø 10 mm
- Weight without battery: 1700 g
- Sound pressure level: 86 dB(A)
- Sound power level: 97 dB(A)
- Measurement uncertainty (K): 3 dB (A)
- For commercial use, please observe the building regulations!For commercial use, please observe the building regulations!
Lieferumfang:- 1x Makita DDF 483 Akku Bohrschrauber- 1x Makita DHR 171 Akku Bohrhammer- 2x Makita BL 1820 B 18 V 2,0 Ah Akku ( 197254-9 )- 1x Makita DC 18 RC Akku Schnell Ladegerät 7,2 V - 18 V ( 195584-2 )- 1x Makita Makpac Koffer- 1x passende Einlage Produktbeschreibung:Die Firma Makita bietet hier mit dem Akku Kombo Kit Schreinerei ein optimal für die Schreinerei geeignetes Maschinen Set bestehned aus dem DDF 483 Akku Bohrschrauber und dem DHR 171 Akku Bohrhammer. Beide Geräte verfügen über einen bürstenlosen ( Brushless ) Motor der die Langlebigkeit, durch verringerten Verschleiß, erhöht und eine kompaktere Bauart ermöglicht. Auch eine LED ist bei beiden Geräten verbaut, wodurch das Arbeiten bei schlechten Lichtverhältnissen erleichtert wird. Der DHR 171 Akku Bohrhammer hat ein auf geringe Vibrationen ausgelegtes Gehäuse um ein ermüdungsarmeres Arbeiten zu ermöglichen. Der DDF 483 Akku Bohrschrauber bestitzt ein 2 Gang Vollmetall Planetengetribe und das Drehmoment lässt sich in 20 Stufen plus eine Bohrstufe einstellen. Durch die beiden mitgelieferten BL 1820 B 2 Ah Akkus und das Ladegerät ist man optimal ausgestattet und kann beide Geräte jederzeit einsetzen. Außerdem kommen die Geräte in einem praktischen Makpac wodurch sich die Geräte ordentlich verstauen und transportieren lassen. Makita ist ein führender Hersteller für Elektrowerkzeuge aller Art, der sich vor allem durch seine hohe Verarbeitungsqualität und sein riesiges 18 V Ökosystem auszeichnet.Technische Daten:Hersteller: MakitaHerstellerbezeichnung: Akku Kombo Kit SchreinereiAkkuspannung: 18 VMax. Drehmoment (weich): 23 NmMax. Drehmoment (hart): 40 NmMotorart: bürstenlos Leerlaufdrehzahl 1. Gang: 0-500 min-1Leerlaufdrehzahl 2. Gang: 0-1700 min-1Bohrleistung in Holz: 36 mmBohrleistung in Stahl: 13 mmBohrfutterspannweite: 1,5 - 13 mmAkku-Technologie: Lithium-IonenGewicht (ohne Akku): 920 gMaße (LxBxH): 162x79x247 mmBei gewerblicher Nutzung beachten Sie bitte die Bauvorschriften!
Package contents:
- 1x Makita MAKPAC 3 Tool Case (821551-8)
- 1x Insert Makita Makpac for DHR 171 (839387-1)
Product description:
The Makita MAKPAC 3 tool case is very robust and can be equipped with an insert (not included). It features two press locks and a carrying handle. This insert is suitable for all standard cases Makpacs. From Makpac size 3 upwards, it fits perfectly with the DHR 171.
Technical specifications:
- L 395 mm x W 295 mm x H approx. 215mm
Lieferumfang:- 1x Makita System Einlage für 18 V Akku Bohrschrauber DDF 483 und Kombihammer DHR 171 ( 839712-6 ) Tiefziehteil für MakpacProduktbeschreibung:Das Kunststoffeinlage ist perfekt geeignet für den Akku Bohrschrauber DDF 483 sowie für den Bohrhammer DHR 171. Selbstverständlich ist die Einlage passend für Makpac´s. Makita ist ein führender Hersteller von Elektrowerkzeugen, eine lange Tradition und ein großes 18 Volt System zeichnen den Hersteller aus. Technische Daten:Hersteller: Makita Herstellerbezeichnung: EinlageHerstellernummer: 839712-6Material: KunststoffKompatibel: DDF 483 und DHR 171Bei gewerblicher Nutzung beachten Sie bitte die Bauvorschriften!
Scope of Delivery:
- 1x Makita DHP 484 Z cordless impact drill
- 1x Makita DHR 171 Z cordless hammer drill
- 1x Makita BL 1820 B rechargeable battery 18 V 2.0 Ah
- 1x Makita Makpac case
- 1x universal insert
- without charger
Product Description:
The Makita DHP 484 is a high-performance cordless impact drill driver that is ideal for versatile screwdriving and drilling tasks. Equipped with a brushless 18 V motor and a robust 2-speed full metal planetary gearbox, this tool offers impressive flexibility for different applications. The tool has an impact mechanism that can be switched off as required and achieves a maximum torque of 54 Nm, which can be set in 21 stages plus a drilling stage. The compact design with a housing length of just 182 mm and the maintenance-free, durable brushless motor design are particularly practical. For working in poorly lit areas, the impact drill driver is equipped with a bright LED light that even has an afterglow function. Safety is enhanced by deep discharge protection, which automatically switches the tool off when the battery is almost empty. The quick-release drill chuck enables quick changes between screwdriving and drilling, while the simple one-handed changeover of the right/left rotation increases ease of use. The Makita DHR 171 cordless rotary hammer is characterised by its compact design thanks to the brushless motor, which is suitable for both drilling and hammer drilling. This tool is particularly practical as it is equipped with a low-vibration housing and handle design as well as an SDS-PLUS chuck. With a single impact force of up to 1.2 joules, the rotary hammer enables effective drilling in concrete up to a diameter of 17 mm. The compact and short design makes the rotary hammer particularly easy to handle. The constant electronics ensure continuous performance, while a bright LED with afterglow function ensures optimum visibility when working. Safety features such as integrated temperature monitoring, overload protection and deep discharge protection ensure a long service life for the device and protect against damage caused by overloading or over-discharging the battery. In addition, the device has an electronically adjustable speed and switches off automatically as soon as the battery is almost empty to prevent deep discharge.
Technical Data:
- Manufacturer: Makita
- Manufacturer's description: DLX 2278
- DHP484:
- Voltage: 18 V
- Torque soft: 30 Nm
- Torque hard: 54 Nm
- Idle speed 1st gear: 0-500 min-1
- Idle speed 2nd gear: 0-2000 min-1
- Idle speed 1st gear: 0-7500 min-1
- Idle speed 2nd gear: 0-30000 min-1
- Drilling capacity in wood: 38 mm
- Drilling capacity in steel: 13 mm
- Drilling capacity in masonry: 13 mm
- Drill chuck clamping width: 1.5 - 13 mm
- Dimensions (LxWxH): 189x79x244 mm
- Weight without battery: 1.6 kg
- Sound pressure level (Lpa): 88 dB(A)
- Sound power level (Lwa): 99 dB(A)
- K-value noise: 3 dB(A)
- Vibration drilling metal: 2.5 m/s^2
- K-value vibration: 1.5 m/s^2
- DHR171:
- Voltage: 18 V
- Impact energy: 1.20 joules
- Tool holder: SDS plus
- Motor type: brushless
- Max. No-load speed: 0-680 rpm
- Max. Impact speed: 4,800 rpm
- Drill diameter concrete: Ø 17 mm
- Drill diameter wood: Ø 13 mm
- Drill diameter steel: Ø 10 mm
- Weight without battery: 1700 g
- Sound pressure level: 86 dB(A)
- Sound power level: 97 dB(A)
- Measurement uncertainty (K): 3 dB (A)
- For commercial use, please observe the building regulations!For commercial use, please observe the building regulations!
Package contents:
- 1x Makita DHR171 Cordless Rotary Hammer
- 1x Side handle with depth stop
- without battery, without charger, without case
Product description:
This tool from Makita is designed for hammer drilling and drilling in brick, concrete and stone. It is also suitable for normal drilling in wood, metal, ceramic and plastic. This cordless hammer drill from Makita impresses with its high performance despite its compact machine. It comes with a carbon-brushless "brushless" motor, which is more efficient than a conventional motor and is virtually wear-free. The body of the tool has been designed to absorb the vibration of the impact mechanism, thus ensuring a comfortable working environment. This rotary hammer is equipped with a silent clutch and the motor provides a high speed for fast work progress. The handling is optimized by the handle with depth stop and the rubber-coated handle and ensures a secure grip every time.
Technical specifications:
Voltage: 18 V
Impact energy: 1.20 joules
Toolholder: SDS plus
Motor type: Brushless
Max. Idle speed: 0-680 rpm
Max. beat rate: 4,800 1/min
Drill diameter concrete: Ø 17 mm
Drill diameter wood: Ø 13 mm
Drill diameter steel: Ø 10 mm
Weight without battery: 1700 g
Sound pressure level: 86 dB(A)
Sound power level: 97 dB(A)
Uncertainty (K): 3 dB (A)
