AMF AMF Locking clamp no. 6848H size 4 ( 4123682400 )
Tue, 10/07/2025
Scope of Delivery: - Locking clamp no. 6848H size 4 - Delivery incl. counterholder Product Description: horizontal Technical Data: - L5: 111mm - C: 32mm - D: 8.5mm - E max: 123mm - L1: 209-273mm - E min: 59mm - H1: 94.5mm - H2: 171.5mm - Arm length: 111mm - B max.: 130mm - Bore Ø: 8.5mm - F: 19mm - B min: 66mm - P: 53.5mm - K: 9.5mm - M: 35.0-46.0mm - H: 26mm - N: 64.3mm - D1: 8mmFor commercial use, please observe the building regulations!
€85,28
-
AMF AMF Locking clamp no. 6848H size 2 ( 4123682200 )
Tue, 10/07/2025
Scope of Delivery: - Locking clamp no. 6848H size 2 - Delivery incl. counterholder Product Description: horizontal Technical Data: - L5: 69mm - C: 13mm - D: 5.2mm - E max: 72mm - L1: 125-159mm - E min: 38mm - H1: 47mm - H2: 99mm - Arm length: 69mm - B max.: 76mm - Bore Ø: 5.2mm - F: 11mm - B min.: 42mm - P: 26mm - K: 6.4mm - M: 19.5-23.5mm - H: 12mm - N: 38mm - D1: 4mmFor commercial use, please observe the building regulations!
€37,25
-
AMF AMF push rod clamp no. 6842 size 3 ( 4123680130 )
Tue, 10/07/2025
Scope of Delivery: - Push rod clamp no. 6842 size 3 Product Description: heavy - push and pull clamp - with long push rod guide - base body made of malleable cast iron, painted - lever parts and push rod made of tempered steel, galvanised and passivated - rivets made of stainless steel, which run in case-hardened bearing bushes for size 3 - bearing points greased - handle made of red, oil-resistant plastic - for sizes 3 and 5: ergonomic, oil-resistant handle with large hand rest and soft component - complete with tempered, galvanised pressure screw Technical Data: - A: 12mm - C: 41mm - D: 6.5mm - M max: 44mm - M min: 36mm - L1: 139mm - H1: 116mm - F1: 4kN - Total height: 115mm - B max: 72mm - Bore Ø: 6.5 mm - F2: 4kN - B min.: 40mm - P: 95mm - Feature: heavy, push/pull clamp - K: 28mm - E: 30mm - H: 30mm - N: 60mm - Total length: 140mmFor commercial use, please observe the building regulations!
€67,77
-
AMF AMF cover strip no. 6486 18 mmx1000 mm ( 4123530180 )
Tue, 10/07/2025
Scope of Delivery: - Cover moulding no. 6486 18 mmx1000 mm Product Description: for T-slot - length 1000 mm - made of aluminium profile - cutting to the desired length is easy with a fine saw blade Technical Data: - Length: 1000mm - suitable for: T-slotFor commercial use, please observe the building regulations!
€46,71
-
AMF AMF parallel underlay set no. 6348P Contents 20 pairs size 100 ( 4123321018 )
Scope of Delivery: - Parallel underlay set no. 6348P Contents 20 pairs Size 100 - Size 100, content 1 pair each: 2x5 / 2x10 / 2x15 / 2x20 / 3x6 / 3x11 / 3x16 / 3x21 / 4x7 / 4x12 / 4x17 / 4x22 / 5x8 / 5x13 / 5x18 / 5x23 / 6x9 / 6x14 / 6x19 / 6x24 mm (WxH) Product Description: nan Technical Data: - Content: 20 pairsFor commercial use, please observe the building regulations!
-
AMF AMF parallel underlay set no. 6347S Contents 14 pairs ( 4123321010 )
Scope of Delivery: - Parallel underlay set no. 6347S Contents 14 pairs - Contents: 1 pair each 10x14 / 10x16 / 10x18 / 10x20 / 10x22 / 10x24 / 10x26 mm (WxH) 10x28 / 10x30 / 10x32 / 10x35 / 10x40 / 10x45 / 10x50 mm (WxH) Product Description: nan Technical Data: - Content: 14 pairsFor commercial use, please observe the building regulations!
-
RÖHM RÖHM Grundbackensatz GB Duro für Futter-Ø 160 mm ( 4121434160 )
Lieferumfang:Grundbackensatz GB Duro für Futter-Ø 160 mmProduktbeschreibung:mit Befestigungsschraube für Aufsatzbacken Satz = 3 StückTechnische Daten:passend zu: Duro-T
-
RÖHM RÖHM Aufsatzbackensatz AB Duro für Futter-Ø 250 mm ( 4121432250 )
Lieferumfang:Aufsatzbackensatz AB Duro für Futter-Ø 250 mmProduktbeschreibung:ungestuft · ungehärtet Satz = 3 StückTechnische Daten:passend zu: Duro-T / Duro-TA XT
-
RÖHM RÖHM clamping spanner for chuck Ø 200 mm ( 4121409070 )
Tue, 10/07/2025
Scope of Delivery: - Clamping spanner for chuck Ø 200 mm Product Description: with spring-loaded sleeve that prevents the spanner from being accidentally left in the lathe chuck - with square socket Technical Data: - nanFor commercial use, please observe the building regulations!
€88,58
-

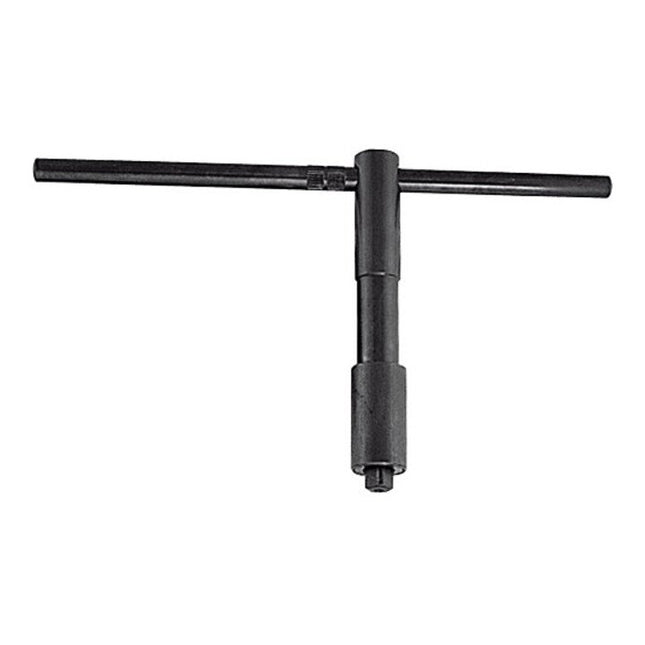

RÖHM RÖHM clamping spanner for chuck Ø 160 mm ( 4121409060 )
Tue, 10/07/2025
Scope of Delivery: - Clamping spanner for chuck Ø 160 mm Product Description: with spring-loaded sleeve that prevents the spanner from being accidentally left in the lathe chuck - with square socket Technical Data: - nanFor commercial use, please observe the building regulations!
€88,58
-
RÖHM RÖHM Aufsatzbackensatz für Futter-Ø 250 mm ( 4121271250 )
Lieferumfang:Aufsatzbackensatz für Futter-Ø 250 mmProduktbeschreibung:ungestuft · ungehärtetTechnische Daten:
-

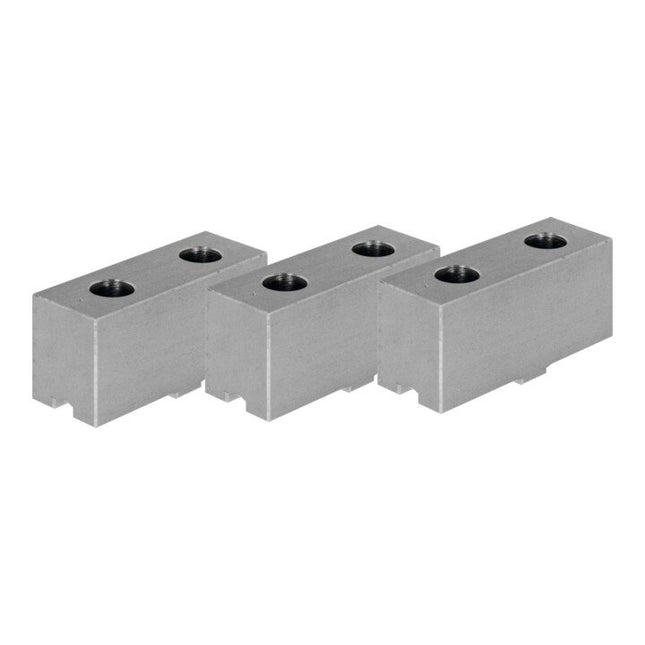

RÖHM RÖHM Aufsatzbackensatz für Futter-Ø 200 mm ( 4121271200 )
Lieferumfang:Aufsatzbackensatz für Futter-Ø 200 mmProduktbeschreibung:ungestuft · ungehärtetTechnische Daten:
