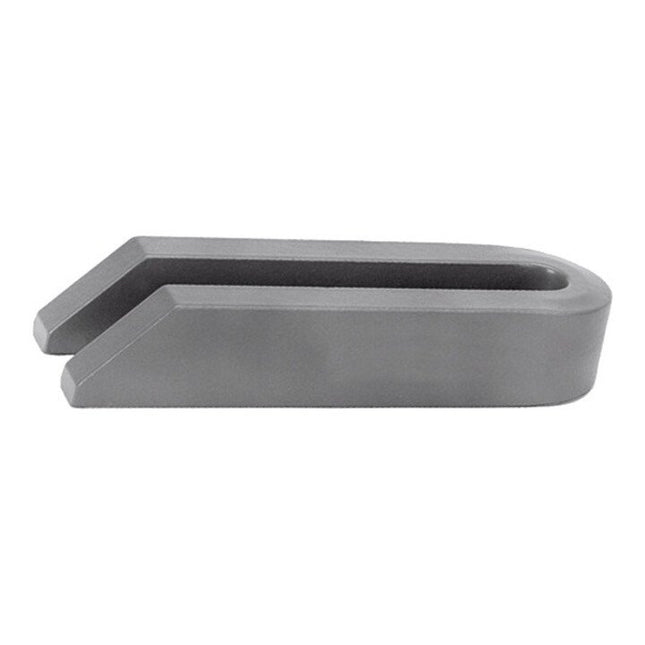

AMF AMF Fork clamp DIN 6315B Slot width 18 mm ( 4000833027 )
Scope of Delivery: - Fork clamp DIN 6315B Slot width 18 mm Product Description: bevelled - tempered steel - lacquered Technical Data: - Width: 48 mm - A: 30mm - B1: 18mm - B2: 48mm - Weight: 1360g - L: 200mm - B4: 8mm - Thickness: 30mm - B3: 15mmFor commercial use, please observe the building regulations!
-

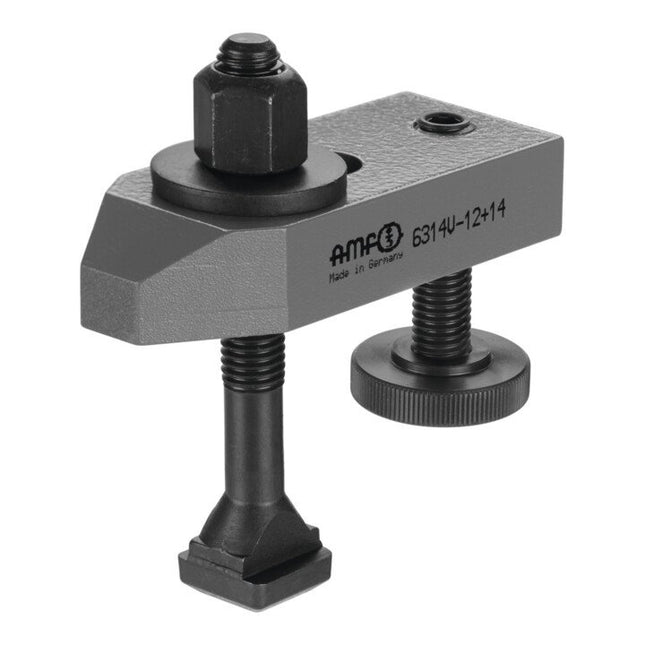

AMF AMF clamp no. 6314V for T-slot 12 mm ( 4000833072 )
Scope of Delivery: - Clamping arm no. 6314V for T-slot 12 mm Product Description: bevelled - with adjustable support and clamping screw - tempered steel, painted Note: Dimension h = depends on the groove depth according to DIN 650 and the screw-in length of the nut. Clamping irons without clamping screw are available in sizes 12 and 14, 16 and 18 as well as 20 and 22 mm. Technical Data: - Width: 40 mm - Length: 100 mm - A: 20mm - B1: 14mm - B2: 40mm - E2: 40mm - D: M12 - E1: 21mm - Weight: 700g - L: 100mm - Thickness: 20mm - LS: 49mm - Slot width: 14 mm - H: 10 - 40mmFor commercial use, please observe the building regulations!
-

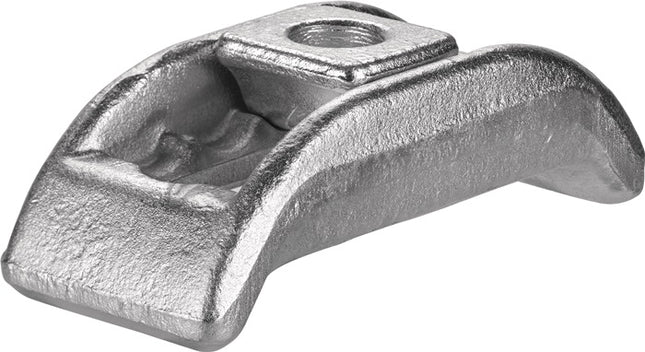

AMF AMF clamping claw no. 6313K size 13 for T-slot 12 + 14 mm ( 4000603000 )
Thu, 09/18/2025
Scope of Delivery: - 1x AMF clamping claw no. 6313K size 13 for T-slot 12 + 14 mm Product Description: short - with U-piece - infinitely adjustable - hardened and tempered - galvanised and blue passivated Technical Data: - Length: 88 mm - B1: 13mm - B2: 38mm - E2: 28mm - E1: 23mm - Weight: 260g - H1: 0-35mm - H2: 30-55mm - L: 88mm - K: 14mmFor commercial use, please observe the building regulations!
€39,09
-

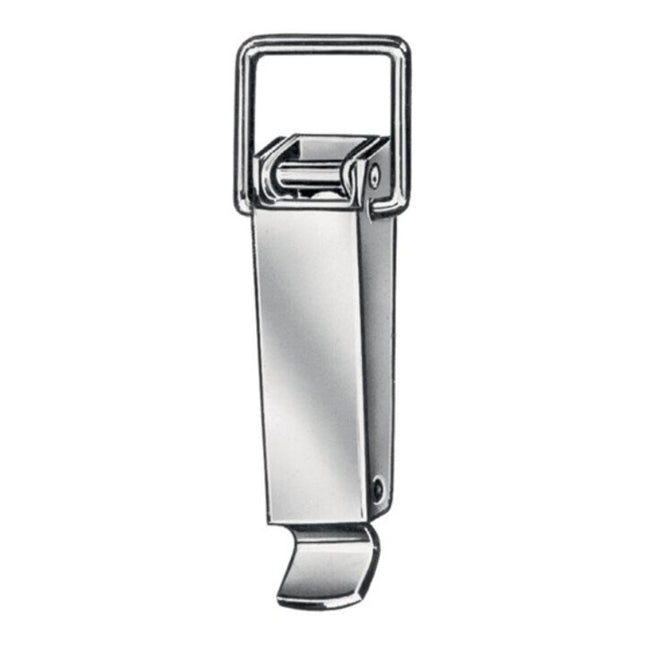

VORMANN VORMANN tension fastener height 15 mm width 33 mm ( 3000272456 )
Thu, 09/18/2025
Scope of Delivery: - Tension lock Height 15 mm Width 33 mm Product Description: Steel - blue galvanised - with sealing option - without hooks Technical Data: - Number of holes: 2For commercial use, please observe the building regulations!
€9,58
-

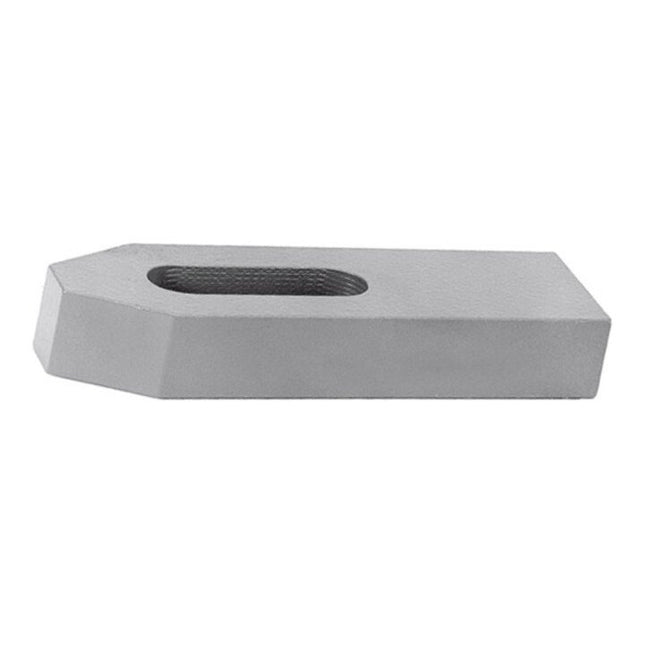

AMF AMF Clamping arm DIN 6314 for T-slot 12 + 14 + 16 mm ( 4000833004 )
Thu, 09/18/2025
Scope of Delivery: - Clamping arm DIN 6314 for T-slot 12 + 14 + 16 mm Product Description: single - tempered steel - painted Technical Data: - Width: 40 mm - Length: 125 mm - A: 20mm - B1: 14mm - B2: 40mm - E2: 50mm - E1: 21mm - Weight: 621g - L: 125mm - Thickness: 20mm - Slot width: 14mm - B3: 14mmFor commercial use, please observe the building regulations!
€19,82
-
AMF AMF clamp no. 6314V for T-slot 14 mm ( 4000833073 )
Thu, 09/18/2025
Scope of Delivery: - Clamping arm no. 6314V for T-slot 14 mm Product Description: bevelled - with adjustable support and clamping screw - tempered steel, painted Note: Dimension h = depends on the groove depth according to DIN 650 and the screw-in length of the nut. Clamping irons without clamping screw are available in sizes 12 and 14, 16 and 18 as well as 20 and 22 mm. Technical Data: - Width: 40 mm - Length: 100 mm - A: 20mm - B1: 14mm - B2: 40mm - E2: 40mm - D: M12 - E1: 21mm - Weight: 720g - L: 100mm - Thickness: 20mm - LS: 49mm - Slot width: 14 mm - H: 10 - 38mmFor commercial use, please observe the building regulations!
€43,80
-
KUKKO KUKKO pressure spindle M 14x1.5x250 mm ( 8000458260 )
Thu, 09/18/2025
Scope of Delivery: - 1x KUKKO pressure spindle M 14x1.5x250 mm Product Description: a maximum pulling force of 10 t can be achieved with the mechanical pressure spindle - manual actuation of the spindle ensures sensitive control of the pulling process - the fine thread also guarantees perfect force transmission - a reversible spindle tip enables the spindle to be positioned securely on smooth surfaces as well as when centring Technical Data: - Spindle length: 250 mm - Thread diameter: 14 mm - Width across flats: 17 mm - Thread: M 14x1.5 - Mounting diameter of the spindle tip: 6.4 mm - Two-sided spindle tip: 612140 - Measurement of the thread: 4.50 mmFor commercial use, please observe the building regulations!
€64,91
-
RÖHM RÖHM Spannpratze SPE für T-Nut 18 mm ( 4124040094 )
Thu, 09/18/2025
Lieferumfang:1x RÖHM Spannpratze SPE für T-Nut 18 mmProduktbeschreibung: komplett für stirn- und grundseitige Befestigung · für Kompaktspanner alle Größen · (Es werden 4 Stück pro Schraubstock benötigt)
€60,24
-

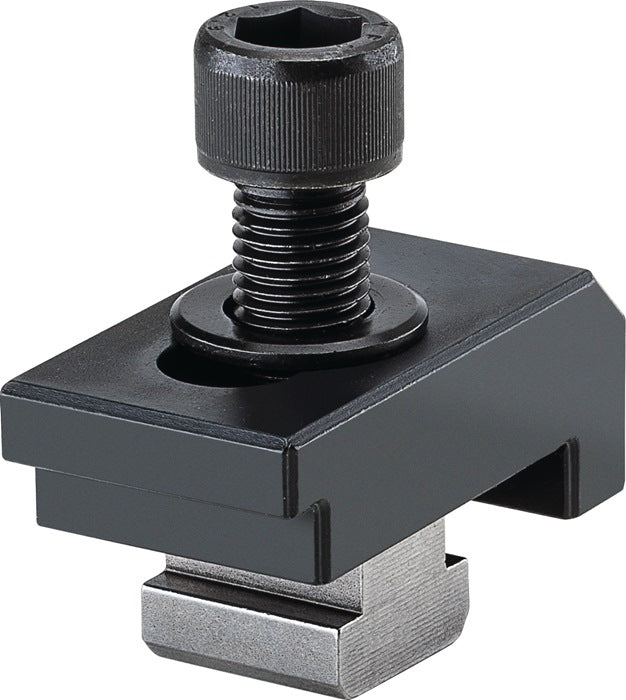

RÖHM RÖHM Spannpratze SPE für T-Nut 16 mm ( 4124040092 )
Thu, 09/18/2025
Lieferumfang:1x RÖHM Spannpratze SPE für T-Nut 16 mmProduktbeschreibung: komplett für stirn- und grundseitige Befestigung · für Kompaktspanner alle Größen · (Es werden 4 Stück pro Schraubstock benötigt)
€54,68
-
RÖHM RÖHM Spannpratze SPE für T-Nut 14 mm ( 4124040090 )
Thu, 09/18/2025
Lieferumfang:1x RÖHM Spannpratze SPE für T-Nut 14 mmProduktbeschreibung: komplett für stirn- und grundseitige Befestigung · für Kompaktspanner alle Größen · (Es werden 4 Stück pro Schraubstock benötigt)
€54,68
-

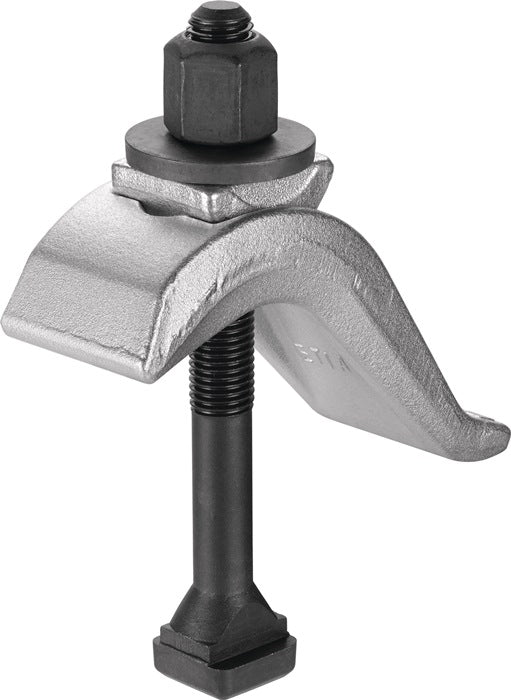

AMF AMF clamping claw no. 6321 for T-slot 20 mm ( 4000833069 )
Scope of Delivery: - 1x AMF clamping claw no. 6321 for T-slot 20 mm Product Description: infinitely adjustable - steel - forged and tempered - galvanised - Application: The infinitely adjustable clamping claw quickly bridges different clamping heights without an additional base and requires little space on the machine table. It is designed for maximum loads and is particularly suitable for clamping cutting and punching tools. Note: With screws for T-slots DIN 787, length 160 mm, a maximum clamping height of 75 mm can be achieved with clamping claw sizes 12 and 14. Technical Data: - Length: 175 mm - B1: 21mm - B2: 60mm - E2: 70mm - E1: 40mm - Weight: 2300g - L: 175mm - H: 0-85mm - Application: The stepless clamping claw quickly bridges different clamping heights without additional support and requires little space on the machine table. It is designed for maximum loads and is particularly suitable for clamping cutting and punching tools.For commercial use, please observe the building regulations!
-
AMF AMF clamping claw no. 6321 for T-slot 18 mm ( 4000833068 )
Thu, 09/18/2025
Scope of Delivery: - 1x AMF clamping claw no. 6321 for T-slot 18 mm Product Description: infinitely adjustable - steel - forged and tempered - galvanised - Application: The infinitely adjustable clamping claw quickly bridges different clamping heights without an additional base and requires little space on the machine table. It is designed for maximum loads and is particularly suitable for clamping cutting and punching tools. Note: With screws for T-slots DIN 787, length 160 mm, a maximum clamping height of 75 mm can be achieved with clamping claw sizes 12 and 14. Technical Data: - Length: 140 mm - B1: 17mm - B2: 50mm - E2: 55mm - E1: 30mm - Weight: 1280g - L: 140mm - H: 0-75mm - Application: The stepless clamping claw quickly bridges different clamping heights without additional support and requires little space on the machine table. It is designed for maximum loads and is particularly suitable for clamping cutting and punching tools.For commercial use, please observe the building regulations!
€69,61
