Description

SKU: 75043
EAN: 4020772094300

Scope of Delivery:
- Push rod clamp no. 6844 size 2
- Supplied with hardened and tempered, galvanised tightening screw no. 6880

Product Description:
short design - push and pull clamp - with long push rod guide - the clamp can be attached to sheet metal walls or screwed into fixture bodies with threads on the face - stainless steel version available on request. Detailed CAD dimensions available on data carriers on request.

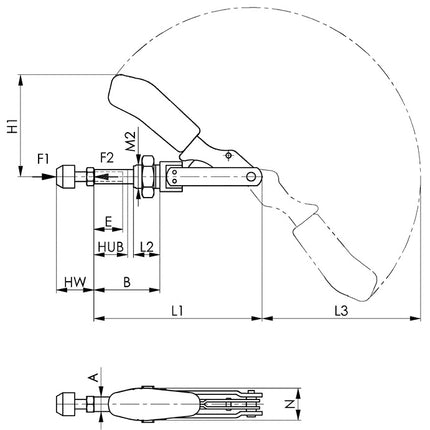

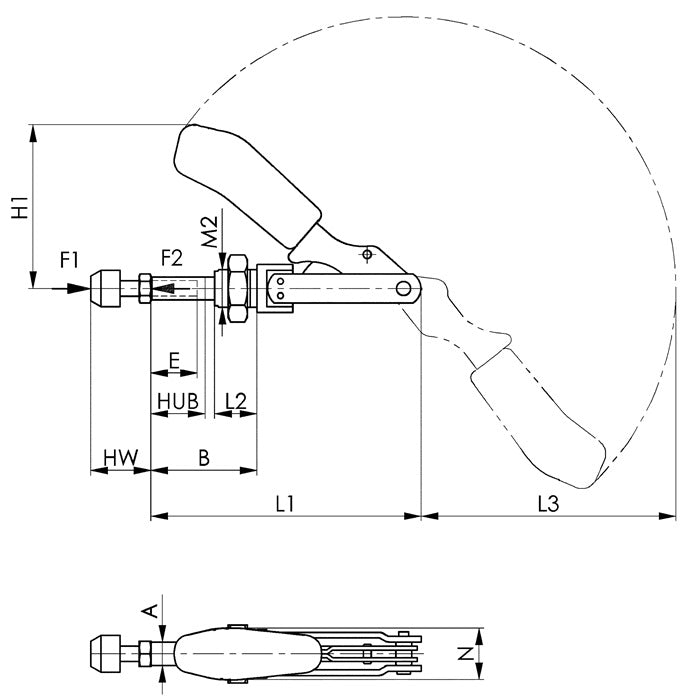

Technical Data:
- A: 10mm
- L2: 13mm
- M2: M16x1.5mm
- HW min.: 17mm
- L1: 68,5mm
- HW max.: 25mm
- H1: 73mm
- F1: 1kN
- Total height: 76mm
- F2: 1kN
- B: 36mm
- L3: 68mm
- E: 15mm
- M: M6mm
- N: 30,5mm

For commercial use, please observe the building regulations!

Read more

Product form

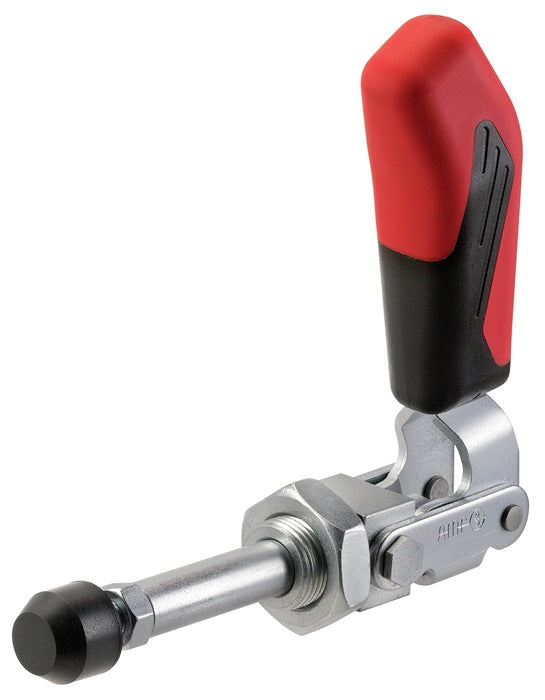

AMF push rod clamp no. 6844 size 2 ( 4123665200 )
