Description

SKU: 76454
EAN: 4042203690219

Scope of Delivery:

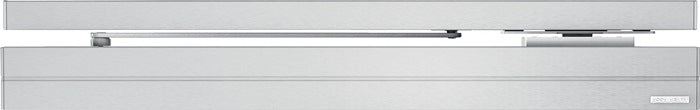

- Safety slide channel door closer DC700G-FT-BGS Standard installation opposite hinge side

Product Description:
Door closer with extended mounting plate and integrated latch bolt, slide channel with integrated escape door strike complete with cover for door closer and slide channel - suitable for retrofitting to fire doors with slide channel door closer and fixing in accordance with drilling pattern DIN EN 1154 Supplement 1:2003-11 consisting of: Overhead door closer with Cam-Motion® technology - tested in accordance with DIN EN 1154 - fulfils the requirements of DIN SPEC 1104 due to sharply decreasing opening torque - max. height compensation infinitely variable 14 mm. Height compensation infinitely variable 14 mm - Closing force infinitely variable - Closing speed, latching action and opening damping infinitely variable from the front Extended mounting plate for fire and smoke protection doors, fixing in accordance with DIN EN 1154 supplement 1 - To accommodate the Assa Abloy DC700 door closer - Latch bolt lock 807-10 mounted on mounting plate - Latch bolt exclusion adjustable: vertical + 5 mm - Mounting bracket latch bolt lock adjustable: horizontal (-3 mm/+6 mm) - vertical in 4 mm steps (-4/ 0/ +4/ +8) - mounting plate complete with end caps and cover anodised aluminium Extended slide channel with integrated effeff-escape door strike 332 - complete with anodised aluminium cover - escape door strike adjustable via FaFix® 2 mm - with 4 m connection cable for connection to effeff escape door control units - system approval according to EltVTR with effeff escape door control units - rated voltage 24V DC +/- 10% - rated current 95 mA can be used DIN left and DIN right - recommended door width: min. 850 mm - max. 1200 mm

Technical Data:
- nan

For commercial use, please observe the building regulations!

Read more

Product form

ASSA ABLOY DC700G-FT-BGS standard installation opposite hinge side ( 3000255710 )

  • Vendor ASSA ABLOY
  • condition  New
  • Unzufrieden? 100 Tage kostenfreie Retoure
€1.224,37
incl. VAT, plus shipping
