Scope of Delivery:
- 1x BENNING insulation/resistance meter 0.1-600 V AC/DC V

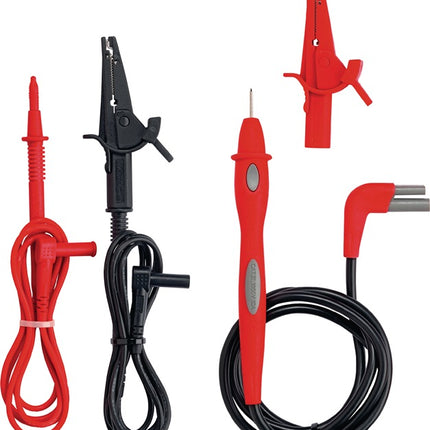

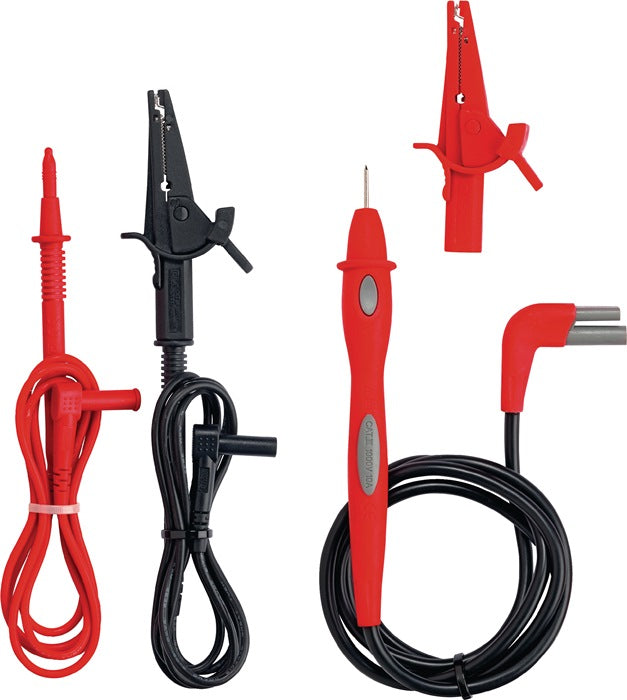

- Supplied with batteries (4 x type AA), switchable test probe, test leads, crocodile clips, rubber protective frame, case, spare batteries see art. no. 4000 901 811
Product Description:
suitable for electrical engineering, industry, service, maintenance, troubleshooting - for insulation and low-resistance measurements on electrical systems, devices, cables, motors and generators - 4-digit illuminated LCD display (4000 dots) with bar graph - selectable limit values for ISO measurements - green LED for test passed, red LED for test/external voltage - switchable test probe for triggering the measurement process - internal memory - TRUE RMS voltage with low-pass filter - automatic discharge of capacitive voltages - CAT IV 600 V measuring ranges: insulation resistance: up to 20 GΩ, test voltage: 50 V, 100 V, 250 V, 500 V, 1000 V), calculation of the resulting leakage current - low ohm: up to 40 Ω (with 200 mA test current for testing protective conductor connections) polarisation index (PI), dielectric absorption rate (DAR), voltage 600 V - resistance: 0.01 Ω - 40 k Ω
Technical Data:
- Width: 95mm
- Length: 207mm
- Batteries: 4 x Mignon type AA
- Low-impedance resistance: 0.01 Ω-40 Ω
- Resistance: 0.01 Ω- 40 kΩ
- Insulation resistance: 50 kOhm-20 GOhm
- Voltage: 0.1-600 V AC/DCV
- Measured value memory: 500 measurement results
- Height: 52mm
- Display: 4,000 digit (illuminated)
- Procedure: TRUE RMS
- Brand: BENNING
- Measurement category: CAT IV 600 V
- Model: IT 101Note on the disposal of batteries and rechargeable batteries As we sell batteries and rechargeable batteries or devices containing batteries and rechargeable batteries, we are obliged under the German Battery Act (BattG) to draw your attention to the following: The symbol of the crossed-out dustbin on batteries or accumulators means that they must not be disposed of with household waste after use. If batteries or accumulators contain mercury, cadmium or lead, you will find the respective chemical symbol (Hg, Cd or Pb) below the symbol of the crossed-out dustbin. Every user of batteries or accumulators is legally obliged to return old batteries and accumulators. You can do this free of charge at a retail outlet or other collection point in your area. You can obtain the addresses of suitable collection centres in your area from your city or local authority. For batteries that contain more than 0.0005 per cent mercury by mass, more than 0.002 per cent cadmium by mass or more than 0.004 per cent lead by mass, the chemical designations of the pollutant used can be found under the waste bin symbol. The chemical designations have the following meaning: Pb: Battery contains lead Cd: Battery contains cadmium Hg: Battery contains mercuryFor commercial use, please observe the building regulations!
