Scope of Delivery:

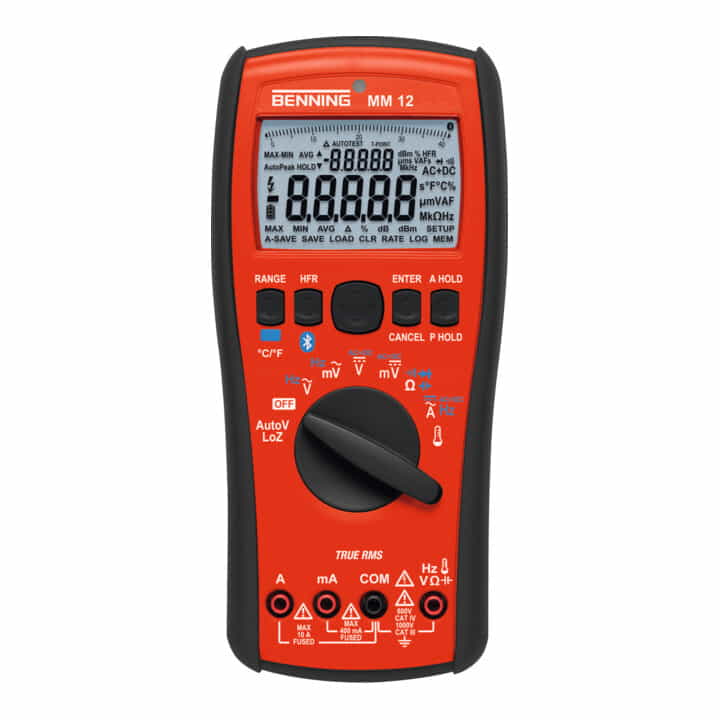

- Multimeter MM 12 0.0001 V-1000 V AC/DC
- Supplied with PC software, serial data cable with USB connection, rubber protective frame, magnetic hanger, bag, batteries (4x 1.5 V Mignon/ AA/ LR6), test leads, wire temperature sensor, calibration certificate Replacement battery see item no. 4000 901 811
Product Description:
with 4-digit, illuminated LCD display (4,000/ 40.000 dots) with bar graph and logging function as well as Bluetooth® interface - DC/AC voltage (10 µV - 1000 V), DC/AC current (10 µA - 10 A), resistance (0.1 Ω - 40 MΩ), frequency (0.1 Hz - 100 kHz), capacitance (0.01 nF - 40 mF), temperature (-200 °C - +1200°C) - continuity test (30 Ω) (buzzer)/ diode test (2.0 V) - LOG data logger function (40.000 measured values, sampling rate: 1 s - 10 min.) - MEM memory function (1.000 measured values, automatic A-SAVE and manual storage SAVE) - Free PC software BENNING PC-Win MM 12: Measured value transmission in real time via serial data cable with USB connection to PC or laptop, sampling rate (measuring interval) adjustable from 1 s to 10 min, display of measured values via line diagram and tabular form with calculation of maximum/minimum and average value, storage of up to 100.000 measured values in MS EXCEL® format, download of the data logger LOG and the memory MEM - Bluetooth® Low Energy 4.0 interface and optical interface via USB connection - IOS and Android APP for online transmission and download of the data logger/memory - Download free APP "BENNING MM-CM Link"! View, save and share the measured values for further analysis. Monitor up to 5 digital multimeters simultaneously from a safe distance. Transmit measured values in real time via Bluetooth 4.0 to smartphone and tablet (IOS/ Android from 4.3). Download the LOG data logger and the MEM memory. Storage of measured values in CSV format. Display of measured values via line diagram and tabular form - AutoV function for automatic AC/DC voltage detection and low input impedance (LoZ) for suppressing capacitive/inductive interspersed voltages - Low-pass filter (high-frequency suppression HFR) for measurements on motor drives - Automatic/manual range selection, automatic switch-off, battery status display - measured value (HOLD), peak value memory (P-HOLD), relative measurement (REL), maximum/minimum/average value (MAX/ MIN/ AVG), level measurement (dB/dBm) - measurement category CAT IV 600 V, CAT III 1000 V
Technical Data:
- Width: 94mm
- Length: 206mm
- Height: 54mmNote on the disposal of batteries and rechargeable batteries
- As we sell batteries and rechargeable batteries or devices containing batteries and rechargeable batteries, we are obliged under the Battery Act (BattG) to inform you of the following: The symbol of the crossed-out dustbin on batteries or accumulators means that they must not be disposed of with household waste after use. If batteries or accumulators contain mercury, cadmium or lead, you will find the respective chemical symbol (Hg, Cd or Pb) below the symbol of the crossed-out dustbin. Every user of batteries or accumulators is legally obliged to return old batteries and accumulators. You can do this free of charge at a retail outlet or other collection point in your area. You can obtain the addresses of suitable collection centres in your area from your city or local authority. For batteries that contain more than 0.0005 per cent mercury by mass, more than 0.002 per cent cadmium by mass or more than 0.004 per cent lead by mass, the chemical designations of the pollutant used can be found under the waste bin symbol. The chemical designations have the following meaning: Pb: Battery contains lead Cd: Battery contains cadmium Hg: Battery contains mercury
For commercial use, please observe the building regulations!
