Description

SKU: 77222
EAN: 4399901300354

Scope of Delivery:

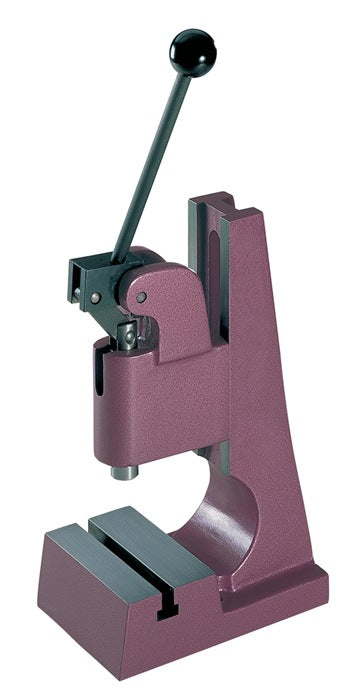

- Toggle hand press HK 500 Compressive force 5 kN Stroke 40 mm

Product Description:
Power transmission via toggle lever transmission - Spindle hardened and ground - Long spindle guide for optimum pressure performance - Working height adjustable by simply loosening the clamping screws on the stand - Hand lever return via spring - With 15 mm Ø table bore in the T-slot - Important! With the toggle lever transmission, the maximum pressure output is only achieved when the toggle lever is extended, i.e. shortly before the end of the stroke.

Technical Data:
- Width: 175mm
- Length: 115mm
- Table length: 115mm
- Spindle bore: 10 H 7mm
- Weight: 11kg
- Base width: 175mm
- Projection: 73mm
- Base length: 115mm
- Spindle guide: 50mm
- Stand height: 290mm
- Table width: 70mm
- Slot width: (DIN 650) 10mm

For commercial use, please observe the building regulations!
