Description

SKU: 143633
EAN: 4007123189335

Scope of Delivery:

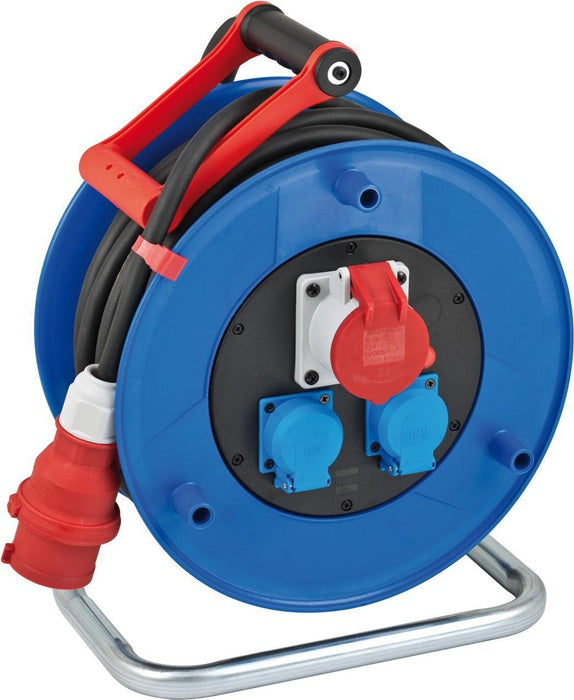

- 1x BRENNENSTUHL three-phase cable reel 20 m rubber-neoprene 5 x 2.5 mm²

Product Description:

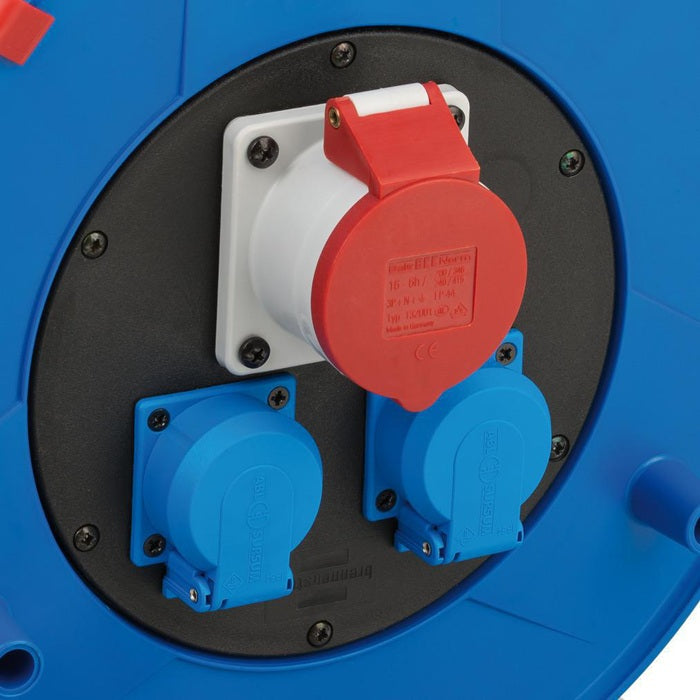

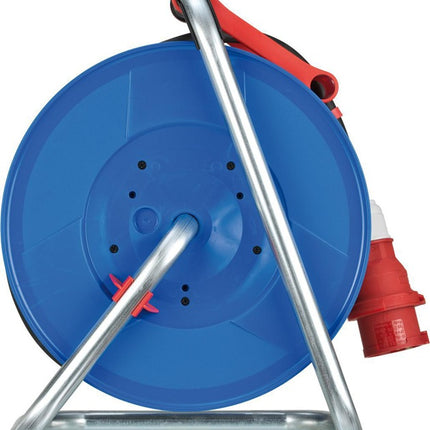

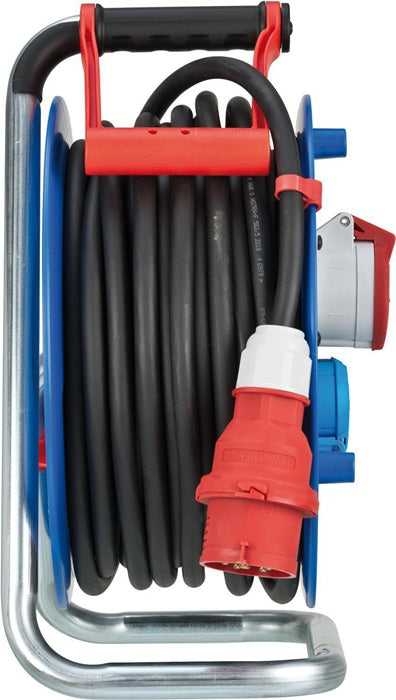

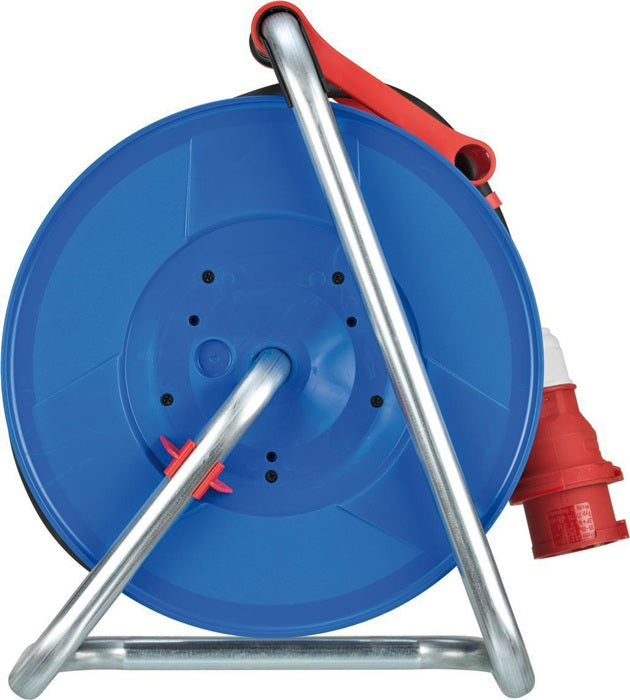

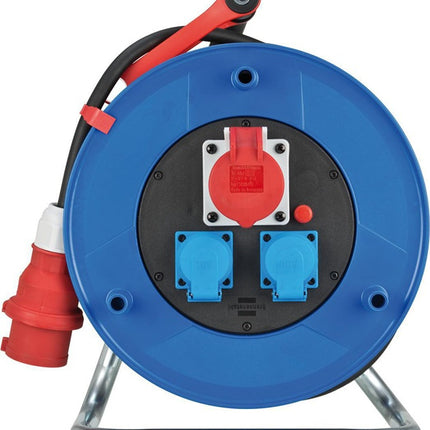

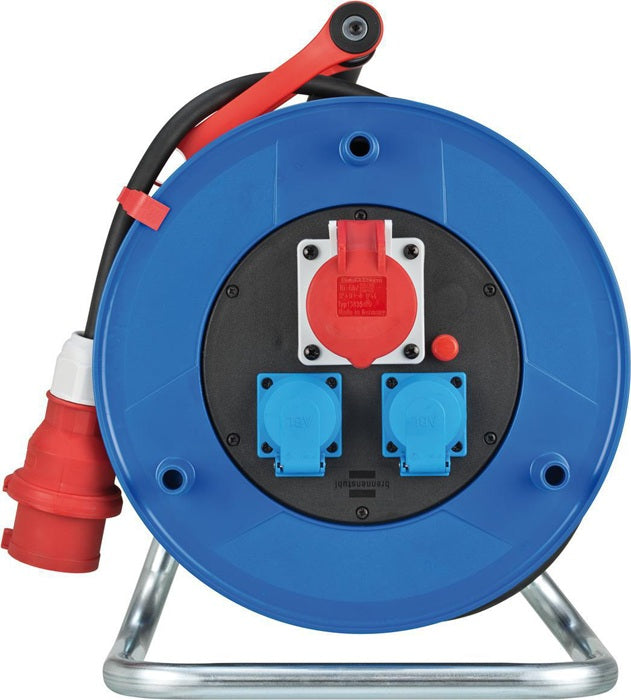

made of special plastic - sturdy galvanised carrying frame - innovative "cablepilot" carrying handle for perfect cable routing - swings on both sides and makes it easy to carry and hang up - 2 splash-proof 230 V protective contact sockets with self-closing hinged lids - 1 400 V / 16 A CEE socket outlet - with 3-pole safety cut-out, overheating protection Technical data Input CEE plug 400 V / 16 A rubber cable H07RN-F - for permanent outdoor use

Technical Data:
- subject to testing: yes
- Number of cores: 5
- Connection technology: Screw/luster terminal
- Number of CEE sockets: 1
- Number of earthing contact sockets: 2
- Width: 25cm
- Application: outdoor
- Colour: blue
- Housing colour: blue
- Weight: 8.215kg
- Height: 41cm
- Cable designation: H07RN-F 5G2.5
- Cable entry into the housing: Bend protection sleeve
- Length: 32cm
- Uncoiled power 230V: 3000W
- Uncoiled power 400V 16A: 8000W
- Power when rolled up 230V: 1800W
- Power when rolled up 400V 16A: 4200W
- Carrying handle material: plastic
- With locking device: yes
- With CABLEPILOT: yes
- With frame: yes
- With hinged lid/cover: yes
- With plug: yes
- With plug garage: yes
- With carrying handle: yes
- With overheating protection: yes
- Rated input voltage (1): 400V
- Protection class: II
- Plug type: Straight plug
- Plug system CEE socket: CEE 1x 16A 3P+N+PE (5p) 400V
- Plug system socket outlet: Type F (Schuko)

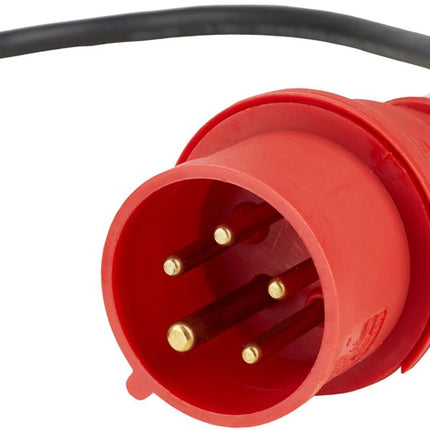

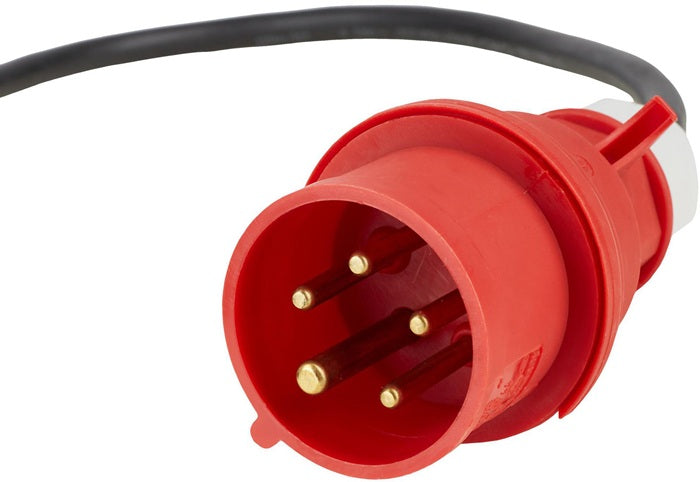

- Plug system Plug: CEE 16A 3P+N+PE (5p) 400V
- Cable length: 20 m
- Cable cross-section: 5 x 2.5 mm²
- Reel Ø: 320 mm
- Plug type: F
- Protection class: IP44
- Number of sockets: 3
- Cable quality: Rubber-neoprene
- Brand: BRENNENSTUHL
- Material: Plastic
- Cable colour: black
- Voltage: 230 V
- Model: Garant®
- Rated current: 16 AFor commercial use, please observe the building regulations!

For commercial use, please observe the building regulations!

Read more

Product form

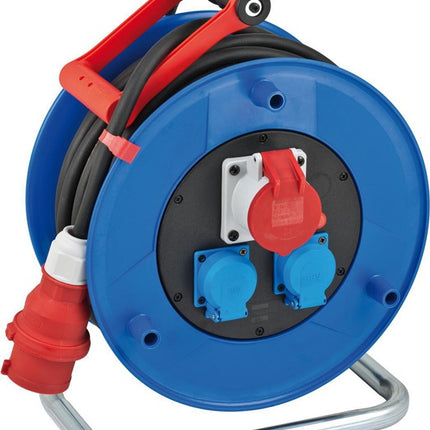

Brennenstuhl three-phase cable reel Garant ( 8000337368 ) 20 m rubber-neoprene 5 x 2.5 mm² plastic IP44

  • Vendor Brennenstuhl
  • condition  New
  • Unzufrieden? 100 Tage kostenfreie Retoure
    €187,39
    incl. VAT, plus shipping

    in stock delivery expected in  Mon, 11/10/2025
