Description

SKU: 140447
EAN: 4045525162570

Scope of Delivery:
- 1x GANTER adjustable clamping lever d1 M 10 mm

Product Description:
adjustable clamping levers GN 300.1 are preferably used when the clamping range is limited or a specific clamping position is required - the threaded insert is detachably connected to the handle by a serration - by lifting (pulling) the handle, the serration is released and the clamping lever can be swivelled into the most favourable clamping position - when released, the handle engages again automatically - handle body - die-cast zinc - threaded bush and retaining screw : stainless steel, 1.4305

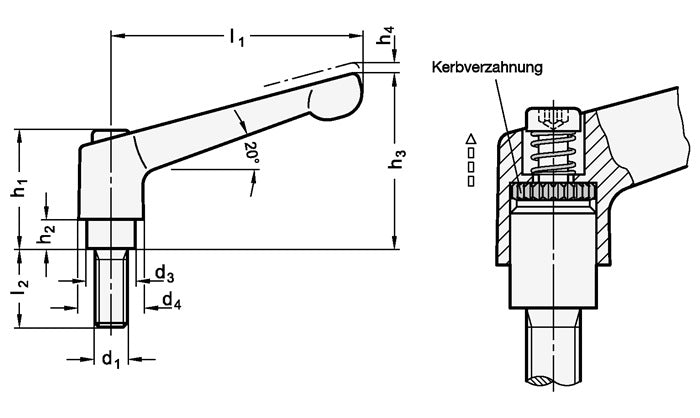

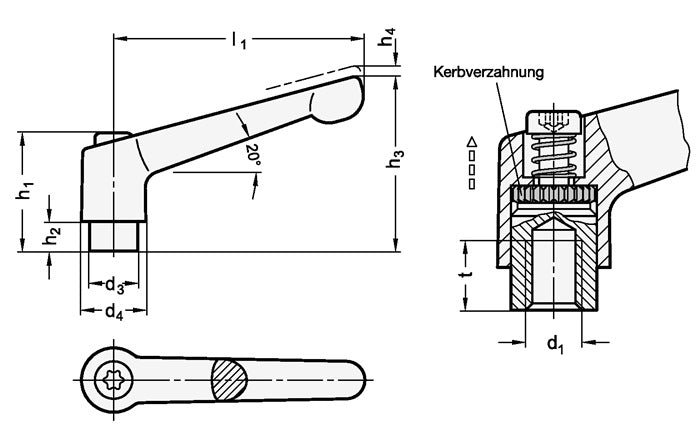

Technical Data:
- d4: 21mm
- h2: 8mm
- h4: 4mm
- l2: 32mm
- l1: 78mm
- h1: 36mm
- d1: M 10mm
- d3: 16mm
- h3: 54mm
- Version: Male thread
- t min.: - mm
- Brand: GANTERFor commercial use, please observe the building regulations!

For commercial use, please observe the building regulations!
