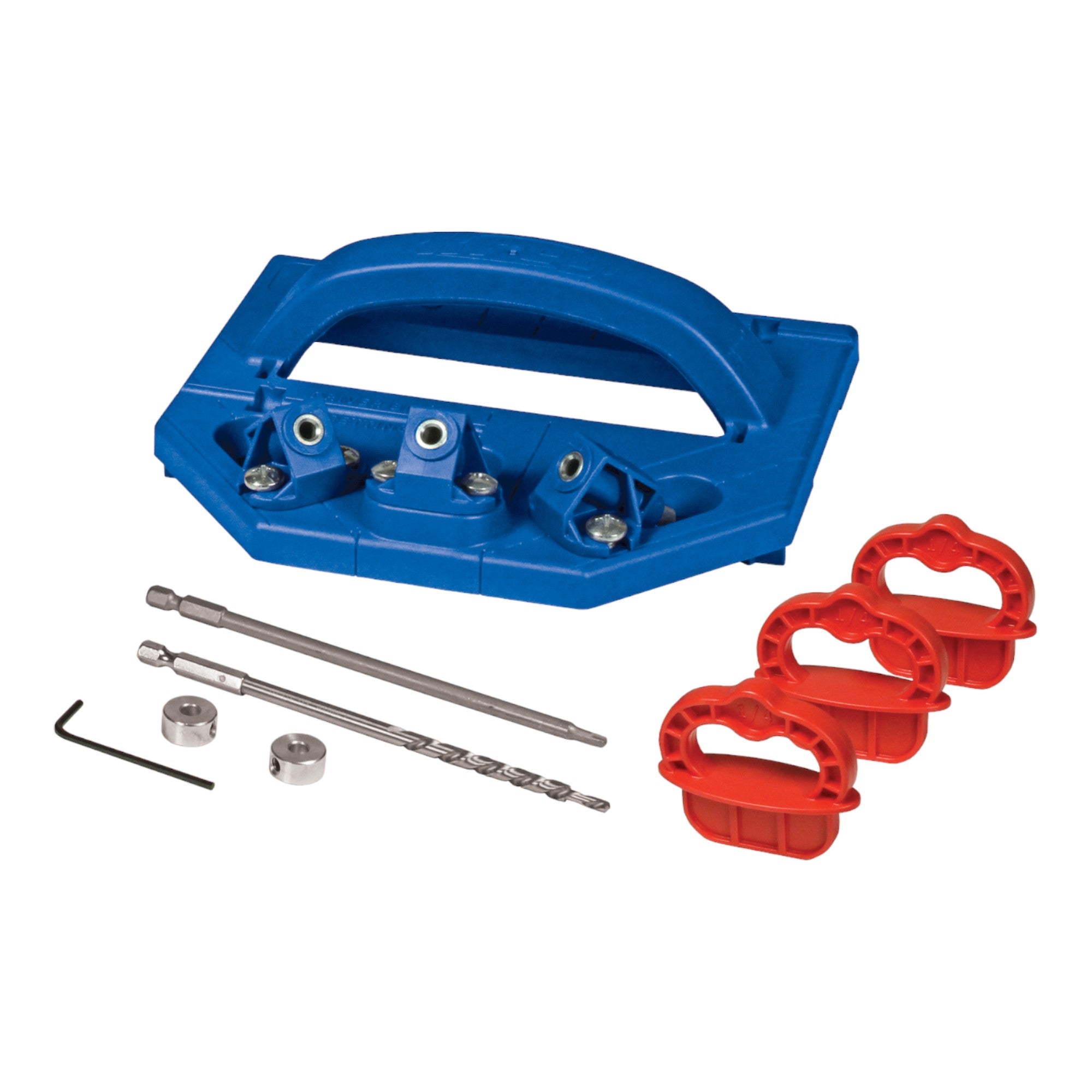

Scope of Delivery:
- 1x Deck Jig 152 mm decking drilling template
- 1x Decking drill bit 152 mm
- 1x decking screw bit
- 3x spacer 6mm
- 2x depth stop
- 1x hexagon spanner
Product Description:
With the Kreg decking drilling template, you too can now easily build a dream decking! No more visible screws and annoying wood splinters on the top - this drilling template makes it possible. In contrast to complicated plastic or metal clamps, which are often used for concealed decking systems, the Kreg® decking drilling template impresses with its ease of use and high stability. The decking boards are fastened to the substructure with screws and can be laid in sizes from 19 mm to 38 mm. The hardened guide sleeves enable the pocket holes to be positioned precisely, allowing the decking screws to be guided perfectly and the boards to be fixed invisibly from the side. The drilling template has a total of three guides - one for a 90° angle to the board edge and two more for the opposite 45° angle. This means that planks can also be screwed in close to walls without any problems and a firm screw connection is possible even in the case of blunt joints. After drilling, the screw is simply inserted into the same guide and screwed in place with the bit supplied - so everything stays perfectly in place.
Technical Data:
- Manufacturer: Kreg
- Manufacturer's description: Deck Jig
- Manufacturer number: KJDECKSYS20
- Weight (in KG): 2.0
- For commercial use, please observe the building regulations!
For commercial use, please observe the building regulations!
