Scope of Delivery:
- 2x assembly tool for drawer fronts (l/r)
- 7x spacers
Product Description:

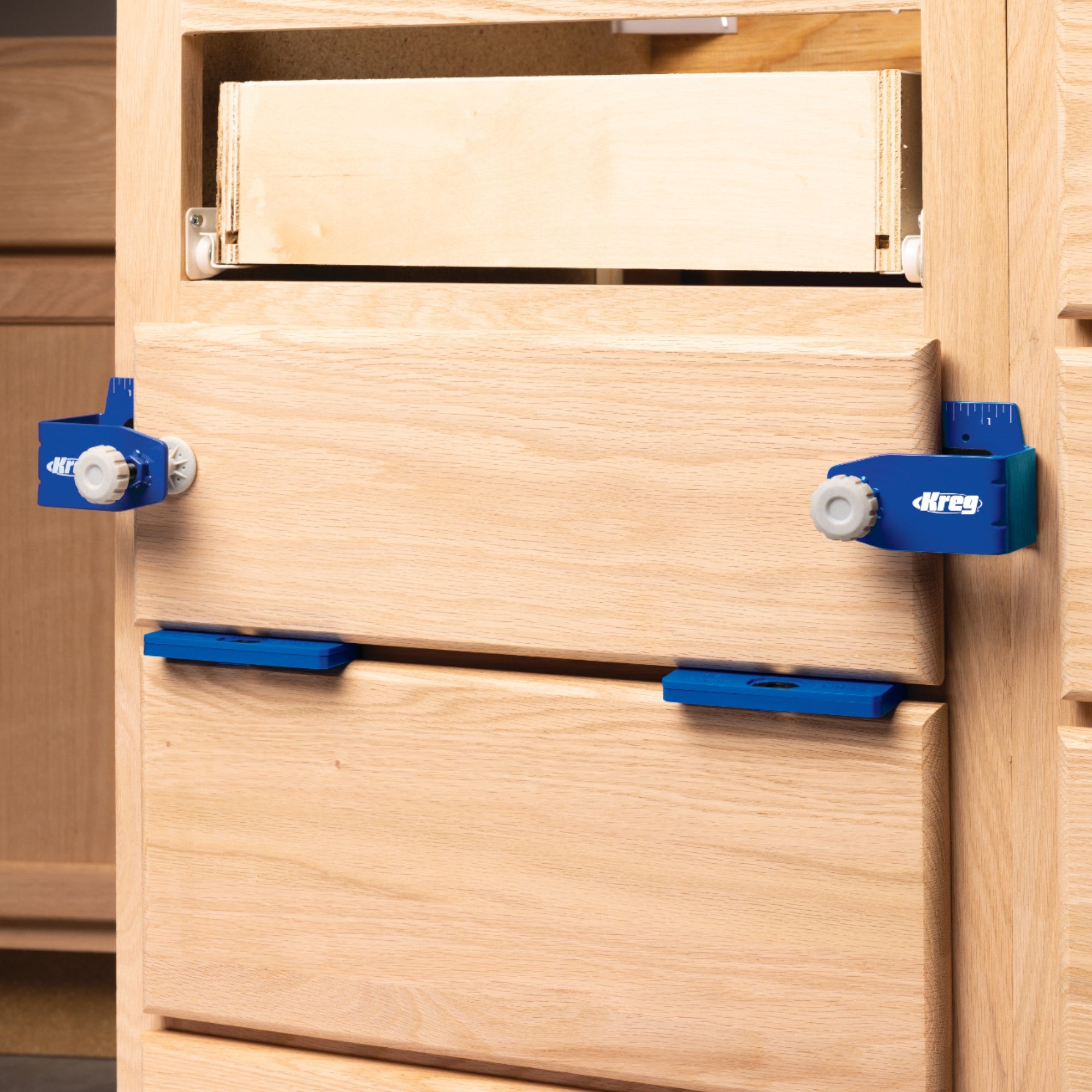

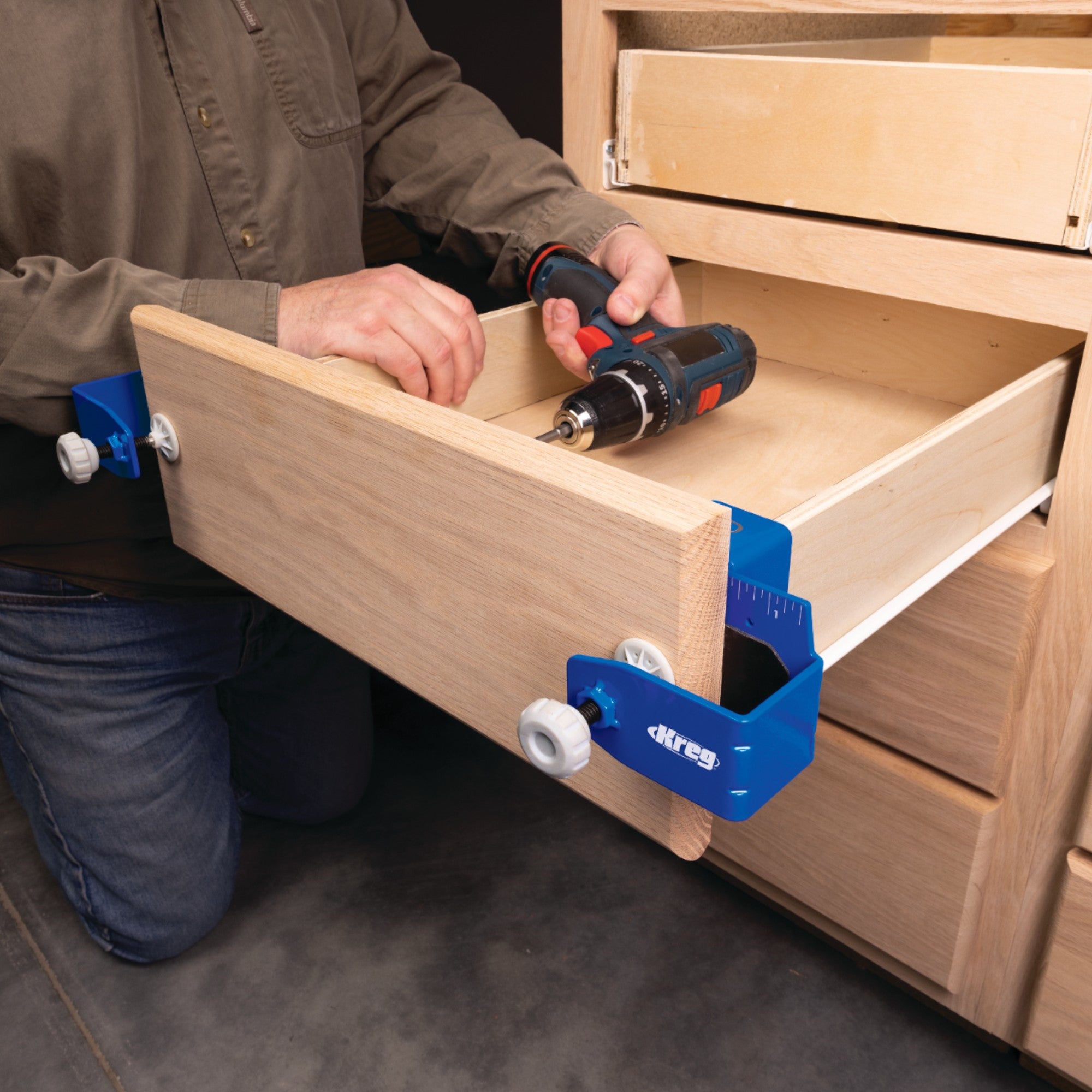

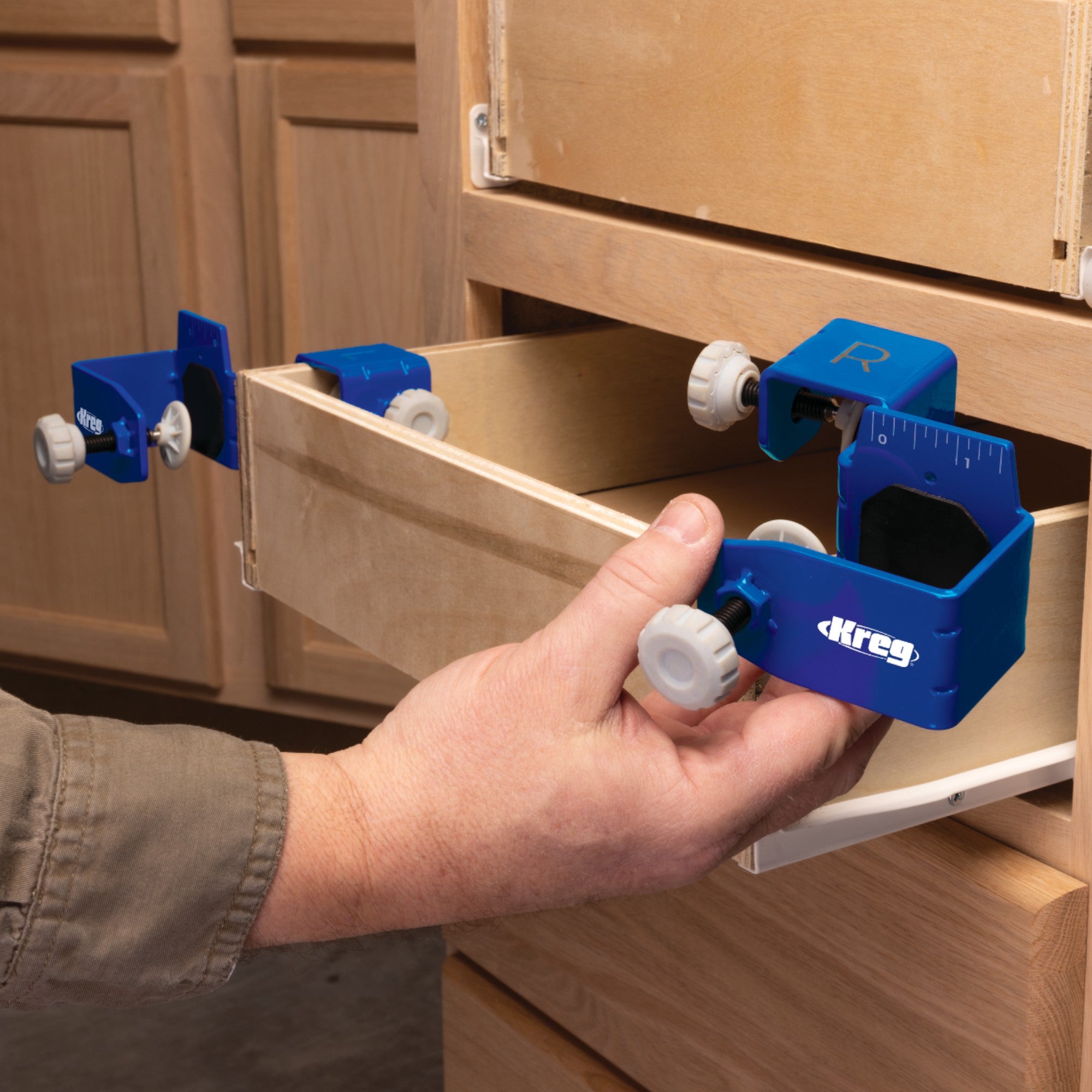

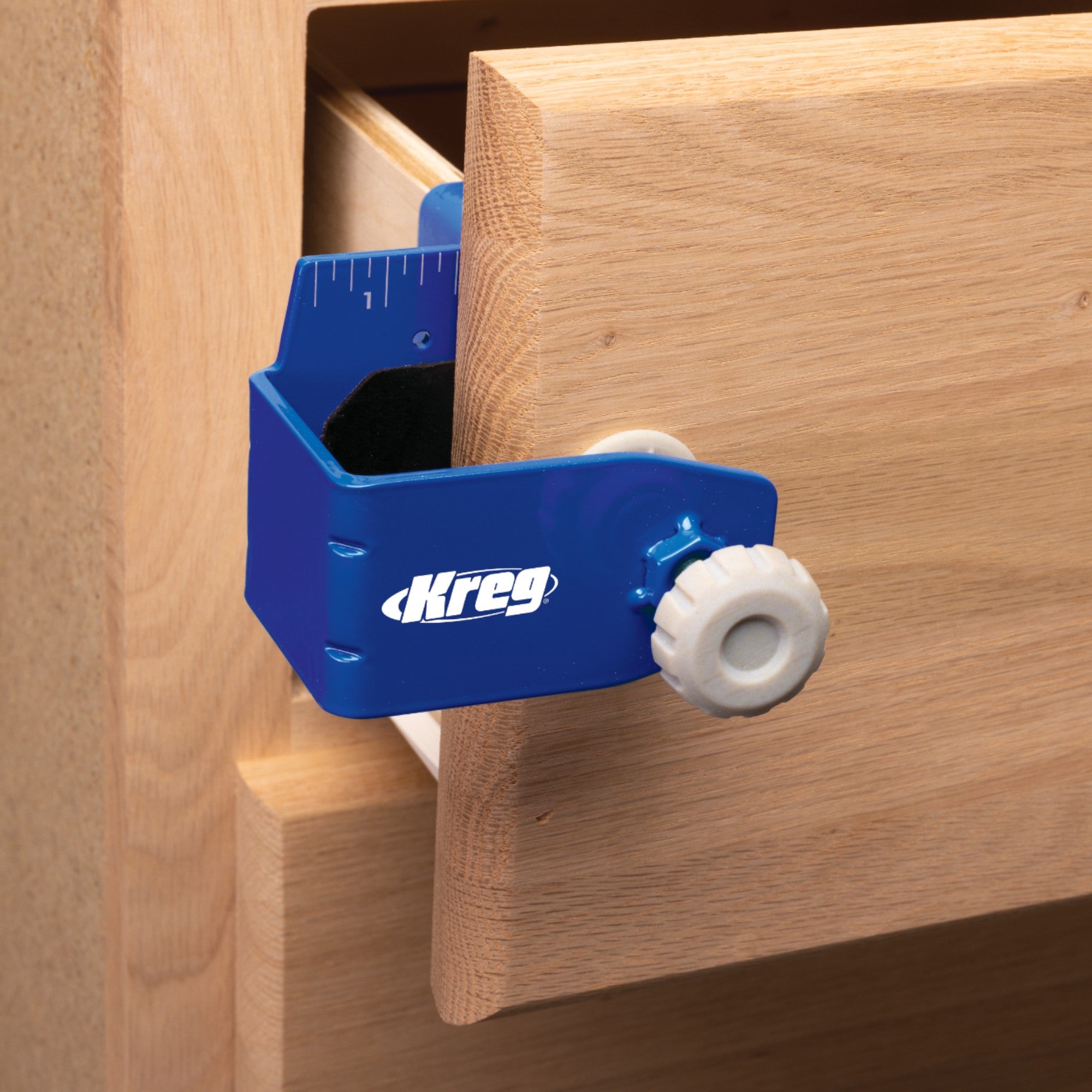

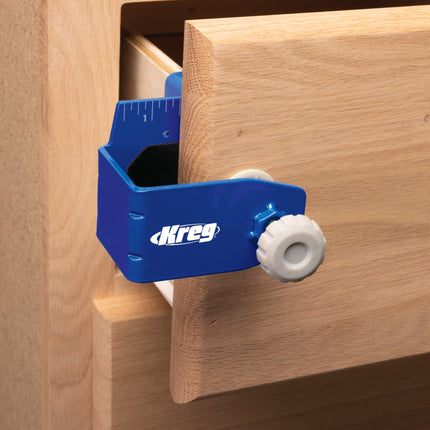

The Kreg KCS-DFMT-PRO drawer front assembly tool set is the ideal solution for precise and efficient work when assembling drawer fronts. Thanks to the large screw handles and the clearly visible scales, the tool is particularly easy to use and enables reliable alignment and fixing of the drawer fronts. The sturdy steel construction with thick steel and ribbed corners ensures durability and stability, while the GrippMaxx non-slip surface protects the material and prevents slipping. With the included spacer plates, the drawer fronts can be aligned parallel and precisely. The 19.05 mm thick spacer plate can be used flexibly across all three surfaces, offering additional versatility. Alignment markings ensure maximum accuracy and the large twist handles make it easy to tighten and loosen the tool. The set includes 7 spacers that allow for exact positioning on any project.
Technical Data:
- Manufacturer: Kreg
- Manufacturer's designation: KCS-DFMT-PRO
- Material: steel, plastic, rubber
- Spacer plates: 2x 2.4 mm / 2x 3.175 mm / 2x 6.35 mm / 1x 19.05/38.1/100.15 mm
- Drawer side thickness: max. 30 mm
- Double drawer thickness: max. 36 mm
- For commercial use, please observe the building regulations!
