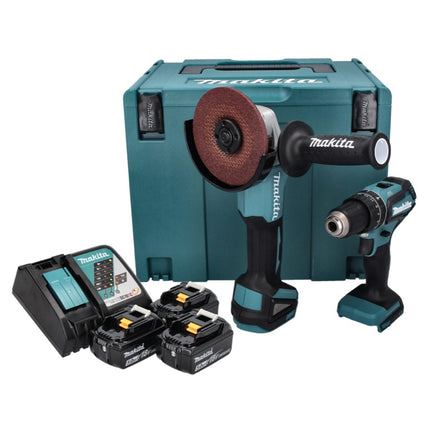

Scope of Delivery:
- 1x Makita DHP 485 cordless impact drill
- 1x Makita DGA 504 cordless angle grinder
- 1x Makita 125mm grinding disc (A-80656)
- 1x assembly tool
- 1x additional handle
- 3x Makita BL 1830 B 18 V 3.0 Ah battery
- 1x Makita DC 18 RC charger
- 1x Makita Makpac
- 1x universal insert
Product Description:
The Makita DHP 485 impact drill with 2-speed all-metal planetary gearbox has an impact mechanism that can be switched off. The integrated brushless motor ensures greater endurance, a longer service life and a more compact design. With bright LED. This impact drill driver is also particularly easy to handle thanks to its compact, short design. The speed can be sensitively adjusted. The DGA 504 is designed for grinding, sanding and cutting metal and stone without the use of water. It is a very handy, 18 volt, Li-Ion battery-powered angle grinder for cutting discs up to 125 mm in diameter. The Automatic Speed Control automatically regulates high speeds for cutting work or high torque for grinding work, depending on requirements. The brushless motor ensures greater endurance, a longer service life and a more compact housing. A restart lock prevents unintentional starts after the battery has been replaced, and an integrated LED warns of decreasing battery voltage and overload. The motor is also protected by overload protection. The machine also has a juice start function. The DGA504 is a very handy, powerful angle grinder for demanding, professional applications.
Technical Data:

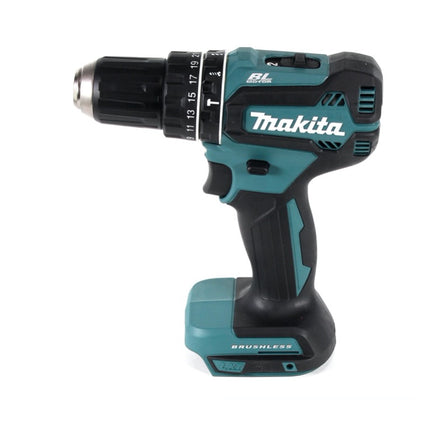

- DHP 485:
- Battery voltage: 18 V
- Max. Torque (soft): 25 Nm
- Max. Torque (hard): 50 Nm
- Motor type: brushless
- Idle speed 1st gear: 0-500 min-1
- Idle speed 2nd gear: 0-1900 min-1
- Idle speed 1st gear: 0-7500 min-1
- Idle speed 2nd gear: 0-28500 min-1
- Drill Ø wood/steel/stone: 38/13/13 mm
- Drill chuck clamping width: 1.5-13 mm
- Dimensions (LxWxH): 182x79x255 mm
- Weight incl. packaging: 1410 g

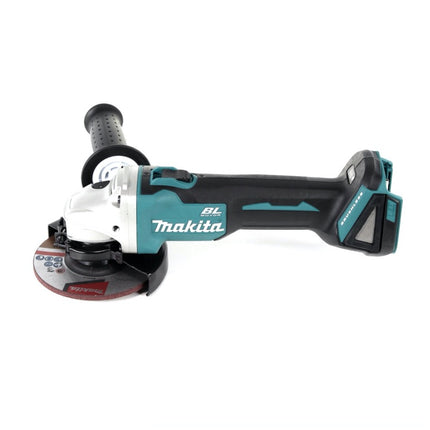

- DGA 504:
- Battery voltage: 18 V
- Grinding disc diameter: 125 mm
- Motor type: brushless motor
- Idle speed: 8500 rpm
- Bore: 22.23 mm
- Dimensions (LxWxH) mm: 350x141x130
- Weight: 2.3 kg
- Sound pressure level: 79 dB (A)
- Deviation (K): 3 dB (A)
- Vibration load (surface grinding with normal side grip): 6.5 m/s2
- Vibration load (surface grinding with anti-vibration side handle): 6.0 m/s2
- Vibration load (blade grinding): 2.5 m/s2 or less
- Deviation (K): 1.5 m/s2
- For commercial use, please observe the building regulations!
