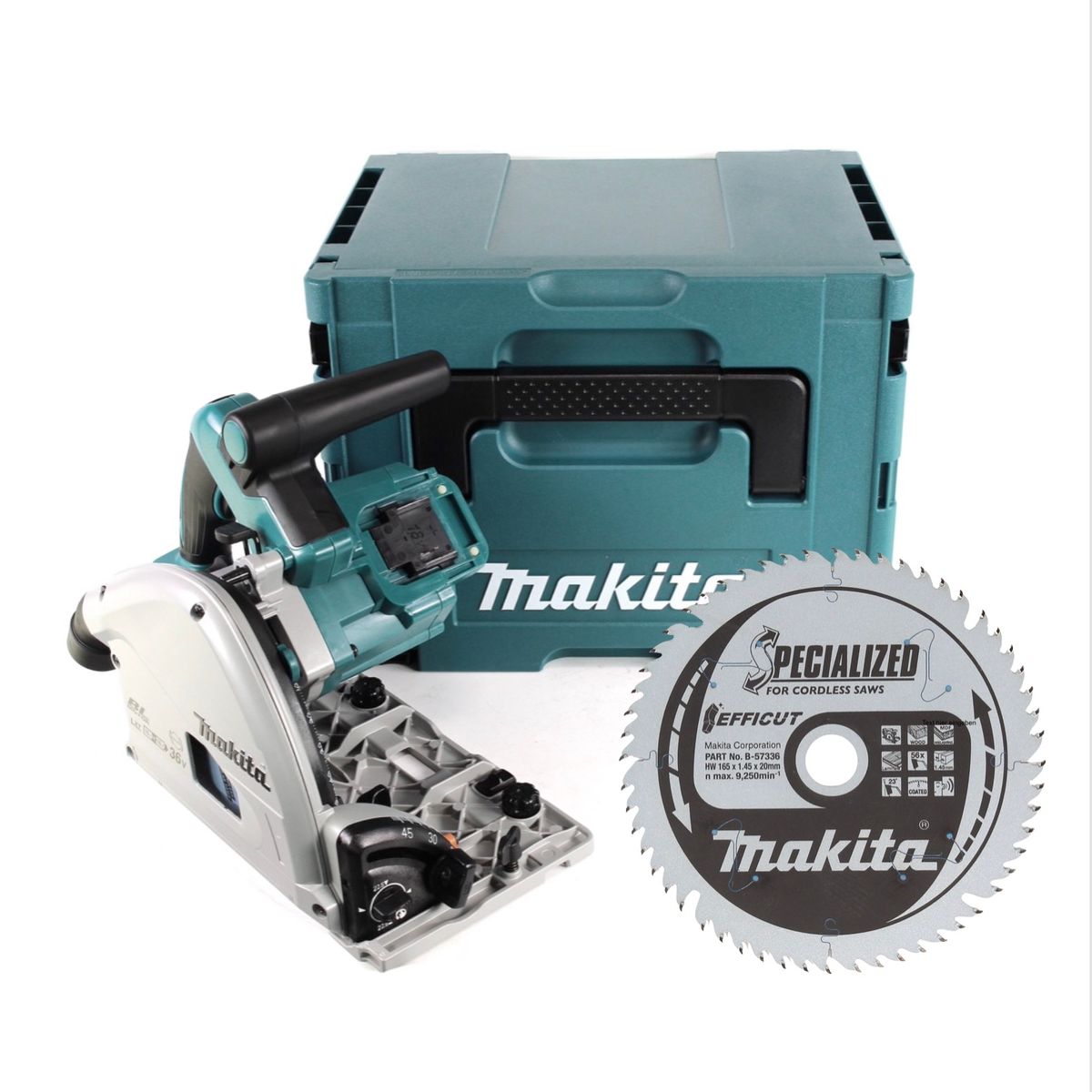

Scope of Delivery:

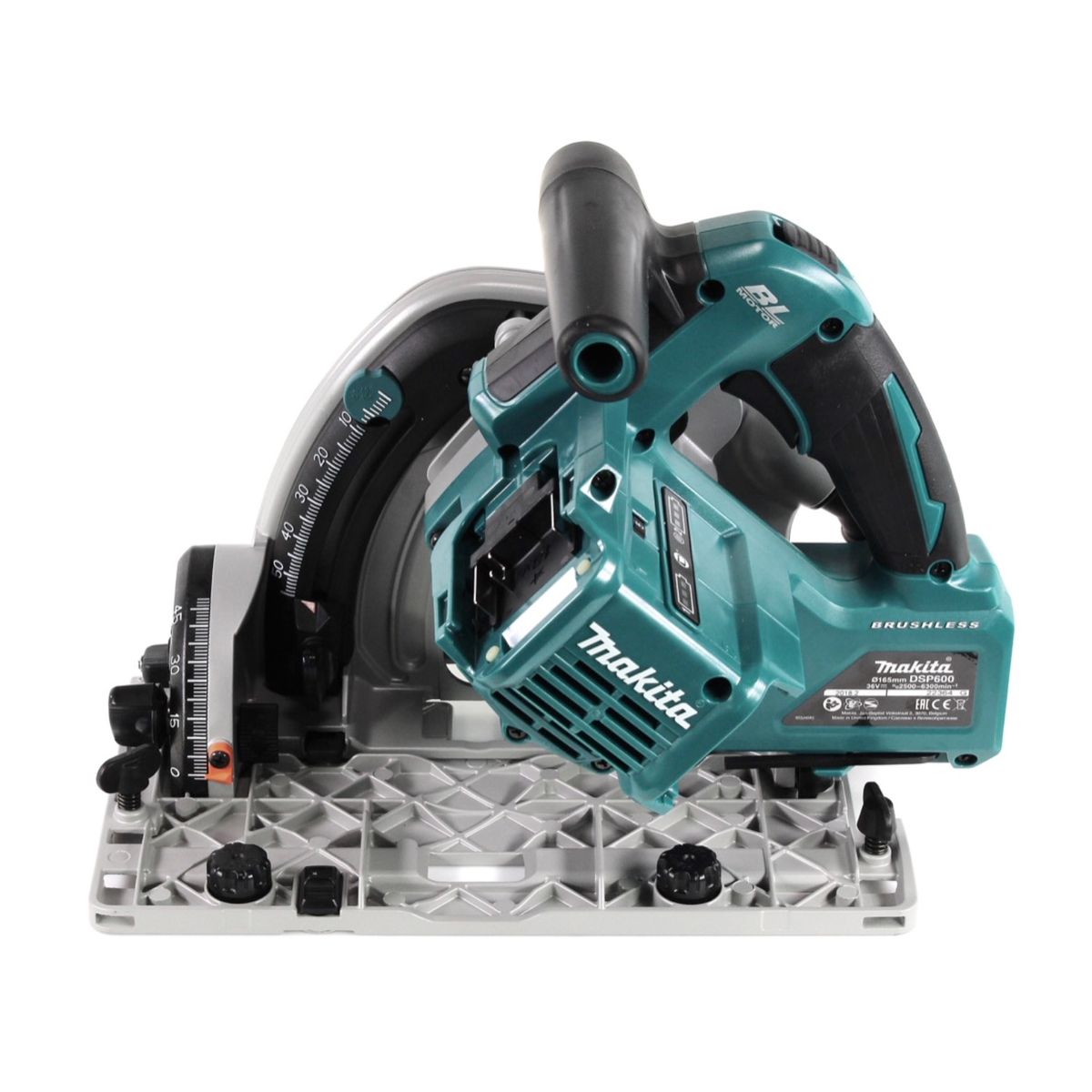

- 1x Makita DSP 600 cordless plunge-cut saw
- 1x Makita HM saw blade D 165 mm

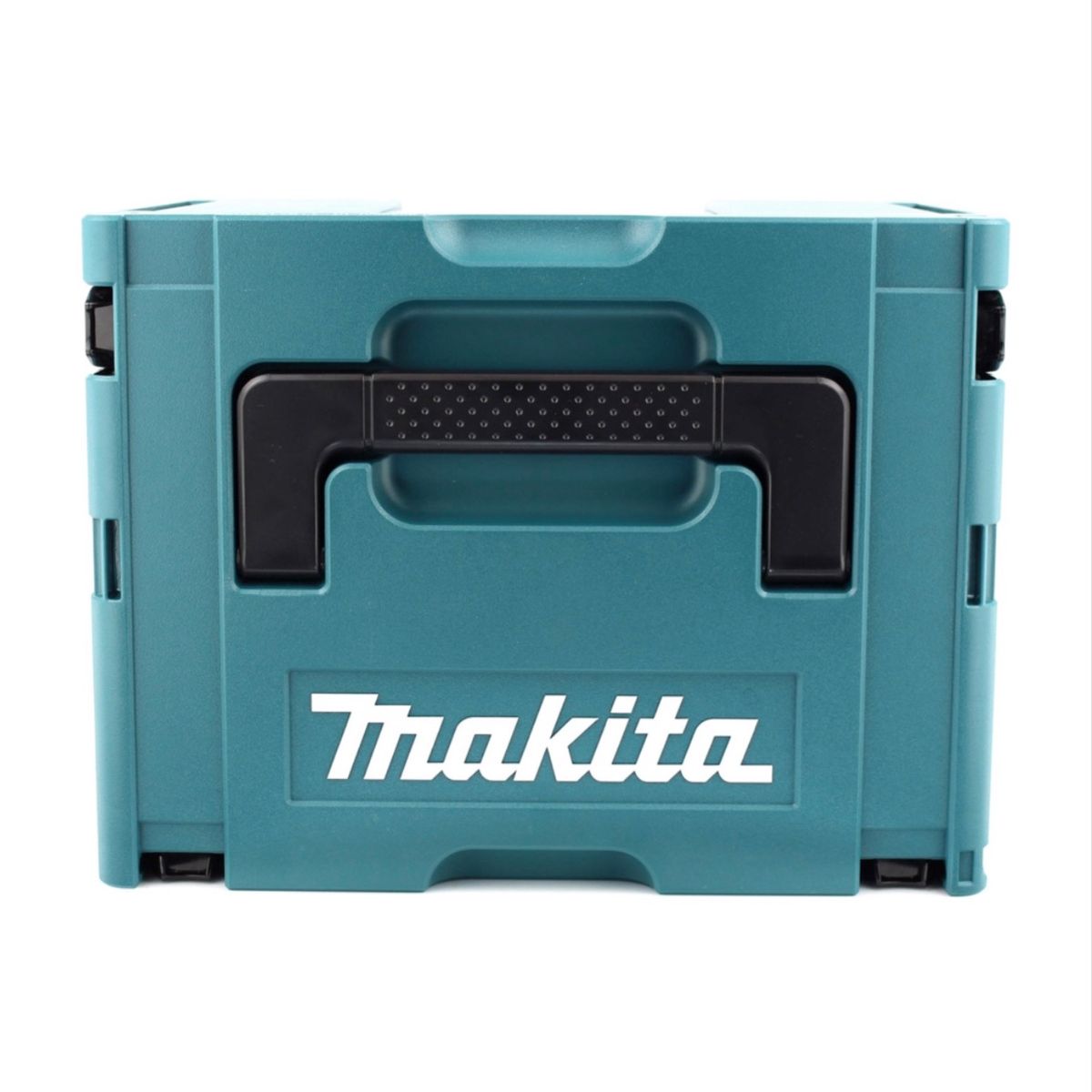

- 1x Makita Makpac size 4
- 1x universal insert

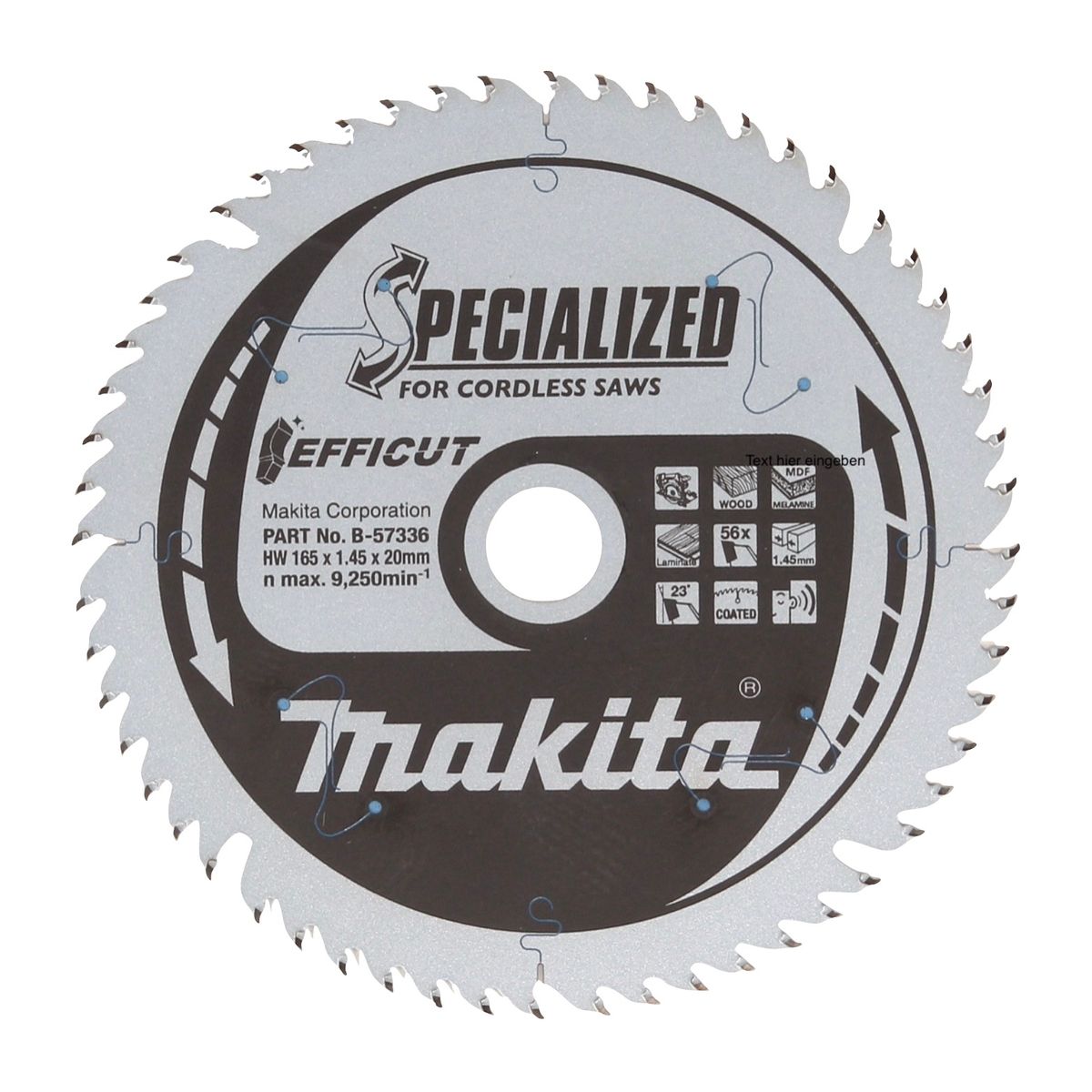

- 1x Makita EFFICUT circular saw blade for wood 165 x 20 x 1.45 mm 56 teeth ( B-57336 )
- without battery, without charger
Product Description:
The power tool is specially designed for making plunge cuts. The tool is also intended for longitudinal and cross cuts in wood. If the tool is fitted with a regular circular saw blade, it can be used for sawing aluminium, plastic, mineral plastic and similar materials. The cordless plunge-cut saw impresses with its brushless motor, which stands for increased endurance, longer service life, more compact design and increased performance. The plunge-cut circular saw has an adjustable speed, constant electronics, soft start and overload protection, which protects the motor. The circular saw has automatic torque drive technology that automatically regulates the speed during operation to achieve optimum performance depending on requirements. The plunge-cut saw has a quick angle setting for -1°, 22.5° and a quick preselection of 45° or 48° as the maximum tilt angle. The cutting point remains in exactly the same position for all angle settings. The scribing mode ensures a tear-free cut. Even at the highest tilt angle, the DSP 600 does not tip off the guide rail. The saw is compatible with Makita guide rails. The Makita EFFICUT circular saw blade is suitable for woodworking with hand and table saws and is battery and motor-friendly. The particularly thin, optimally aligned base body guarantees reliable straight cutting. The finely ground teeth and extra clean technology ensure clean cutting results and a long service life for the saw blade.
Technical Data:
- Manufacturer: Makita
- Manufacturer's designation: DSP 600
- Battery voltage: 36 V ( 2x18 V )
- Motor product type: brushless
- Saw blade Ø / bore: 165 x 20 mm
- Max. Mitre: left / right: 0/48 °
- Max. Cutting capacity 90°: 56 mm
- Max. Cutting capacity 45°: 40 mm
- Max. Cutting capacity 48°: 38 mm
- Idle speed: 2500-6300 min-1
- Saw blade Ø / bore: 165/20 mm
- Dimensions (LxWxH): 346 x 241 x 272 mm
- Net weight: 4.4 - 5.1 kg
- Sound pressure level: 92 dB(A)
- Sound power level: 103 dB(A)
- Uncertainty (K): 3 dB(A)
- Vibration emission (cutting wood): 2.5 m/s2 or less
- Vibration emission (cutting metal): 2.5 m/s2 or less
- Measurement uncertainty (K): 1.5 m/s
- For commercial use, please observe the building regulations!
