Scope of Delivery:
- 1x Metabo KHE 3560 Q combihammer
- 1x hammer chuck for tools with SDS plus insertion end
- 1x quick-action drill chuck for tools with cylindrical shank
- 1x additional handle
- 1x Drilling depth stop
- 1x metaBOX 185 XL
Product Description:

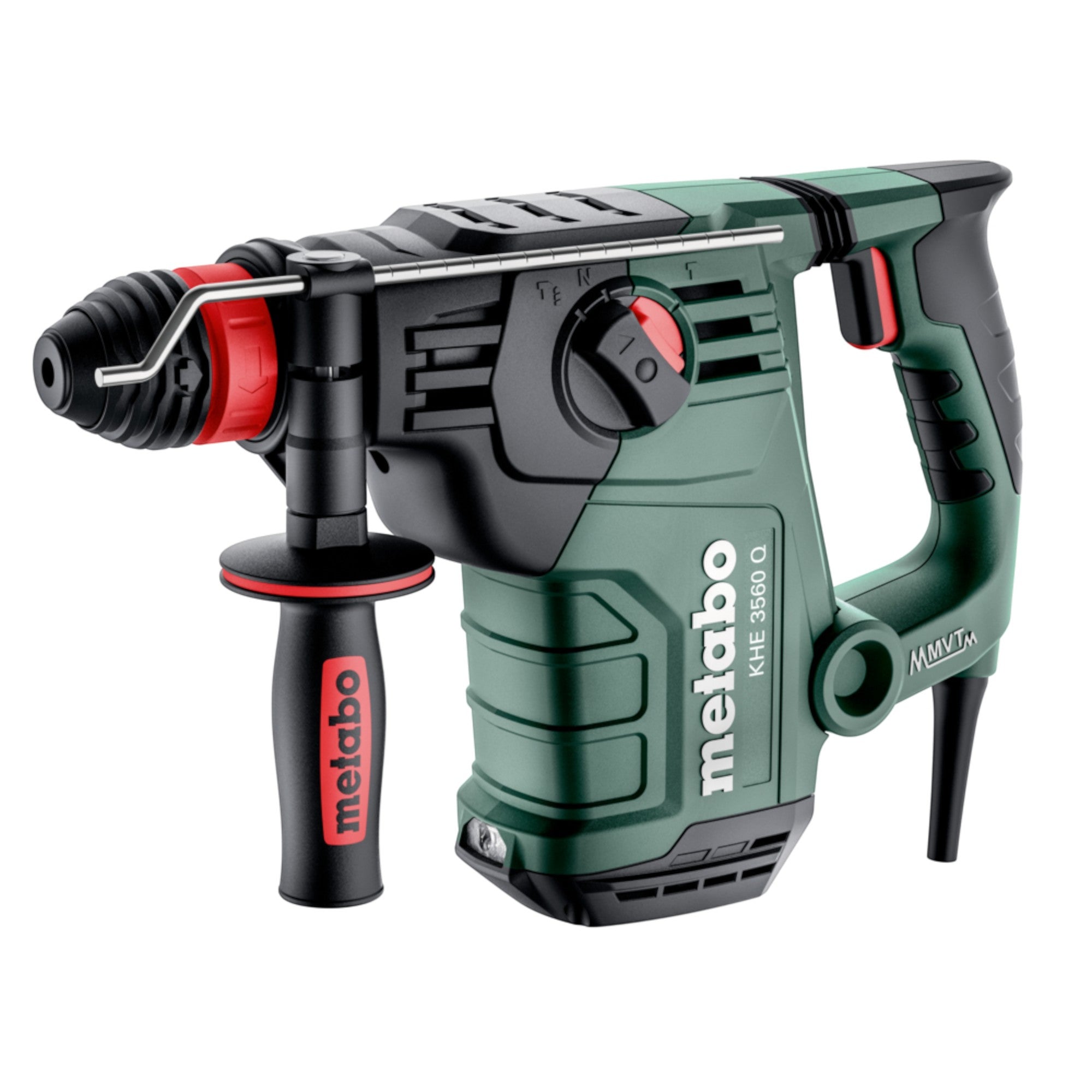

The Metabo KHE 3560 Q combihammer is the most powerful SDS-plus combihammer from Metabo and was developed for fast drilling and efficient chiselling in concrete and masonry. With its three functions - hammer drilling, drilling and chiselling - it offers maximum versatility. The Metabo Quick System enables a quick change between SDS-Plus hammer chuck and quick-action drill chuck, making it easy to adapt to different applications. The Metabo VibraTech (MVT) damping system significantly reduces vibrations and thus protects the user's health. Thanks to optimised ergonomics with a centre of gravity close to the hand, the tool sits perfectly in the hand. The combihammer also offers anti-clockwise rotation to effortlessly loosen jammed tools, as well as the option to reduce the speed and impact energy, for example when working with sensitive materials. Double safety when the drill is jammed is ensured by mechanical decoupling and a sensor-controlled switch-off. Other functions such as restart protection, overload protection, an integrated LED work light and a carbon brush wear indicator round off the powerful overall package. The KHE 3560 Q is supplied in the robust metaBOX for safe transport and organised storage.
Technical Data:
- Manufacturer: Metabo
- Manufacturer designation: KHE 3560 Q
- Manufacturer number: 600811500
- Max. Single impact energy (EPTA): 4.2 J
- Max. Impact speed: 4350 /min
- Rated input power: 1050 W
- Drill Ø concrete with hammer drill bits: 32 mm
- Idle speed: 0 - 810 /min
- Speed at nominal load: 810 /min
- Tool holder: SDS-plus
- Clamping neck diameter: 60 mm
- Weight without mains cable: 5 kg
- Cable length: 3.9 m
- Hammer drilling concrete: 17.2 m/s²
- Measurement uncertainty K: 1.5 m/s²
- Chiselling: 12.8 m/s²
- Measurement uncertainty K: 1.5 m/s²
- Sound pressure level: 93 dB(A)
- Sound power level (LwA): 101 dB(A)
- Measurement uncertainty K: 3 dB(A)
- For commercial use, please observe the building regulations!
