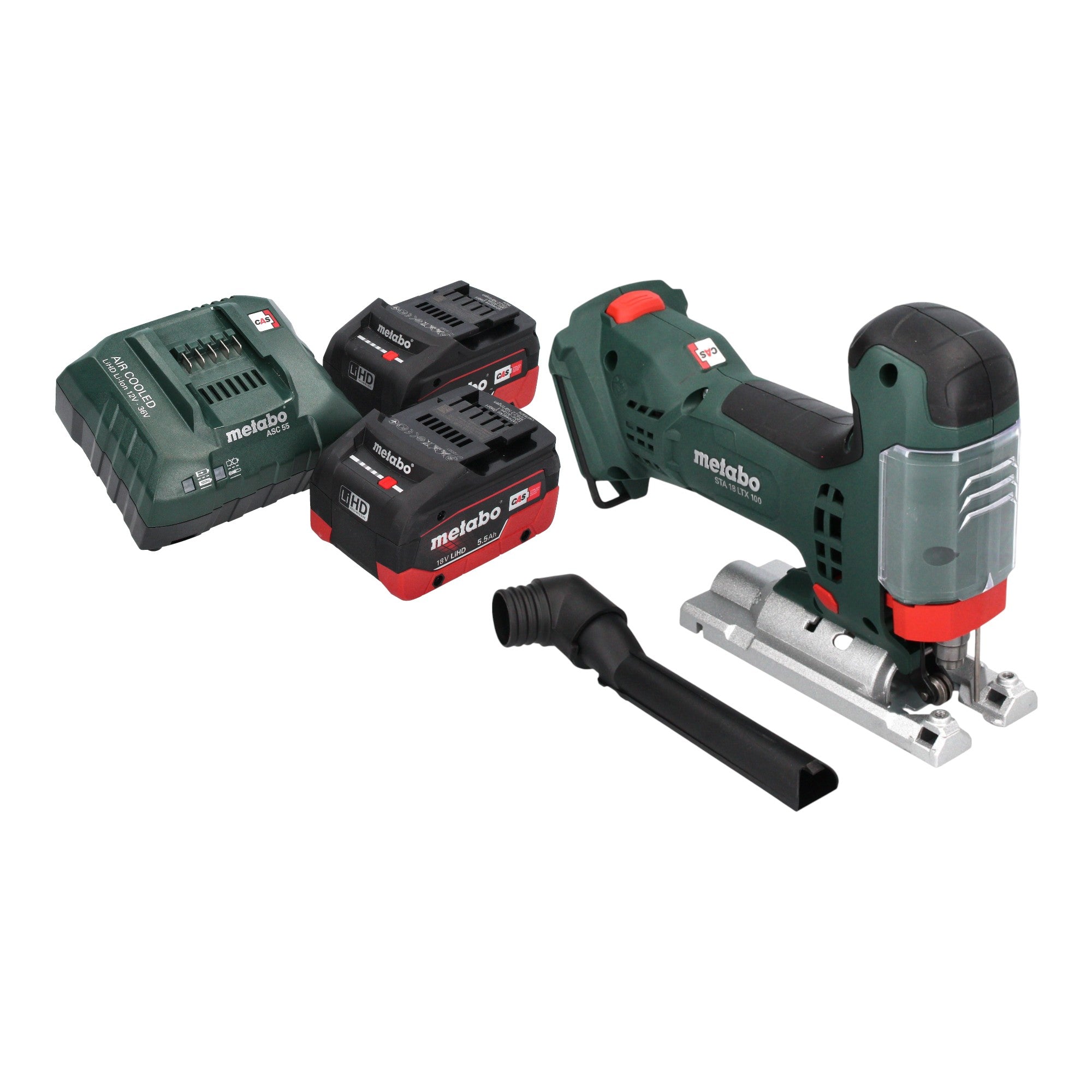

Scope of Delivery:

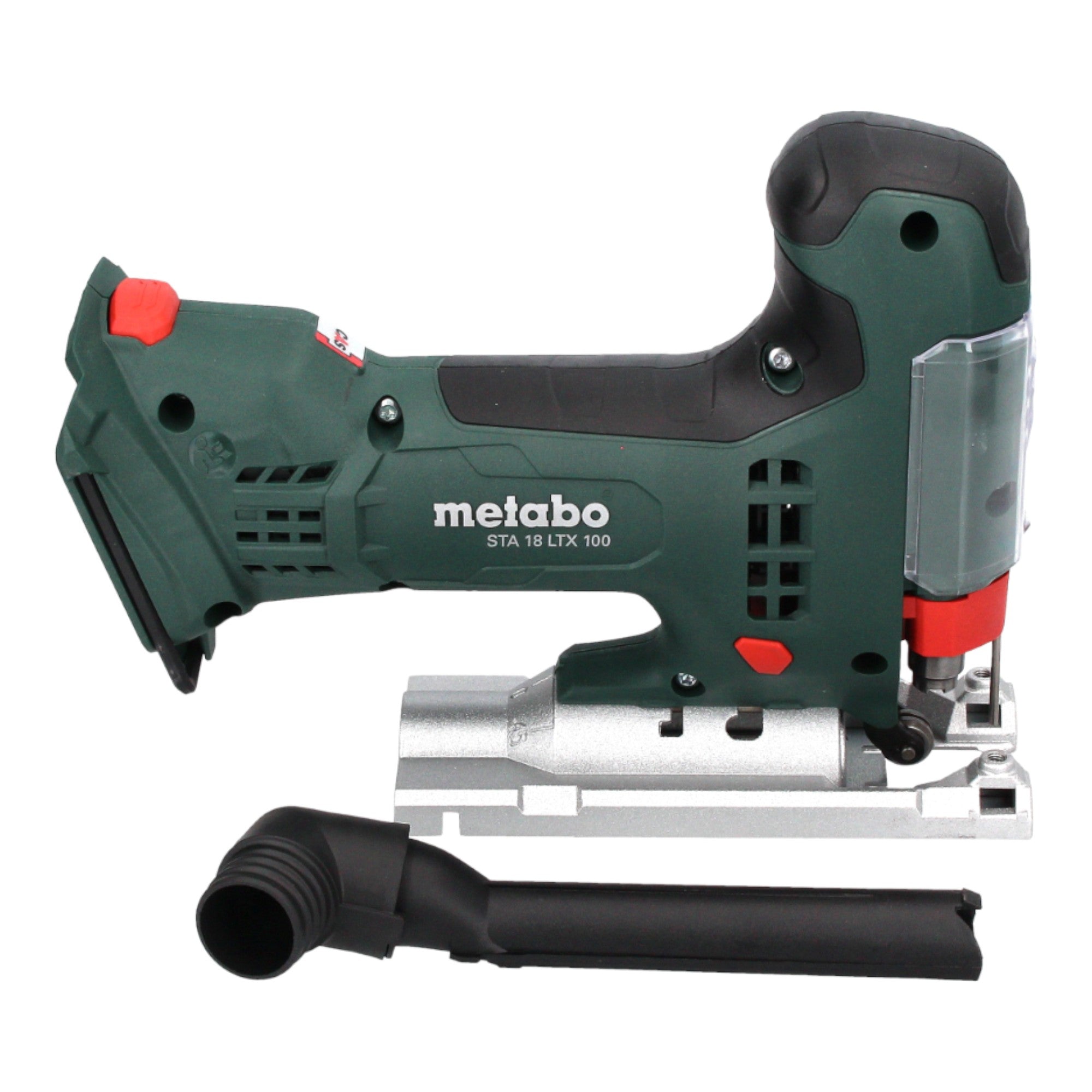

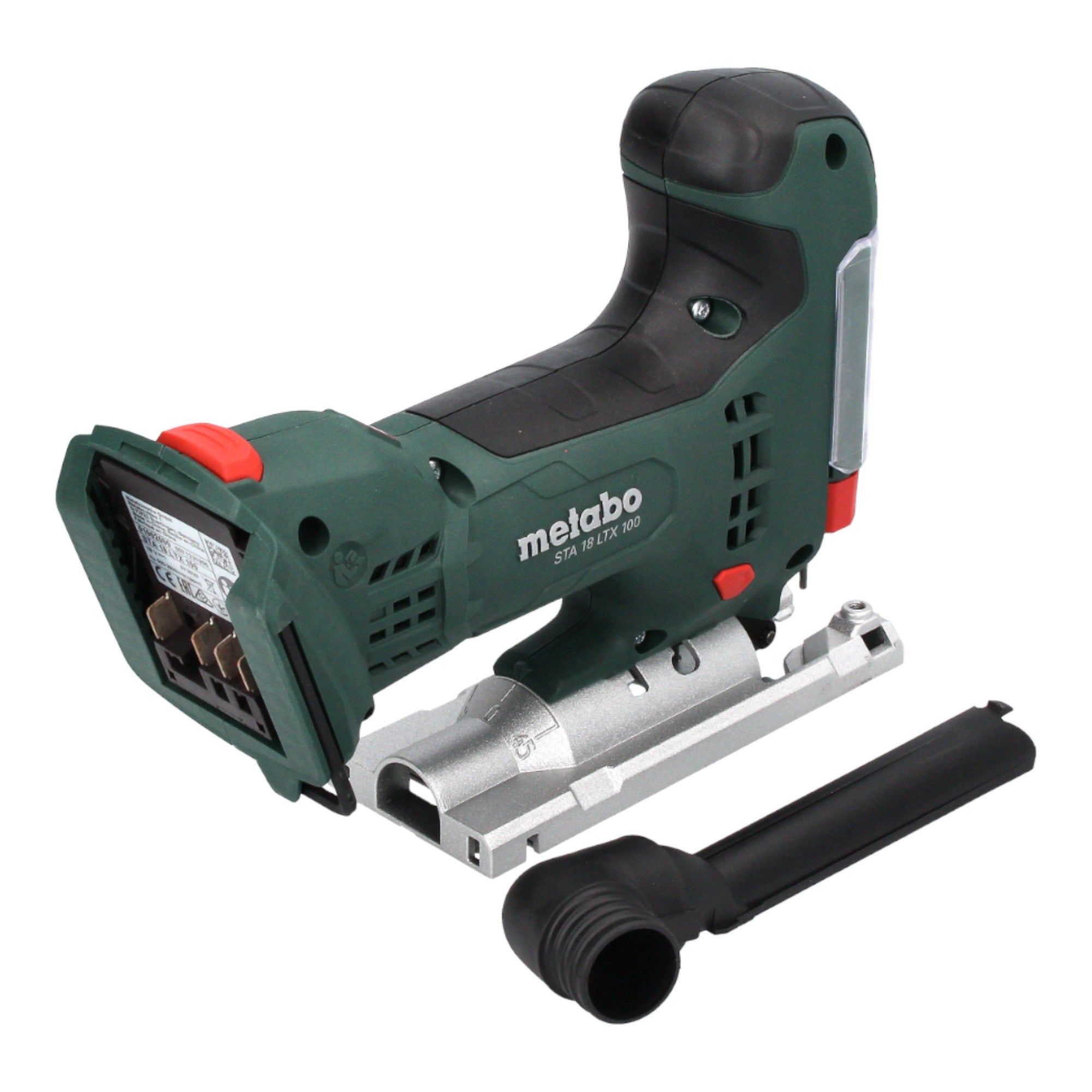

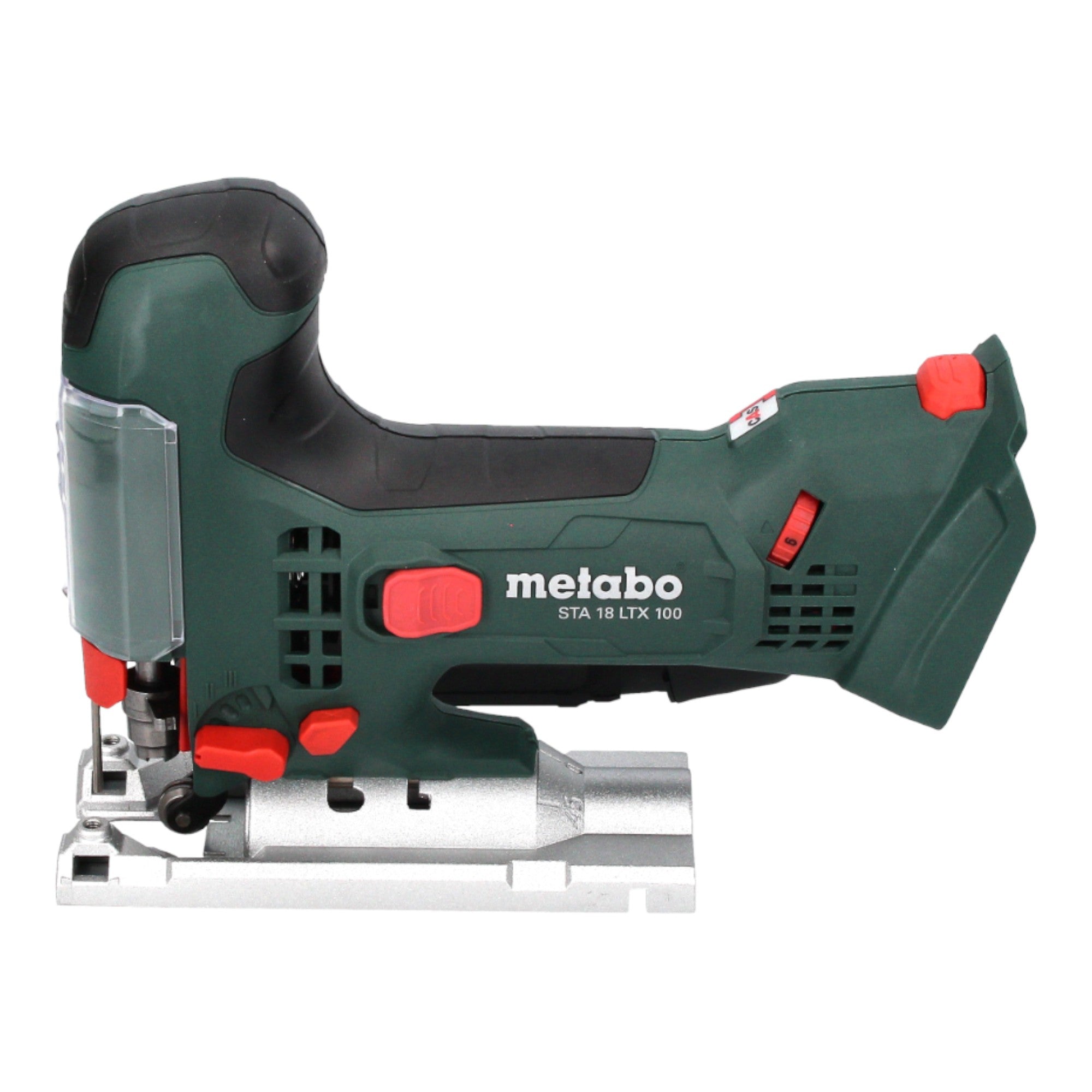

- 1x Metabo STA 18 LTX 100 cordless jigsaw
- 1x extraction nozzle
- 1x chip deflection plate
- 1x hexagon wrench

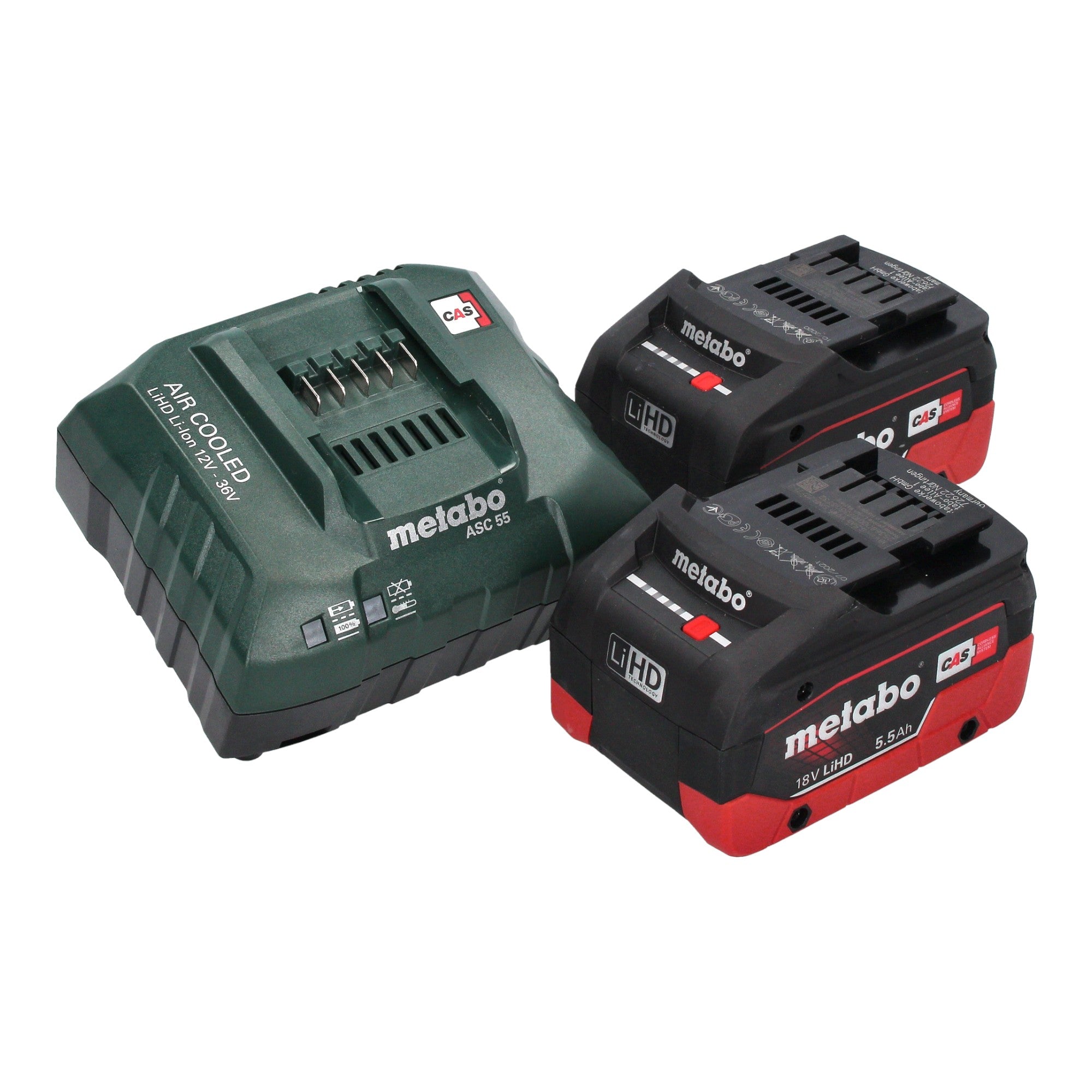

- 2x Metabo LiHD battery pack 18V 5.5 Ah Li-ion battery
- 1x Metabo ASC 55 charger
Product Description:
The Metabo STA 18 LTX 100 cordless jigsaw is a powerful precision tool for demanding sawing work, which cuts even hard materials effortlessly thanks to its brushless high-performance motor with consistently high stroke rate under load. The jigsaw impresses with its excellent ergonomics, a soft grip surface for a secure hold and comfortable working in any position, and a low-lying saw blade guide that enables precise, straight cuts. Thanks to Metabo Quick, the saw blade can be changed quickly and without tools – including automatic ejection. An efficient chip blowing function ensures a clear view of the cutting line, while the integrated, switchable LED work light ensures optimum visibility even in poor lighting conditions – even when cutting from below. The integrated restart protection prevents accidental start-up after changing the battery, which further increases safety. The durable design with a robust die-cast aluminium gear housing and optimised gear design guarantees a long service life – even in continuous use. A wet/dry vacuum cleaner can be connected for clean working, and the supplied protective plate and chip guard enable tear-free and surface-friendly cuts with ease. The jigsaw is part of the CAS (Cordless Alliance System) and is therefore compatible with all 18V batteries and chargers from the CAS brands – for maximum flexibility and system freedom.
Technical Data:
- Manufacturer: Metabo
- Manufacturer's designation: STA 18 LTX 100
- Battery voltage: 18 V
- Cutting depth in wood: 100 mm
- Cutting depth in non-ferrous metal: 25 mm
- Cutting depth in sheet steel: 10 mm
- Swivel range from/to: - 45 / + 45 °
- Pendulum stroke stages: 4
- Stroke rate at idle: 550 - 2800 rpm
- Saw blade stroke: 22 mm
- Weight without battery pack: 1.9 kg
- Weight with battery pack: 2.3 kg
- Vibration when sawing wood: 8.8 m/s²
- Vibration measurement uncertainty K: 1.5 m/s²
- Vibration when sawing metal: 11.8 m/s²
- Vibration measurement uncertainty K: 1.5 m/s²
- Noise emission sound pressure level: 83 dB(A)
- Noise emission sound power level (LwA): 94 dB(A)
- Noise emission measurement uncertainty K: 3 dB(A)
- For commercial use, please observe the building regulations!
