Scope of Delivery:

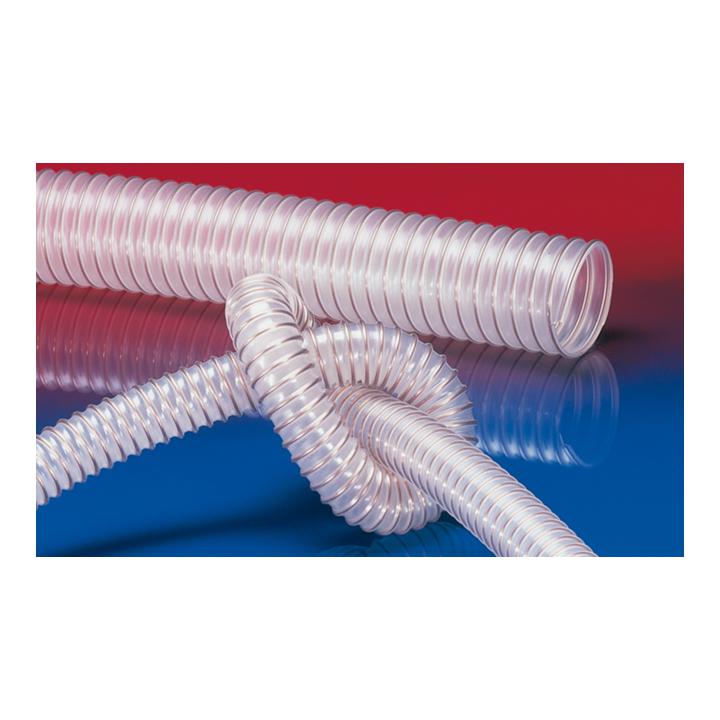

- AIRDUC® PUR 350 FOOD-AS suction and delivery hose Inner Ø 100-102 mm
Product Description:

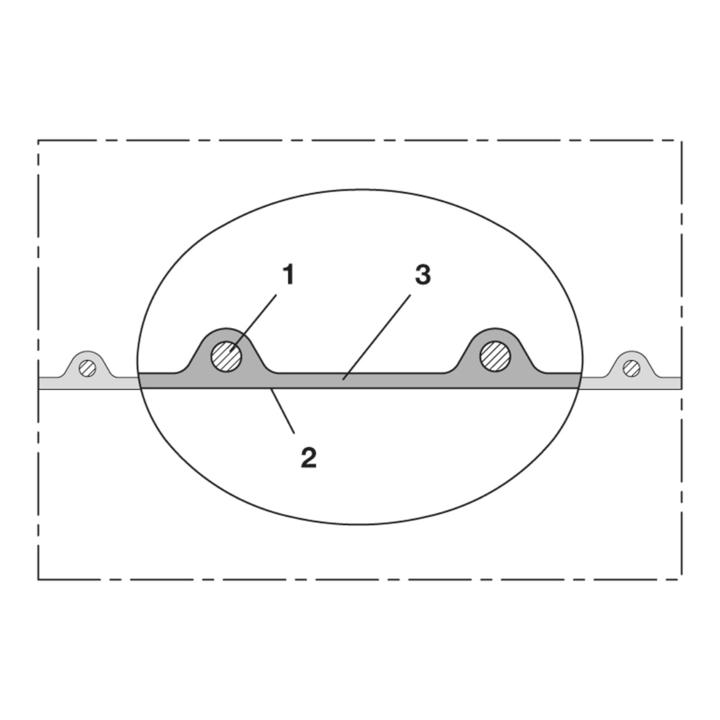

Applications: flexible hose for abrasive powder, bulk material, granulate, gases, conveying of dry and frozen food and pharmaceuticals, mixer, dryer, packaging machine, big bag filling/emptying, mill, potentially explosive area, clean room ventilation, semiconductor manufacturing machine, paper industry: waste water, exhaust air, medical technology, healthcare: Cable protection, air and suction hose, municipal vehicle: lawn mower, embankment mower, leaf vacuum/leaf collector Properties: medium-weight design, highly abrasion-resistant, food-safe wall acc: FDA FCN 21 CFR 177.1680 and 177.2600, odourless and tasteless, resistant to microbes and hydrolysis, good resistance to oil, petrol and chemicals, very good low-temperature flexibility, wall permanently antistatic: volume resistance and surface resistance Construction: 1. Wall: permanently antistatic premium ether polyurethane (Pre-PUR ® ), 3. wall thickness approx. 0.7 mm Temperature range: -40 to 90 °C, briefly up to 125 °C Delivery variants: other versions, dimensions and lengths available on request
Technical Data:
- Bending radius: 68.00mm
- Physical state: Solid / gaseous
- OverpressureDIN 26057(50% elongation)(bar): 0.635 (1.41)
- Negative pressureDIN 26057(axially fixed)(bar): 0.135 (0.66)
For commercial use, please observe the building regulations!
