Scope of Delivery:

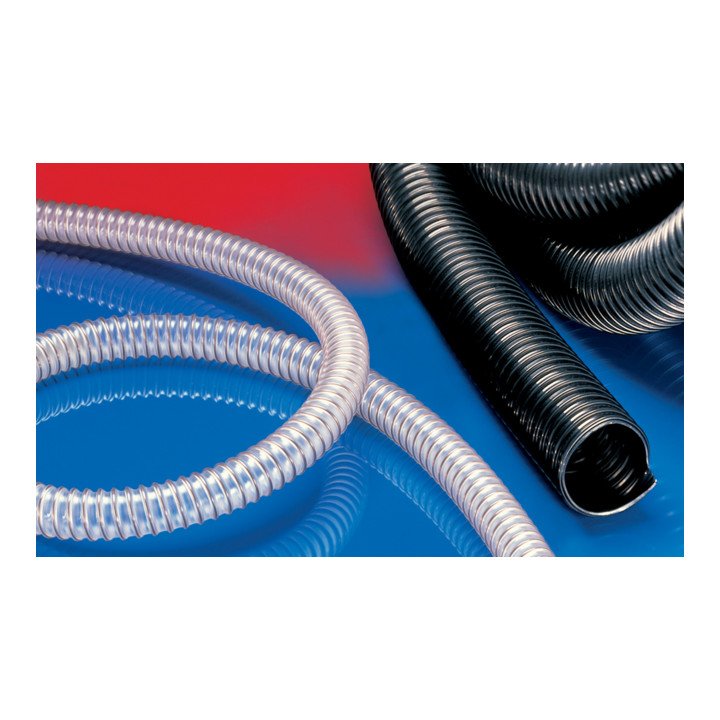

- AIRDUC® PUR 355 HT suction and delivery hose Inner Ø 75-76 mm
Product Description:

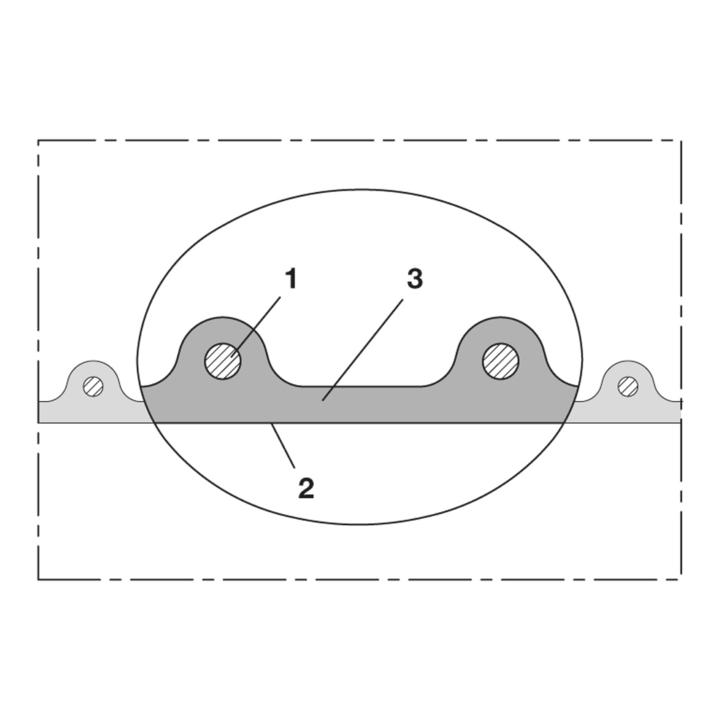

Applications: flexible hose for high throughput of hot and abrasive powder, bulk material, granulate and for hot gases, plastics industry, conveying of granulates and powder: granulate conveyor, vacuum conveyor, suction conveyor, dosing system, big bag filling and emptying, shredder, grinder, extruder, injection moulding machine, film blowing system, cooling air at the extrusion tool, offset printing machine: air supply, air supply cabinet, textile industry, steam extraction: Steam iron, steam ironing machine, ironing press, raw material conveying hose for powder, granulates, sand, quartz, gravel, cullet and chips, compressor/compressor, side channel blower, vacuum pump, pressure pump, pump Features: Heavy-duty design, highly abrasion-resistant, very good heat resistance (better than comparable TPE and neoprene), increased pressure and vacuum resistance, good resistance to oil, petrol and chemicals, very good low-temperature flexibility, in accordance with DIN 26057 type 3, RoHS compliant, REACH compliant Construction: 1. Wall: patented special premium high-temperature polyurethane HT-PUR (Pre-PUR ® ), 3rd wall thickness approx. 1.4 - 1.5 mm Temperature range: -40 °C to 125 °C, briefly up to 150 °C Delivery variants: other versions, dimensions and lengths available on request
Technical Data:
- Bending radius: 81.00mm
- Physical state: Solid / Gaseous
For commercial use, please observe the building regulations!
