Scope of Delivery:

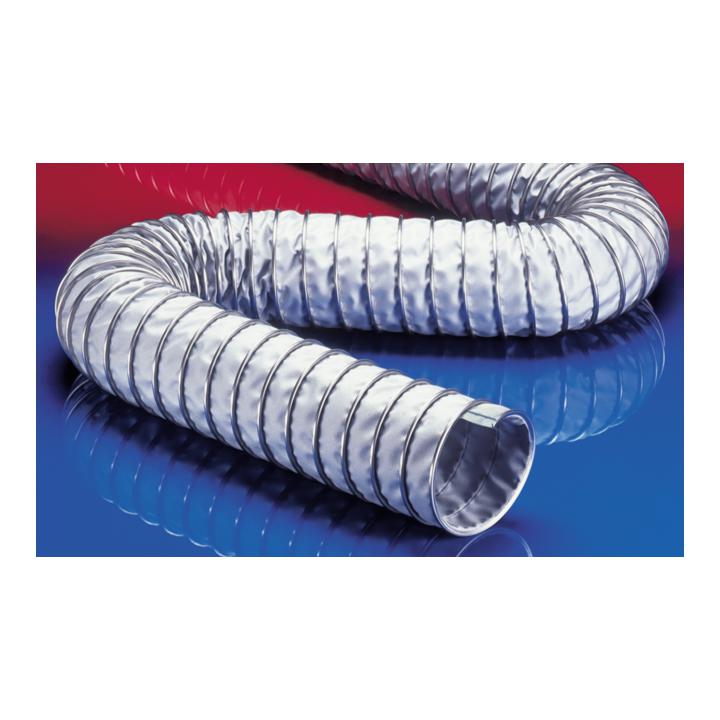

- Suction hose CP HiTex 481 inner Ø 400 mm
Product Description:

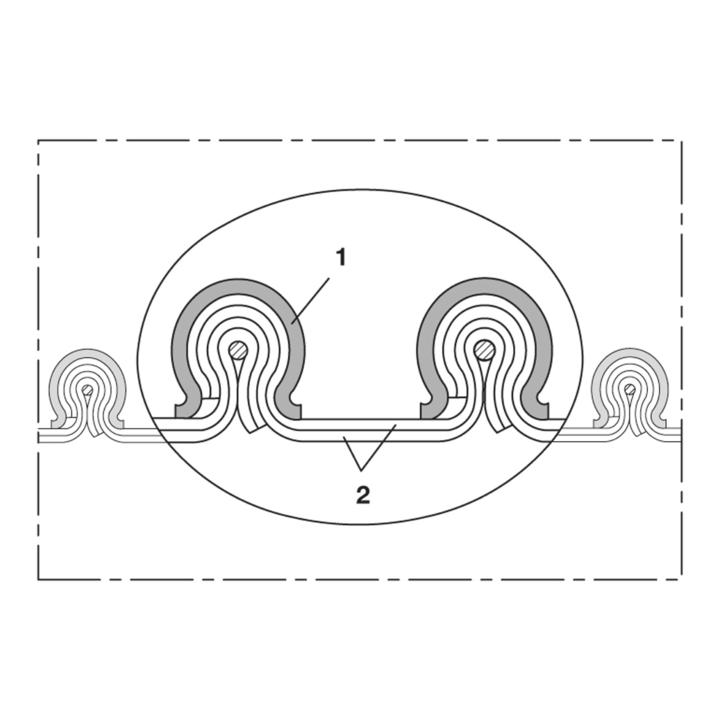

Applications: flexible hose for hot and cold gases, exhaust gas extraction, extraction of engine exhaust gases: Exhaust hose reels, suction slot ducts, above-floor/under-floor extraction systems, engine test benches, exhaust gas measurement, high-temperature extraction: Furnaces, foundries, blast furnaces, smelters, ceramics industry, glass industry, steelworks, aluminium smelters, bellows, expansion joint Properties: very good against flying sparks and welding spatter, abrasion protection due to external clamping profile, tension-resistant clamping of the wall in the clamping profile, very good heat resistance, flame-retardant in accordance with: DIN 4102-B1, RoHS compliant Construction: 1. clamping profile support spiral: completely stainless steel (INOX), 2. double-layer wall, wall: inside and outside reinforced with stainless steel wires and specially coated glass fabric Temperature range: -60 °C to 600 °C, briefly up to 700 °C Delivery variants: other versions, dimensions and lengths available on request
Technical Data:
- Bending radius: 173.00mm
- Physical state: Gaseous
For commercial use, please observe the building regulations!
