Scope of Delivery:

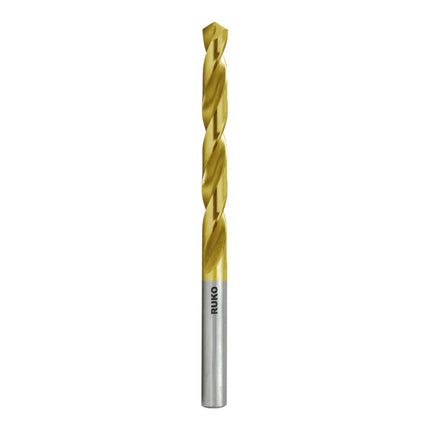

- Twist drill DIN 338 type N nominal Ø 12.5 mm
Product Description:
HSS - TiN-coated - DIN 338 - type N - point angle 118 ° - right-hand cutting - taper ground, from Ø 2.0 mm cross ground to DIN 1412 C - the fully ground twist drill has increased concentricity - achieves long tool life with increased cutting values - for steel, alloyed and unalloyed cast steel (only suitable to a limited extent up to 1100 N/mm² strength), grey cast iron, malleable cast iron, ductile cast iron and die cast iron, sintered iron, nickel silver, graphite, short-chipping aluminium alloys, brass and bronze - High-performance twist drill bit, suitable for all normal drilling work in common materials Further sizes available on request.
Technical Data:
- Cutting direction: right-hand cutting
- Feed rate in steel up to 800 N: 0.2 mm/rev
- Quality: profile ground
For commercial use, please observe the building regulations!
