Description

SKU: 16127
EAN: 4003530155116

Package contents:

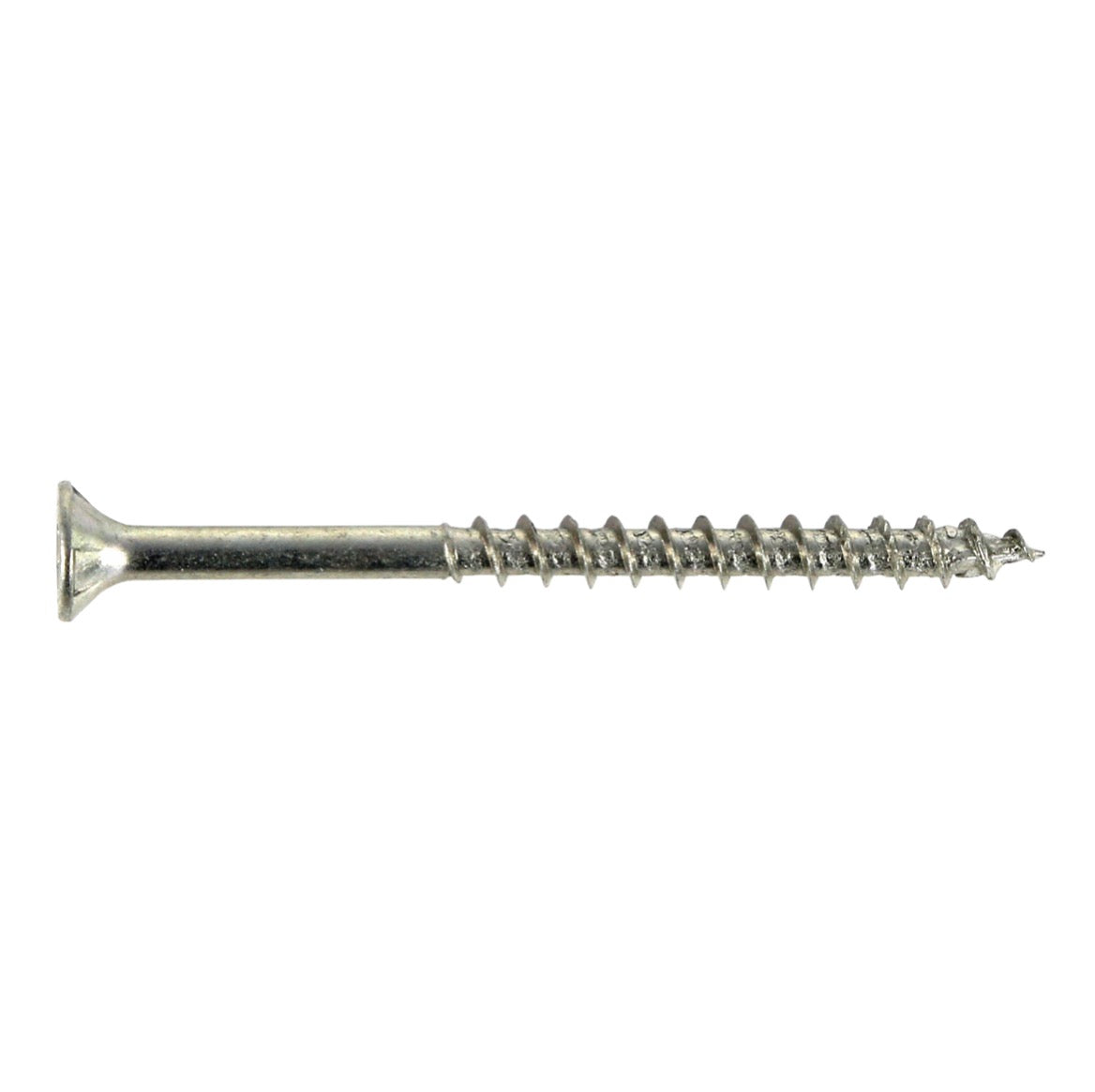

- 200x SPAX Universal Screws 5.0 x 100mm

Product description:

The Multi countersunk head universal screws with T-STAR plus receptacle from SPAX, ensure greater flexibility for the user owing to their universal applicability in different materials such as wood, plastic or sheet metal. The multi-head with recessed pocket segments, combined with the milling ribs, ensure that the screw is countersunk neatly and flush in wood. The braking ribs effectively prevent overtightening when working with metal fittings, creating a solid connection between the fitting and the component. The T-STAR plus (Torx) holder achieves greater power transmission to the screw, longer service life and faster threading of the screw with a better fit on the workpiece. The integrated 4CUT-point ensures screwing without pre-drilling (depending on the wood used), thanks to the square shape of the screw from the tip to the transition of the thread to the shaft. The 4CUT shape reduces splicing of the material and significantly reduces the screw-in torque. Moreover, the SPAX typical wave profile of the partial thread ensures easy and secure screwing. The new WIROX coating of SPAX also ensures a 20 times higher anti-corrosion protection and a significantly higher surface hardness than conventional bright zinc plating for screws, which means that the range of applications can be extended many times over in outdoor areas. The accustomed 100% "Made in Germany" quality of SPAX screws is certified by the TÜV with proof of origin through a complex test procedure and guarantees a high degree of safety and durability.

Technical specifications:

Finishing: WIROX
Head shape: countersunk head
Thread type: Partial thread

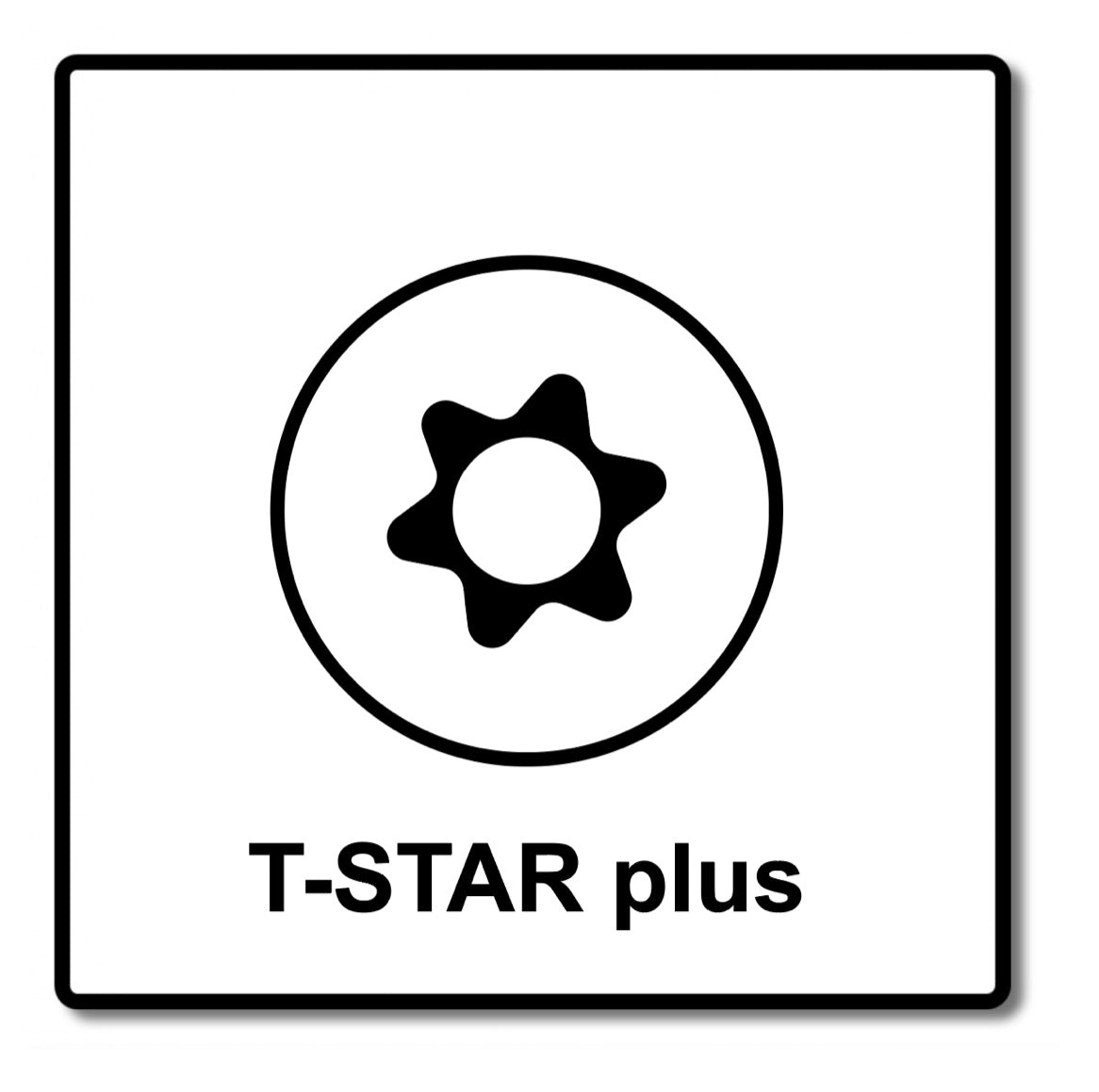

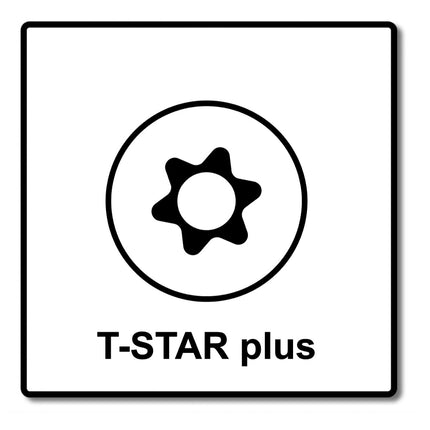

Force application: T-STAR plus
Blade size: Torx 10-30 (see table)

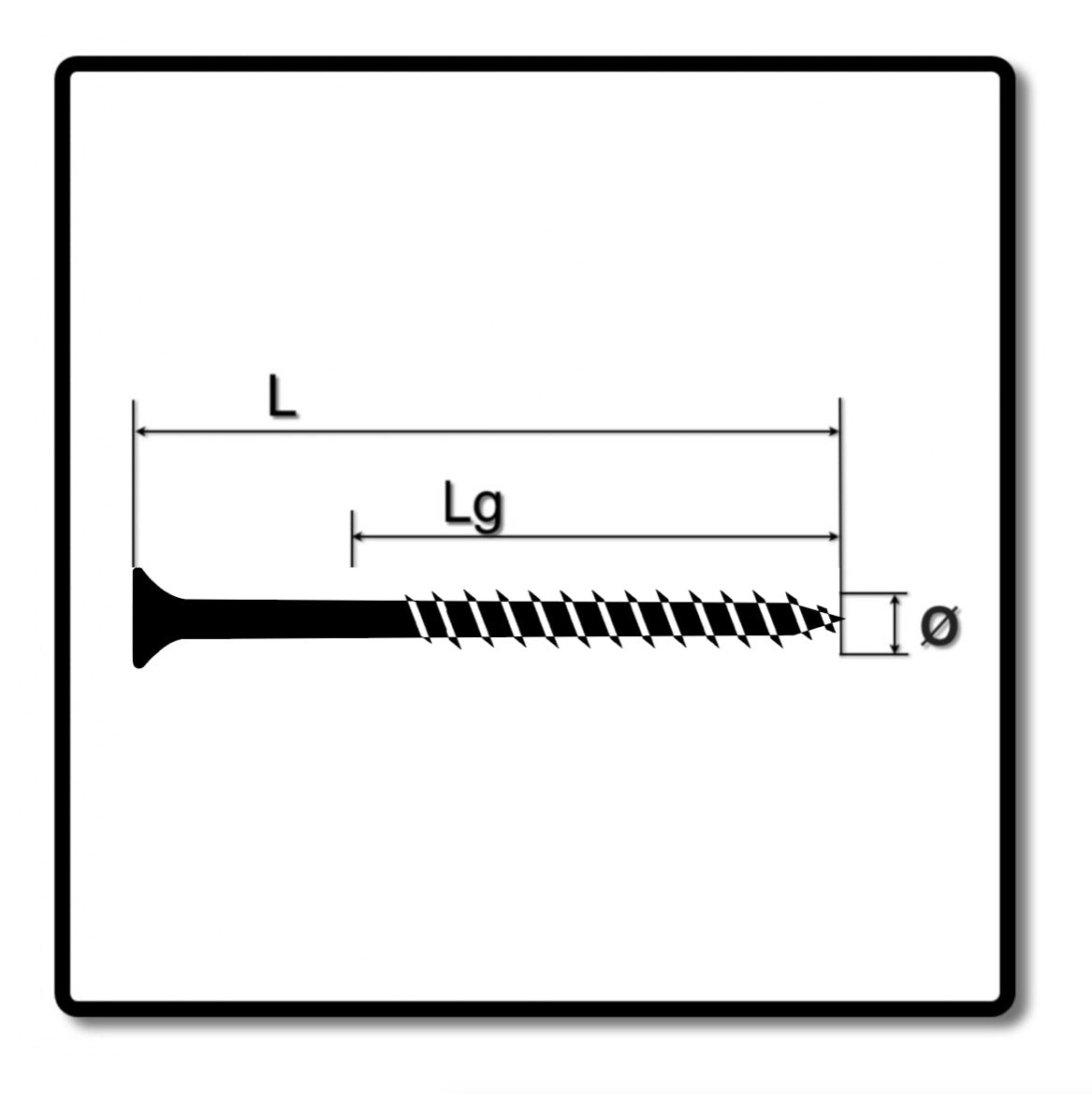

Diameter in mm Length L in mm

Thread length Lg in mm

Threads

Blade size TX
3 30 18 Partial thread 10
3 35 23 Partial thread 10
3 40 23 Partial thread 10
3.5 30 18 Partial thread 15
3.5 35 23 Partial thread 15
3.5 40 23 Partial thread 15
3.5 45 30 Partial thread 15
3.5 50 32 Partial thread 15
4 30 18 Partial thread 20
4 35 23 Partial thread 20
4 40 23 Partial thread 20
4 45 30 Partial thread 20
4 50 32 Partial thread 20
4 60 35 Partial thread 20
4 70 37 Partial thread 20
4 80 37 Partial thread 20
4.5 30 17 Partial thread 20
4.5 35 25 Partial thread 20
4.5 40 25 Partial thread 20
4.5 45 30 Partial thread 20
4.5 50 32 Partial thread 20
4.5 60 37 Partial thread 20
4.5 70 42 Partial thread 20
4.5 80 47 Partial thread 20
5 30 17 Partial thread 20
5 35 25 Partial thread 20
5 40 27 Partial thread 20
5 45 30 Partial thread 20
5 50 32 Partial thread 20
5 60 37 Partial thread 20
5 70 41 Partial thread 20
5 80 46 Partial thread 20
5 90 61 Partial thread 20
5 100 61 Partial thread 20
5 120 69 Partial thread 20
6 40 24 Partial thread 30
6 50 32 Partial thread 30
6 60 37 Partial thread 30
6 70 41 Partial thread 30
6 80 46 Partial thread 30
6 90 61 Partial thread 30
6 100 61 Partial thread 30
6 110 68 Partial thread 30
6 120 68 Partial thread 30
6 130 68 Partial thread 30
6 140 68 Partial thread 30
6 150 68 Partial thread 30
6 160 65 Partial thread 30
6 180 65 Partial thread 30
6 200 65 Partial thread 30
6 220 65 Partial thread 30
6 240 65 Partial thread 30
6 260 65 Partial thread 30
6 280 65 Partial thread 30
6 300 65 Partial thread 30

Read more

Product form

SPAX Universal Screw 5.0 x 100mm - TORX T-STAR plus T20 - WIROX - Countersunk head - Partial thread - 4Cut-point 200 pcs. (0191010501005)

  • Vendor SPAX
  • condition  New
  • Unzufrieden? 100 Tage kostenfreie Retoure
€30,41
incl. VAT, plus shipping

As a member you will receive [points_amount]

    • American Express
    • Apple Pay
    • Google Pay
    • PayPal
    • Visa
    • Klarna
    • Mastercard

    Smarte Produktberatung


    • Responsible Person for the EU (GPSR) EU-based economic operator that ensures the product complies with the necessary regulations.
      • info@spax.com
      • +4952454480
      • Germany
      • 58256 Ennepetal
      • Kölner Straße 71 - 77
      • SPAX International GmbH & Co. KG
