Scope of Delivery:
- Torque spanner 730/2 Quick 4 - 20 Nm
- incl. calibration certificate in accordance with DIN EN ISO 6789-2:2017 and operating instructions Supplied in transparent plastic tube
Product Description:

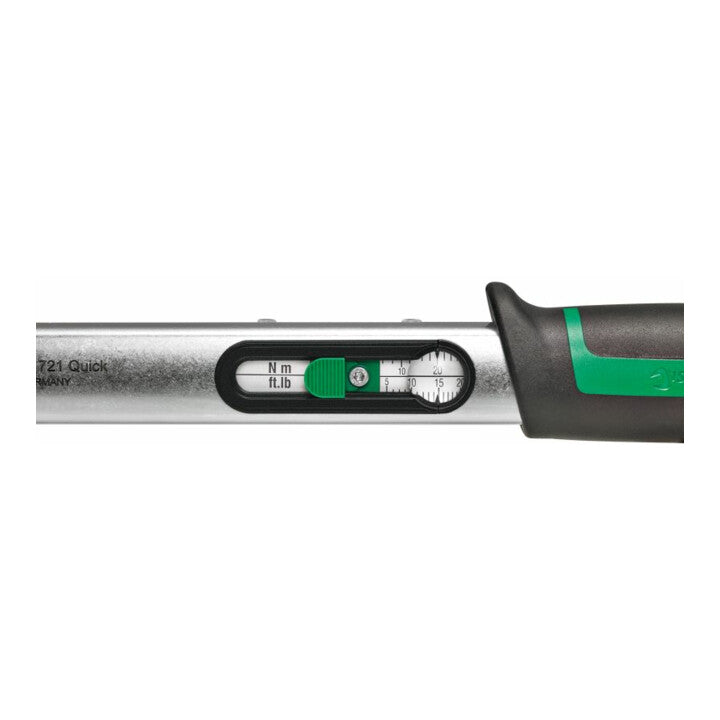

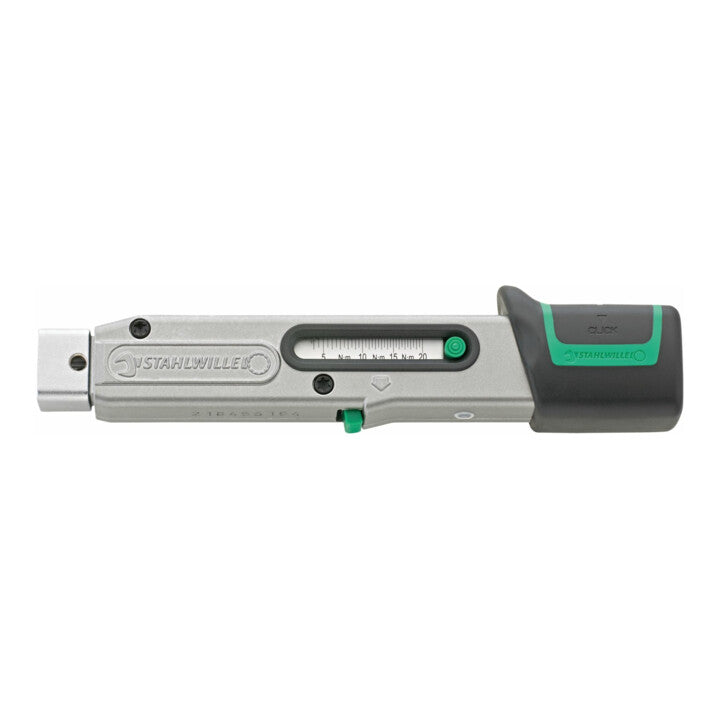

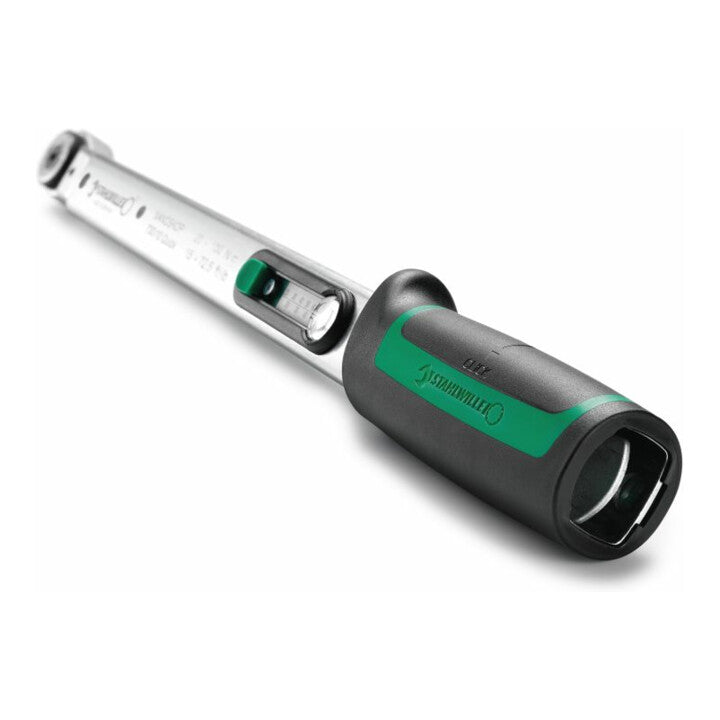

with holder for insertion tools - for controlled right-hand and left-hand tightening - releasing - double stop signal - left-hand tightening by turning the insertion tools round - QuickRelease safety lock - quick adjustment using easy-to-operate clamping lever in the handle - accuracy ± 4 % tolerance of the set value - special feature: no need to reset to "0", as the measuring element is only loaded during the tightening process - further loading after release or loads against the direction of operation, e.g. in the case of tight screws, do not affect the release mechanism, which is therefore protected from damage.Further load after triggering or loads against the functional direction, e.g. with tightened screws, do not affect the trigger mechanism, which is thus protected against damage
Technical Data:

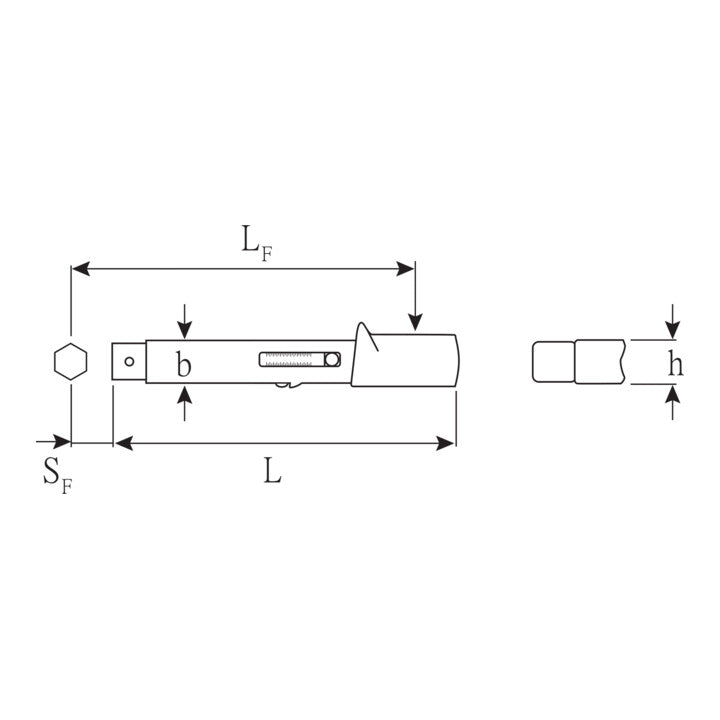

- Sk: 17.5mm
- Lk: 157.2mm
- Certificate: yes
- subject to inspection: yes
For commercial use, please observe the building regulations!
