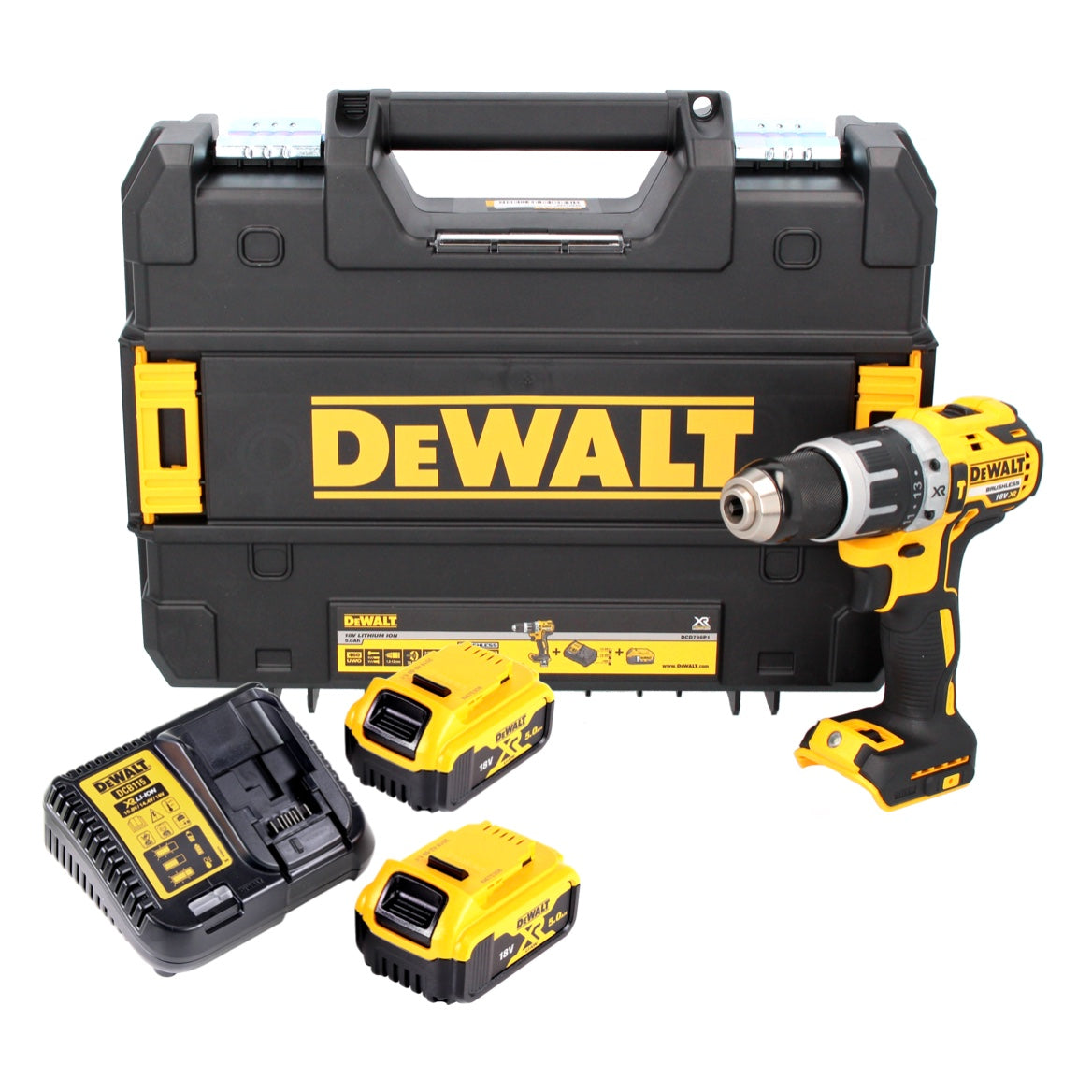

Scope of Delivery:

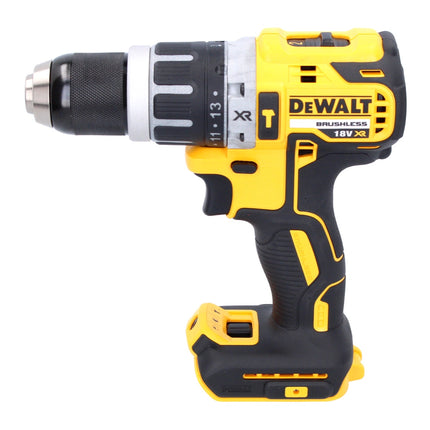

- 1x DeWalt DCD 796 cordless impact drill driver
- 1x magnetic bit holder
- 1x belt hook

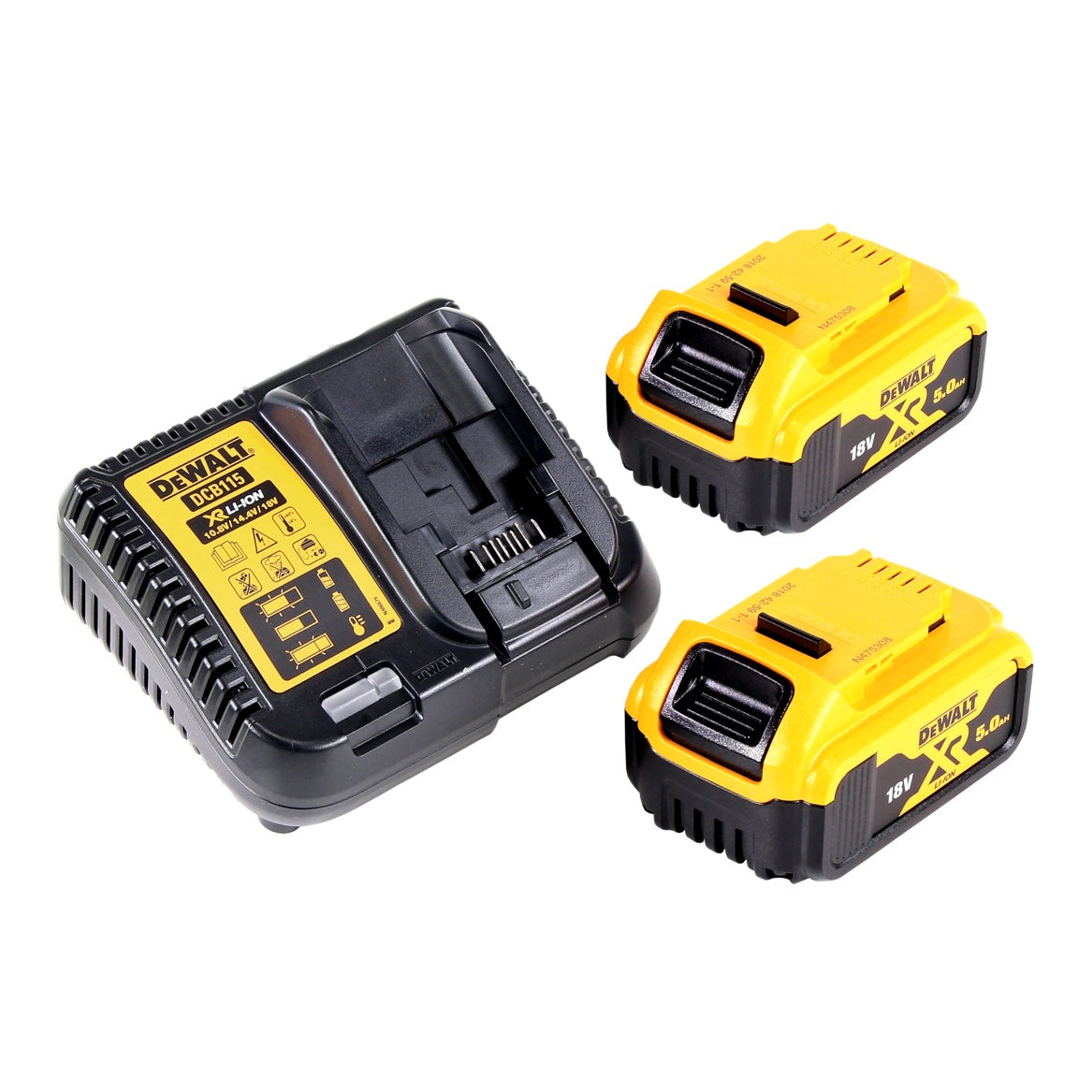

- 2x DeWalt DCB 184 18 V 5.0 Ah battery
- 1x DeWalt DCB charger

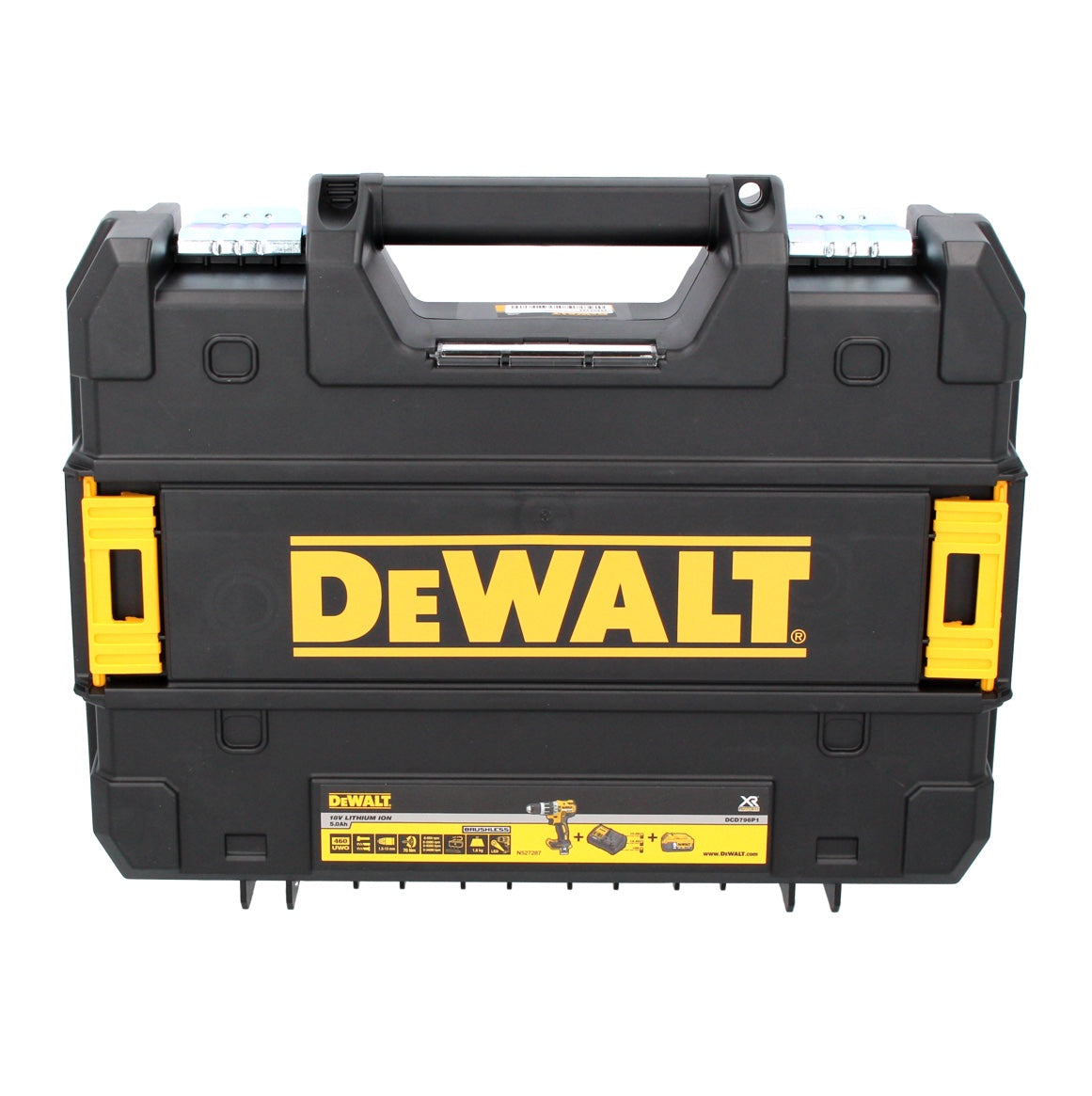

- 1x DeWalt TSTAK case
Product Description:
With its powerful high-performance motor, the cordless impact drill ensures comfortable working even with the heaviest applications. The brushless motor works without carbon brushes and is therefore completely wear-free. This significantly increases efficiency and the battery needs to be charged less often. The elegantly coordinated 2-speed full metal gearbox makes efficient work even easier. A selectable impact mechanism enables heavy-duty drilling work in stone and masonry. The impact drill driver sits comfortably in the hand thanks to its compact and well-balanced design. The rubberised and ergonomically designed handle also ensures safety and comfort. Another brand new feature is the built-in innovative 3-stage LED, which now impresses with a light intensity of 77 lumens and an optimally aligned light cone. The safety electronics enable problem-free long-term use, whereby the battery temperature, current drain and discharge protection are constantly monitored. The robust Li-Ion slide battery offers effective protection against overloading, overheating and deep discharge thanks to special electronics. It fits all XR machines in the corresponding volt class. The quick charger is suitable for all DeWalt XR sliding batteries from 10.8-18 V. The 2-stage charging process ensures a long battery life with maximum storage capacity. The charging status is displayed via LEDs in the charger. The set comes in a practical DeWalt case. With its 3 mm thick walls and bi-metal comfort handle, the case is robust yet easy to transport.
Technical Data:
- Voltage: 18 V
- Max. Torque 2nd gear (soft): 27 Nm
- Max. Torque 1st gear (hard): 70 Nm
- Motor product type: brushless
- Drill chuck clamping width: 1.5 - 13 mm
- Idle speed 1st gear: 0 - 550 rpm
- Idle speed 2nd gear: 0 - 2000 rpm
- Idle stroke rate 1st gear: 0 - 9350 strokes/min
- Idle speed 2nd gear: 0 - 34000 blows/min
- Maximum drilling capacity (wood): 40 mm
- Maximum drilling capacity (metal): 13 mm
- Maximum drilling capacity (masonry): 13 mm
- Weight (without battery): 1250 g
- L x W x H: 190 x 67 x 203 mm
- For commercial use, please observe the building regulations!
